Building and deploying configuration templates via Control Hub

Abstract

One of the easiest and most effective ways to deploy a series of configuration changes to RoomOS devices is through Control Hub default configuration templates. In this lab, we will explore deploying configurations using both device-based and default organization-based templates. In this lab we are going to create a template to set the volume of you device and enable macros for the Macro deployment lab.

Tip

Default Configuration Templates are hierarchical. Configurations set on location and device levels override organization level device configurations.

If one of your devices doesn't support a specific value, you can't select that value on the organization or location level, even if all other devices support that value. This limitation also applies if one of the devices is running a software version that doesn't support a selected value. This doesn't impact configuring individual or multiple device, or configuration templates.

dep-1.2 Lessons

dep-1.2.1 Login to control hub with your lab admin credentials

dep-1.2.2 Select Management>Devices

Devices

dep-1.2.3 Select Templates

Templates

dep-1.2.4 Select Create template

Create Templates

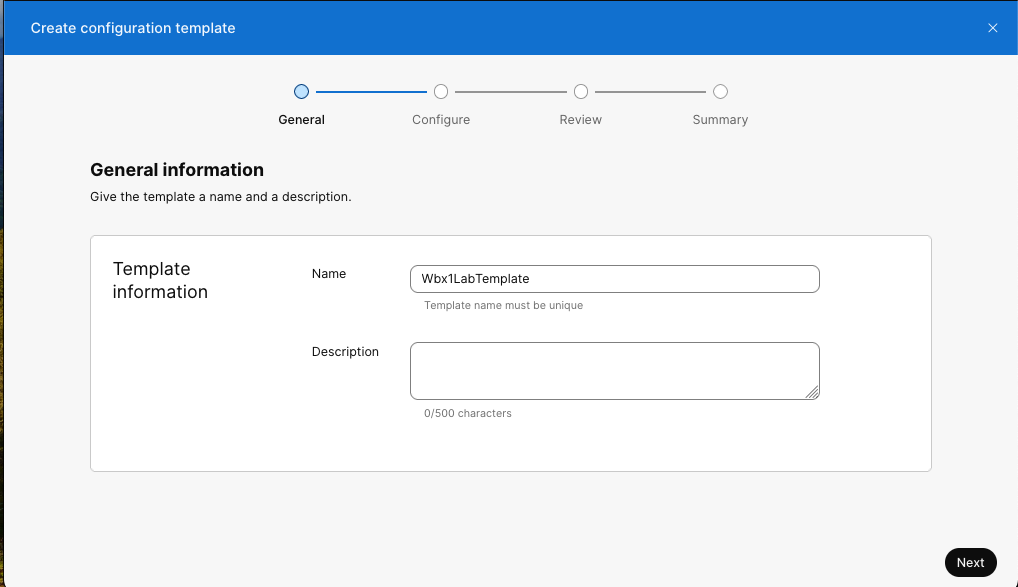

dep-1.2.5 Name your template Wbx1LabTemplate"yourPodNumber" and select Next. For example Wbx1LabTemplate101.

Name Template

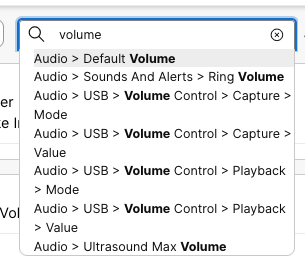

dep-1.2.6 In the Search by configuration name type volume

Search Volume

dep-1.2.7 Select Audio>Default Volume

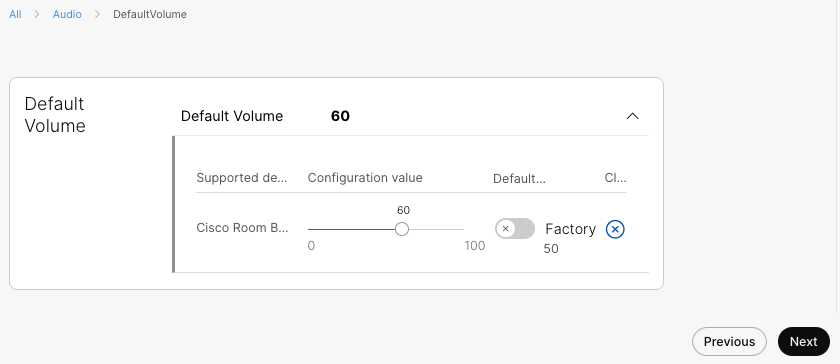

dep-1.2.8 Change the Default Volume to 60

Default Volume

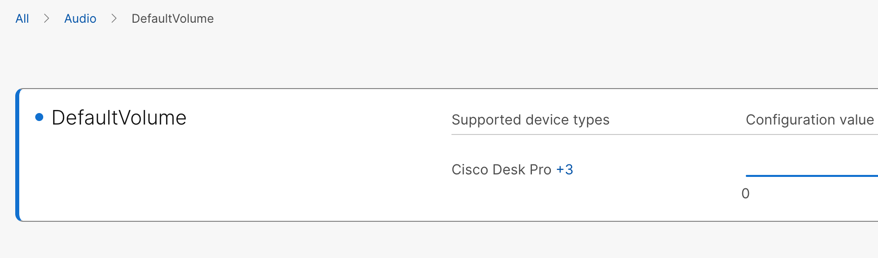

dep-1.2.9 Once you have set Audio to 60 select "All" from the setting breadcrumb links to go back to the configuration search

Setting breadcrumb

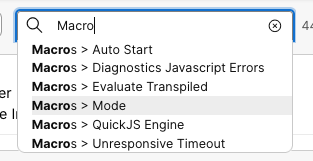

dep-1.2.10 In the Search by configuration name type Macro

Type Macro

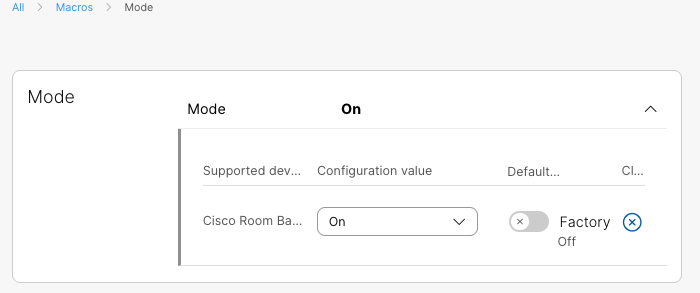

dep-1.2.11 Change the Mode from Off to On and then select Next


dep-1.2.12 Review your new template and select Create

dep-1.2.13 Now that we have created a new template lets apply it to our device. Select Go to Devices

Go To Devices

dep-1.2.14 Select your lab device(Room Bar or Desk Pro)

Select Lab Device

dep-1.2.15 Select Edit

Edit

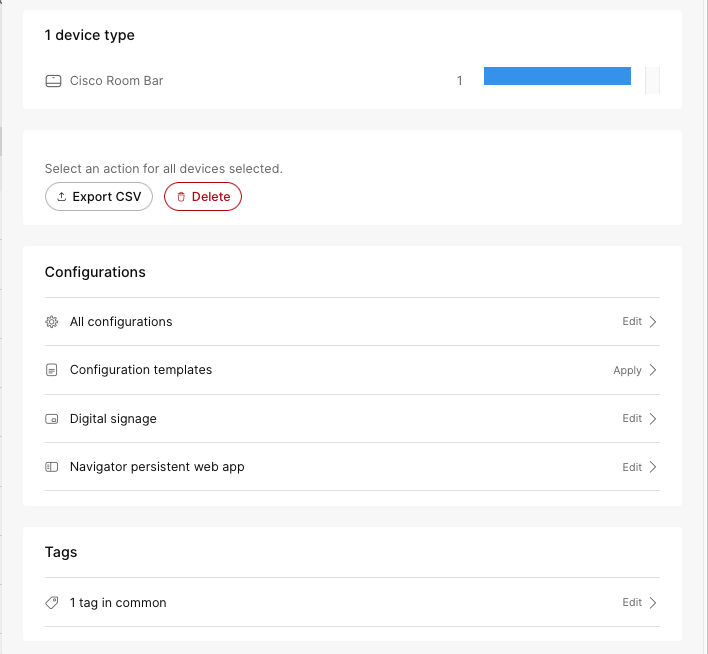

dep-1.2.16 Select Configuration templates

Configuration Templates

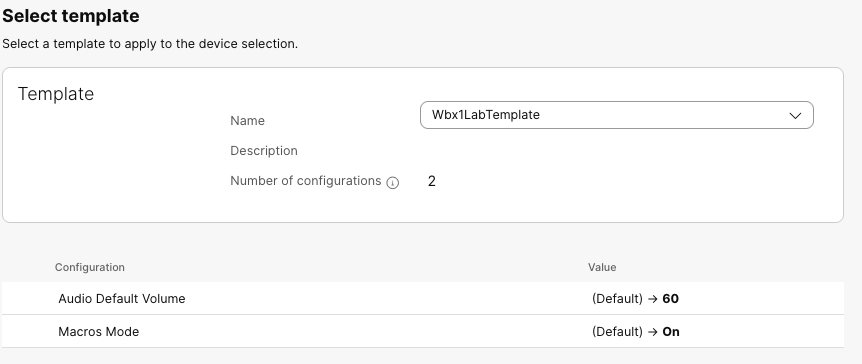

dep-1.2.17 From the template dropdown select the Wbx1LabTemplateXXX and review your settings

Template Selection

dep-1.2.18 Select Next and then Apply

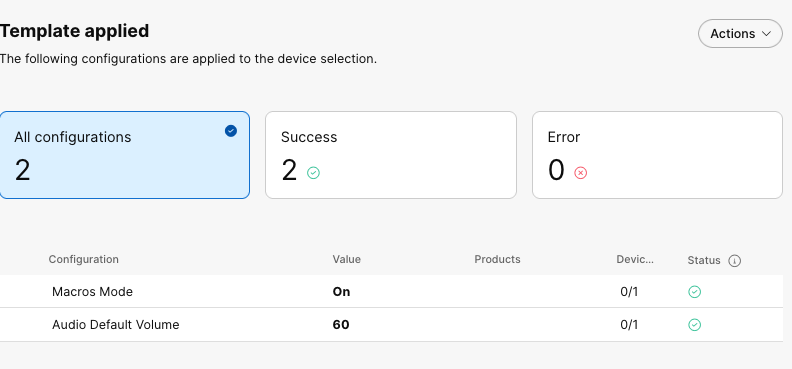

dep-1.2.19 Review the successful deployment of your configurations and select close

Success

Success

Well done. This lab section is now complete.
