Deploy Macro's via Control Hub

Abstract

As it stand right now our new custom button does nothing. We are about to change that by adding a macro that will act on the button being touched.

An increasing number of customers are implementing macros and customizations. Without an efficient deployment solution, it is improbable that customers will extend their custom solutions beyond a handful of endpoints. Fortunately, Control Hub and CE-Deploy offer tools that facilitate this process. Control Hub now has the capability to manage both UI and Macro customizations on individual endpoints, while CE-Deploy can assist with bulk deployment.

dep-1.6 Lab

dep-1.6.1 Login to control hub with your lab admin credentials

dep-1.6.2 First step is to enable Control Hub to manage the devices macros. Select Devices->Settings

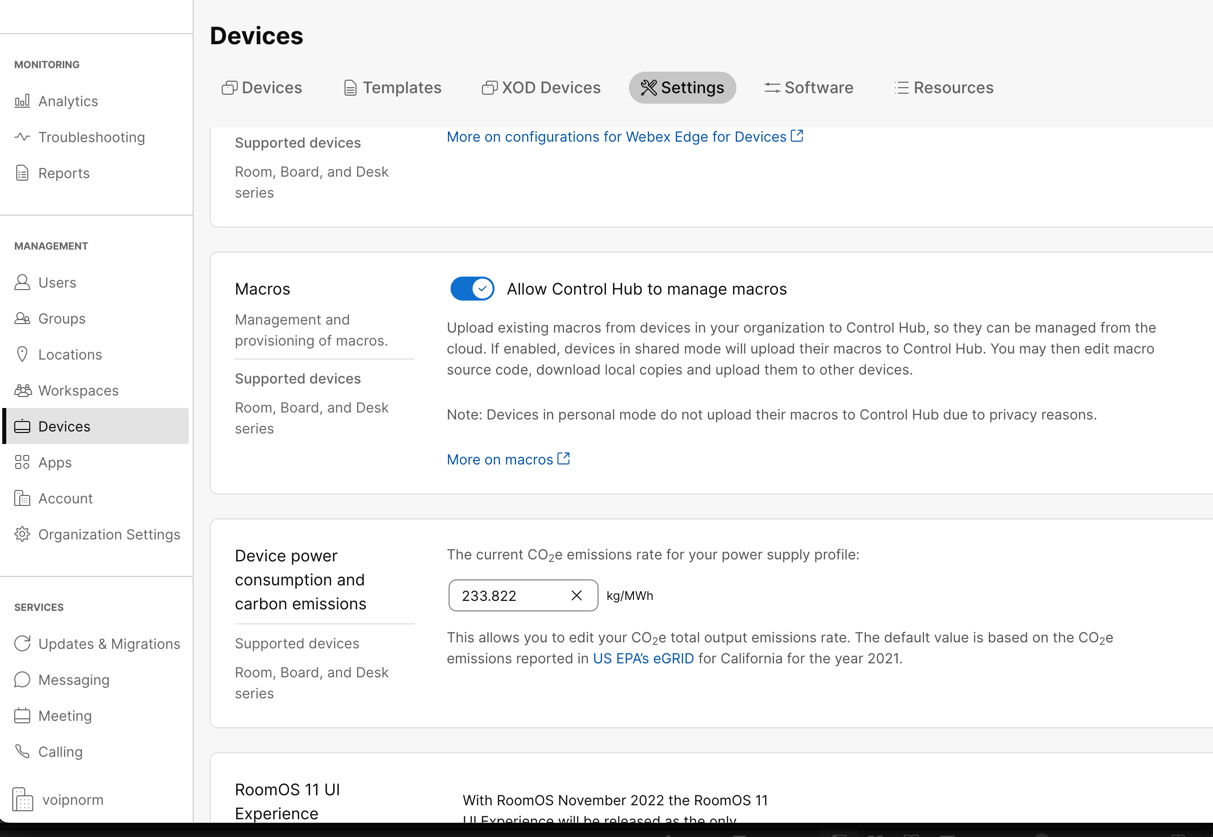

dep-1.6.3 Scroll down to the Macros section and toggle on -> Allow Control Hub to manage macros

Manage Macros

dep-1.6.4 Next is to deploy our first macro to the Lab device

dep-1.6.5 Choose the lab device. Devices -> LabRoomBar/DeskPro(choose your lab device)

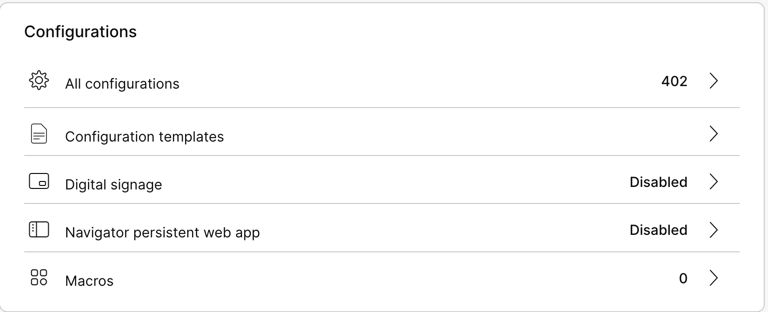

dep-1.6.6 You can now see that there are no macros deployed to this device under Configuration -> Macros

Configuration->Macros

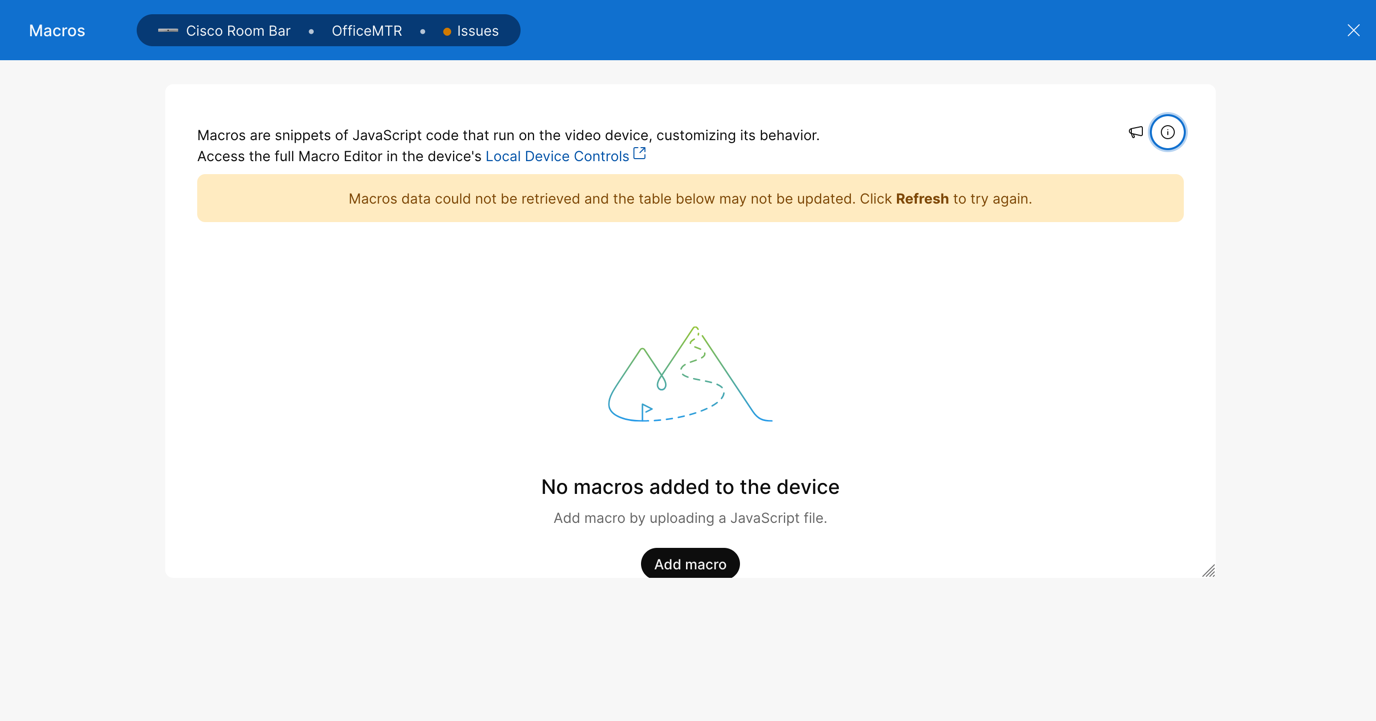

dep-1.6.7 Click on Macros

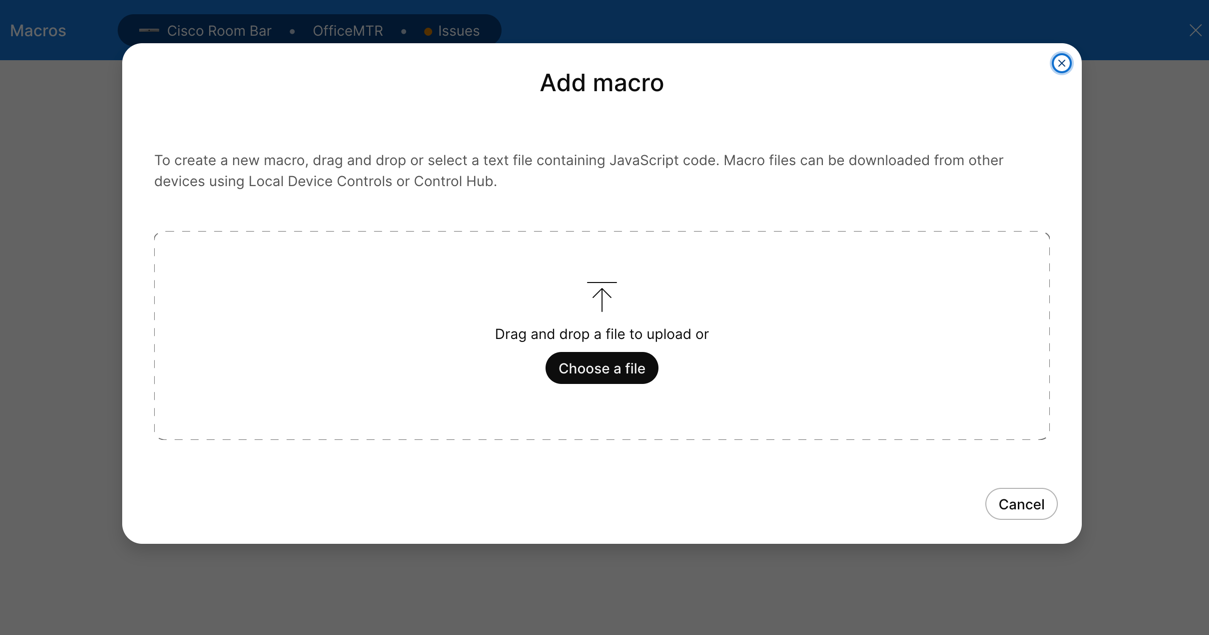

dep-1.6.8 Select Add Macro

Add Macro

dep-1.6.9 Copy the javascript below, paste into a text editor of your choice and save it as a .js file named Post_Meeting_Survey_Macro.js.

Post_Meeting_Survey_Macro.js
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
import xapi from 'xapi';

const star_rating_icon = '✪ ';

xapi.Event.CallDisconnect.on(event => {
    setTimeout(Start_Survey, 1000)
})

let meetingScores = {
    Audio: 4,
    Video: 4,
    Room: 4
}

async function Start_Survey() {
    //Reset widget values
    meetingScores.Audio = 4
    meetingScores.Video = 4
    meetingScores.Room = 4
    await xapi.Command.UserInterface.Extensions.Widget.SetValue({ WidgetId: 'post_overall_text', Value: '- - - - -' });
    await xapi.Command.UserInterface.Extensions.Widget.SetValue({ WidgetId: 'post_Email_text', Value: '[Enter Email] -- >' });

    const buttons = ['post_Audio', 'post_Video', 'post_Room']
    for (let i = 0; i < buttons.length; i++) {
        await xapi.Command.UserInterface.Extensions.Widget.SetValue({ WidgetId: buttons[i], Value: 4 })
    }

    await xapi.Command.UserInterface.Message.Rating.Display({ Title: 'Rate your call?', Text: 'How would you rate your overall call experience?', FeedbackId: 'star_rating', Duration: 120 })
}

function Followup_Survey(rating) {
    xapi.Command.UserInterface.Message.Prompt.Display({
        Title: 'Tell us more of your Experience?',
        Text: `Would you like to take our extended survey so we can learn more about your ${star_rating_icon.repeat(rating)}experience?`,
        FeedbackId: 'extended_survey',
        "Option.1": 'Nah, I\'m Good',
        "Option.2": 'Sure, Happy to Help!'
    })
}

xapi.Event.UserInterface.Message.Rating.Response.on(event => {
    if (event.FeedbackId == 'star_rating') {
        xapi.Command.UserInterface.Extensions.Widget.SetValue({ WidgetId: 'post_overall_text', Value: `${star_rating_icon.repeat(parseInt(event.Rating))}` });
        if (parseInt(event.Rating) < 5) {
            Followup_Survey(parseInt(event.Rating))
        } else {
            xapi.Command.UserInterface.Message.Prompt.Display({ Title: `Awesome 🥳`, Text: 'Thanks for 5 Star Rating!<p>Have a Great Day!', Duration: 15 })
        }
    }

    if (event.FeedbackId == 'star_rating_change') {
        xapi.Command.UserInterface.Extensions.Widget.SetValue({ WidgetId: 'post_overall_text', Value: `${star_rating_icon.repeat(parseInt(event.Rating))}` });
    }
})

xapi.Event.UserInterface.Message.Prompt.Response.on(event => {
    if (event.FeedbackId == 'extended_survey' && event.OptionId == 2) {
        xapi.Command.UserInterface.Extensions.Panel.Open({ PanelId: 'Post_Meeting_Survey' })
    }
})


xapi.Event.UserInterface.Message.TextInput.Response.on(event => {
    if (event.FeedbackId == 'email') {
        xapi.Command.UserInterface.Extensions.Widget.SetValue({ WidgetId: 'post_Email_text', Value: event.Text })
    }
})

xapi.Event.UserInterface.Extensions.Widget.Action.on(event => {
    if (event.Type == 'released') {
        switch (event.WidgetId) {
            case 'post_overall_change':
                xapi.Command.UserInterface.Message.Rating.Display({ Title: 'Rate your call?', Text: 'How would you rate your overall call experience?', FeedbackId: 'star_rating_change', Duration: 120 })
                break;
            case 'post_Audio':
                meetingScores.Audio = parseInt(event.Value)
                break;
            case 'post_Video':
                meetingScores.Video = parseInt(event.Value)
                break;
            case 'post_Room':
                meetingScores.Room = parseInt(event.Value)
                break;
            case 'post_Email_enter':
                xapi.Command.UserInterface.Message.TextInput.Display({ Title: 'Add your Email', Text: '(Optional) By providing your Email, we may follow up with you about your Meeting Room Experience', FeedbackId: 'email', Duration: 120 })
                break;
            case 'post_Submit':
                xapi.Command.UserInterface.Extensions.Panel.Close()
                setTimeout(function () {
                    xapi.Command.UserInterface.Message.Prompt.Display({
                        Title: `Thanks for letting us know!`,
                        Text: `We appreciate your feedback and aim to do better next time<p>Room Score: ${meetingScores.Audio + meetingScores.Video + meetingScores.Room} out of 12`,
                        Duration: 15
                    })
                }, 125)
                break;
        }
    }
})
Return to the add macro browser and Select -> Choose a File and navigate to Post_Meeting_Survey_Macro.js.

Save Macro

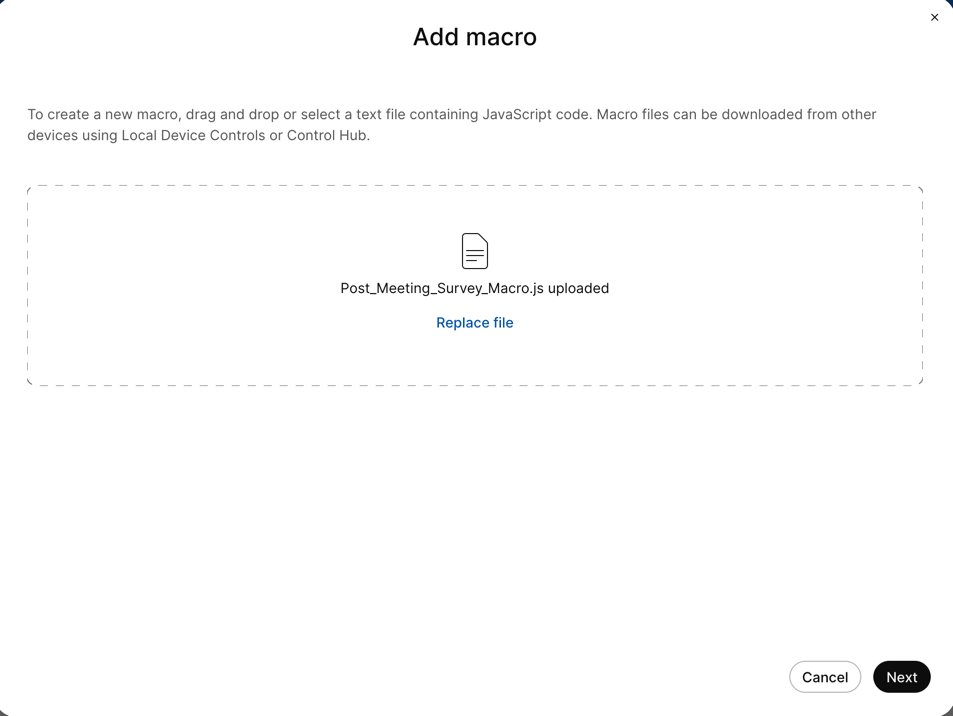

dep-1.6.104.6.10 Click Next

Next

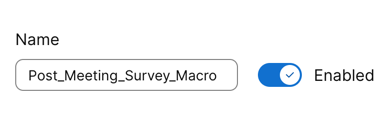

dep-1.6.114.6.11 Ensure that your Macro is enabled

Enable Macro

dep-1.6.124.6.12 Click Save. Then click Save again

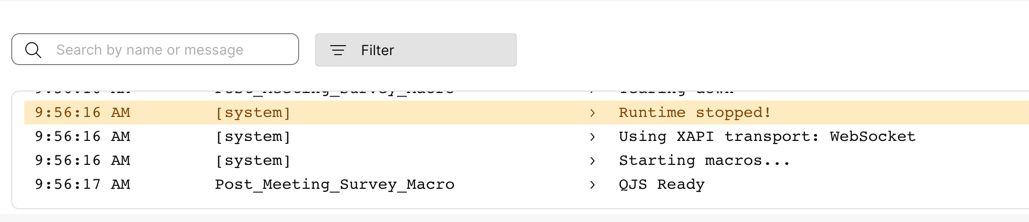

dep-1.6.134.6.13 You should now see in the macro engine logs your macro is loaded without error.

Macro saved

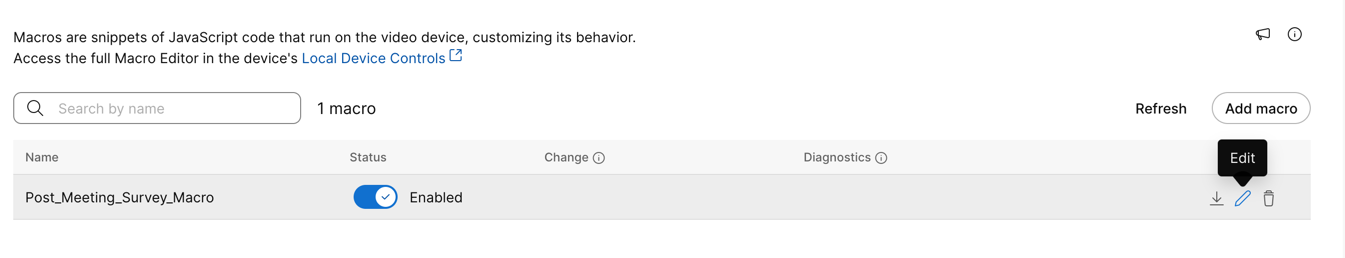

dep-1.6.144.6.14 While still in the Macros lets make a change to our uploaded macro. Click on the edit button.

Edit Macro

dep-1.6.154.6.15 Type the following line to the Macro on line 2.

console.log("Post Survey Macro Loading…..");
Click save

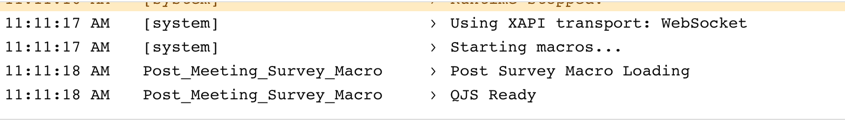

dep-1.6.16 You should now notice in your logs that the console message now appears as the macro is loaded.

Macro Log

Success

Console logging is a great way to debug your macro’s in combination with the macro engine log. To see your new Macro and Extension run try calling another pod and hang up. The Survey will appear after you hang up the call.
