Quick Docs Macro Exercise - Part 1 - Start Simple (section rxe-m1)

Section rxe-m1 Requirements

Note

This lab assumes you have access to a Cisco RoomOS Device that is already setup and ready for use. If your device is not registered and online, please do so before beginning

Additional Lessons

  • It's recommended you have run through Accessing RoomOS xAPI via Macros in Macros rxp-6 at a minimum before proceeding with this Exercise

Hardware

  • A Laptop
  • A Cisco Desk, Board or Room Series Device running the most recent On Premise or Cloud Stable software
    • A Touch Controller is required when working on a Room Series Device. Either Room navigator or 3rd part touch display
    • Preferred Device: Cisco Desk Pro
  • A minimum of 1 camera (Either Integrated or External)

Software

  • Laptop
    • Recommended Browser: Chrome or Firefox
    • Recommended Terminal Software:
      • Command Prompt (Windows)
      • Terminal (MAC)
      • Putty (Windows)
      • Termius (Windows, MAC, Linux)
  • RoomOS Device
    • Either the current On Premise or Cloud Stable release

Network

  • Local Access to the RoomOS Device over port 80/443
  • General access to the Internet

Part 1 Solution Outline

In section rxe-m1 of this lab, we'll build a Macro that will allow folks to either View a Document or Scan a QR code to take the document with them on your device.

We'll review how to:

  • Build a UserInterface
  • Map those UserInterface elements to actions driven by an accompanying macro
  • Integrate a 3rd party QR code service, leveraging APIs external to the Codec

Start with the UserInterface (rxe-m1.1)

Lesson: Create a New Panel Button (rxe-m1.1.1)

Starting with the UserInterface elements helps use visualize our solution and determine how to then structure our Macro

Save Extension Button

UI Save Button

  • Task:

    • Create a new Panel
    • Assign this panel's id as:
      wx1_QrDocs
    • Assign this panel's name as:
      Room Docs
    • Assign this panel's location as: HomeScreenAndCallControls
    • Pick any icon you wish
    • Pick any Panel Color you wish
    • Save your Extension
      • You should be able to see your Panel on the Codec's Touch Interface
View Successful UI Execution

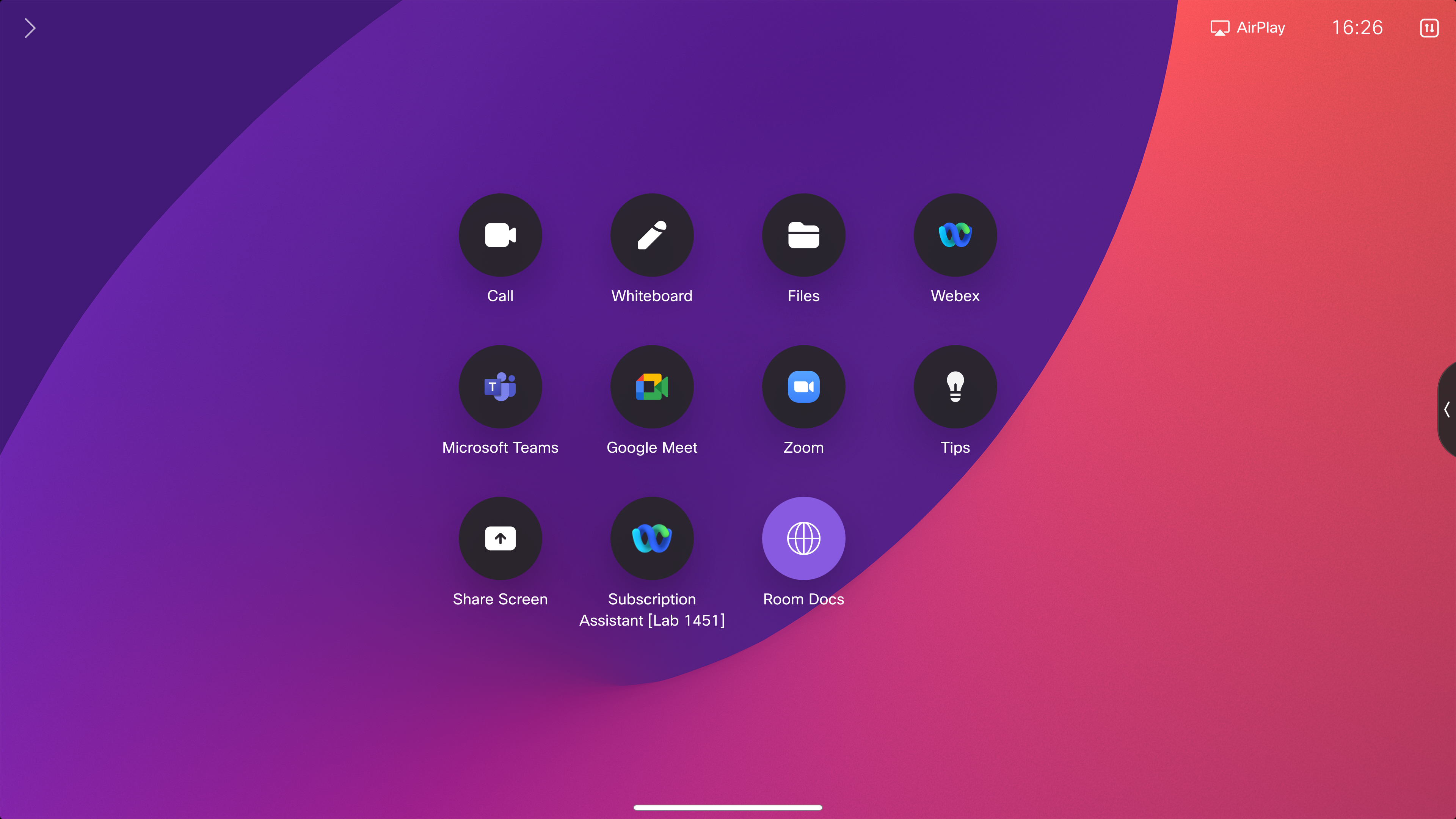

Room Docs OSD 3.2.2

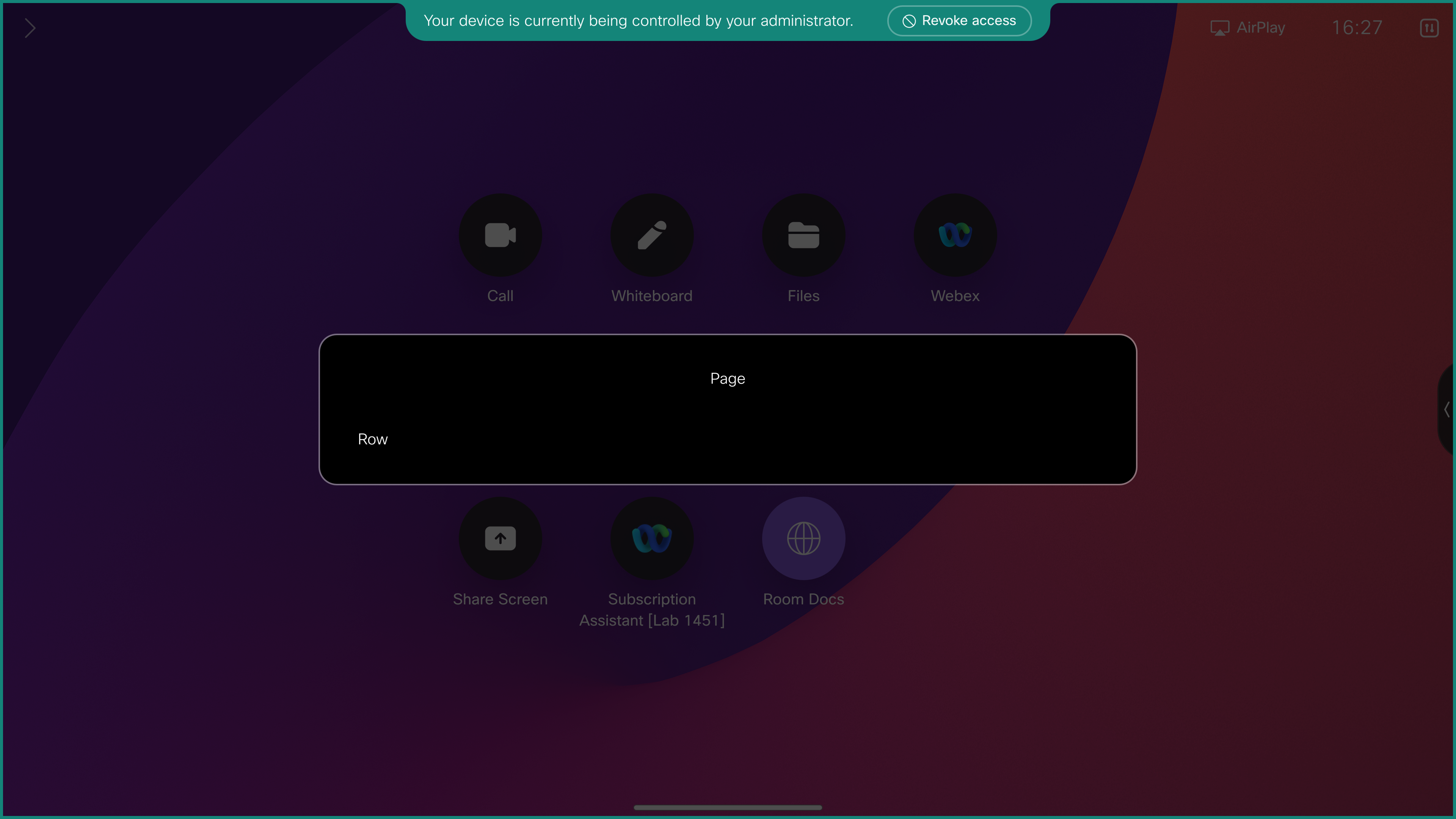

Room Docs Open 3.2.2

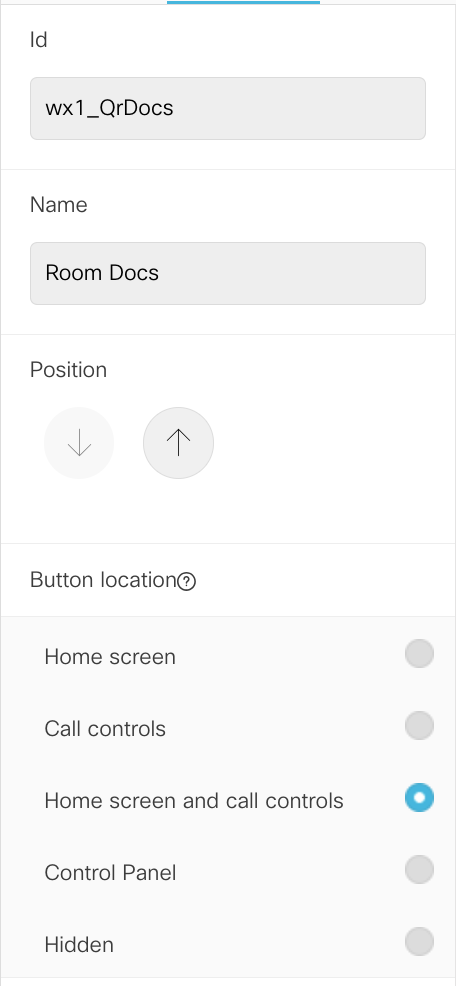

UI Properties 3.2.2

Challenge: Rename the Page to Room Docs
  • Rename the Page Name from Page to:
    Room Docs
  • Assign the PageId as:
    wx1_QrDocs~RoomDocs
Lesson: Add Solution Widgets (rxe-m1.1.2)

Save Extension Button

UI Save Button

  • Task:

    • Rename Row 1 to:
      Lab 1451
      • Add 2 Buttons to this row
        • Set the following properties for the left button
          • Rename Button Text Button to:
            Open Site
          • Assign WidgetId:
            wx1_QrDocs~OpenSite~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/
          • Set the Widget Width to 2
        • Set the following properties for the Right button
          • Rename Button Text Button to:
            Open QrCode 🔳
          • Assign WidgetId:
            wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/
          • Set the Widget Width to 2
    • Add a second row, with the name:
      Reimagine Workspaces
      • Add 2 Buttons to this row
        • Set the following properties for the left button
          • Rename Button Text Button to:
            Open Site
          • Assign WidgetId:
            wx1_QrDocs~OpenSite~https://www.webex.com/us/en/workspaces.html
          • Set the Widget Width to 2
        • Set the following properties for the Right button
          • Rename Button Text Button to:
            Open QrCode 🔳
          • Assign WidgetId:
            wx1_QrDocs~OpenQrCode~https://www.webex.com/us/en/workspaces.html
          • Set the Widget Width to 2
    • Save your Extension
      • You should be able to see your Panel on the Codec's Touch Interface

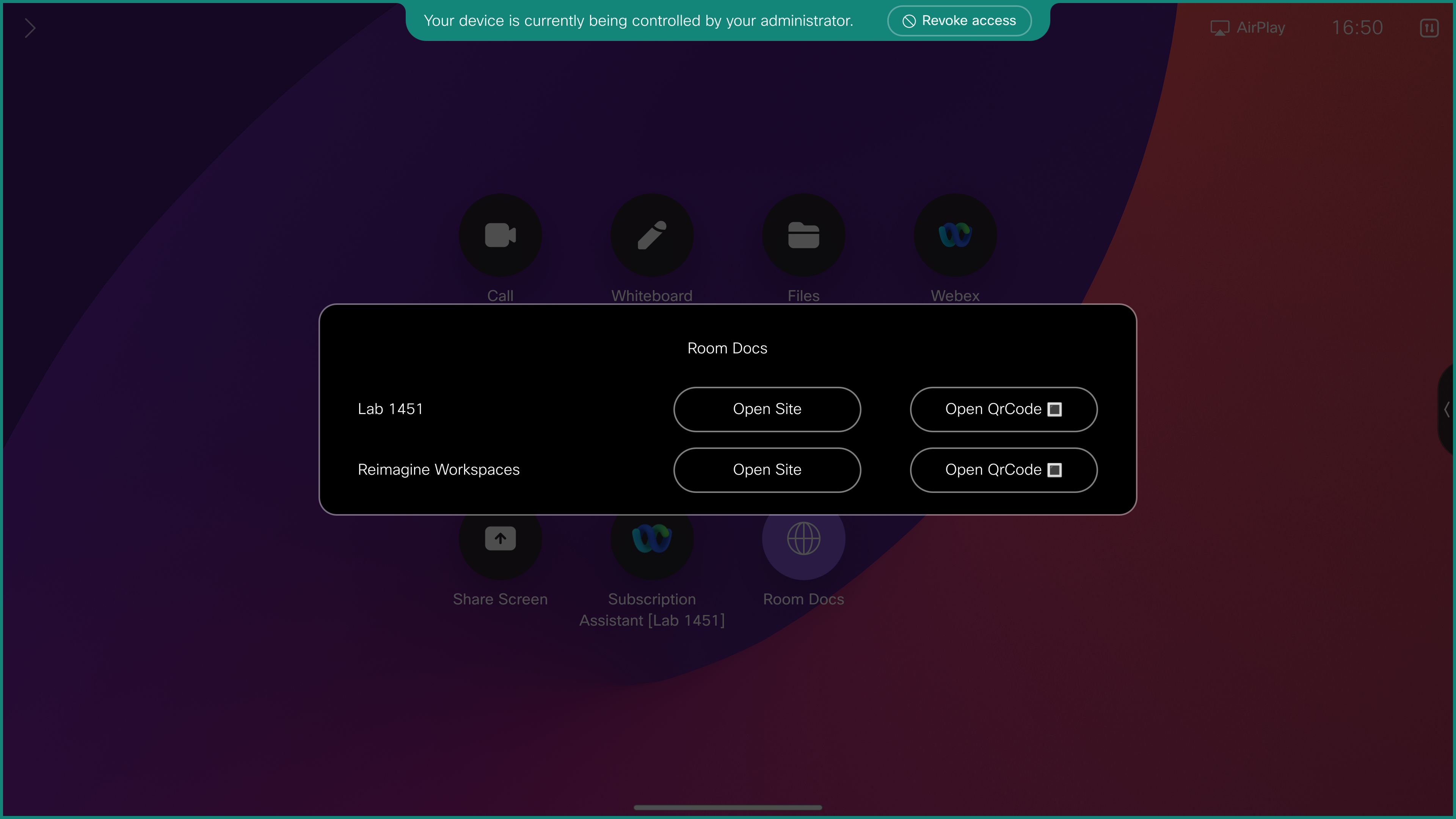

View Successful UI Execution

Room Docs Open 3.2.2

Add your Organization's HomePage 😃

You may have noticed the WidgetIds have a URL as apart of the ID

We'll be using this in the Macro we write later, to open this page

Here is how we're structuring WidgetIds for this lab

Example

  • WidgetId Structure: appName~Action~URL

    • appName: wx1_QrDocs -> Let's us associate this interface with our Macro Script and helps make the WidgetId more unique
    • action: OpenSite or OpenQrCode -> This will tell use how we want to open our URL
    • URL: This is the URL we want to open, or build a QR Code for
    • String Separator: ~ -> Using a unique character, such as this tilde, can help use split up and access this information later in the Macro
Is this WidgetId format mandatory?

Widget Ids are strings. This is just one of many examples of how you can structure your widgets. It's not required to structure them like this, with the exception of this lab.

So long as they are unique in your customization, you should be good to go

  • Task:
    • Create a 3rd Row
    • Add in an Open Site button and an Open QrCode 🔳 with your Organizations Home Page as the Url
    • Be sure to assign wx1_QrDocs as the appName and the correct action to the button they represent
Hint

OpenSite:

wx1_QrDocs~OpenSite~YOUR_ORG_HOMEPAGE
OpenQrCode:
wx1_QrDocs~OpenQrCode~YOUR_ORG_HOMEPAGE

Create a New Macro and Subscribe (rxe-m1.2)

Abstract

Now that we have our UserInterface in place, we can start to build our solution

We'll be using the Macro Editor for this solution, but know that you can do these very same tasks from any other avenue we explored in Part 2 of this lab

The benefit of Macros, is that they come with every Cisco Codec running Ce9.2 or newer (with the exception of the Sx10). So no need to procure hardware or spin up a service to start building a solution 😃

Lesson: Create a new Macro (rxe-m1.2.1)

If you missed Section 2.6 in part 2 of this lab, please watch this Vidcast

Vidcast: Macro Editor IDE Review

  • Task:

    • Select Create new macro in the Macro Editor
    • Name this macro Room Docs
    • Save and Activate+ the Room Docs Macro
    Review how To

    if NOT already logged into the endpoint, follow these steps

    • Open a Browser and enter your Codec's IP as a URL and hit enter
    • Login with your Username and Password

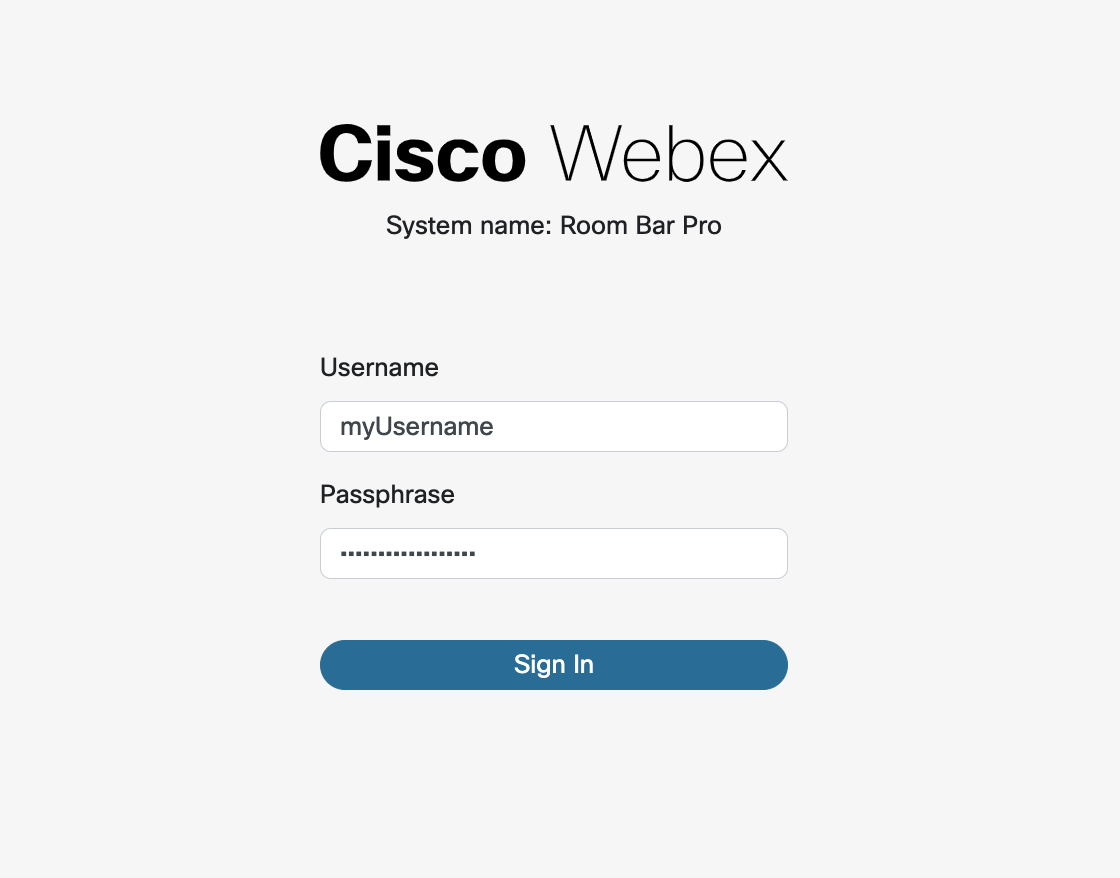

    Device Login
    Device Login Page

    If in the UI Extensions Editor

    • Click on the Device Name in the Top Left hand corner of the UI Extensions Editor to get back to the Device Home Page

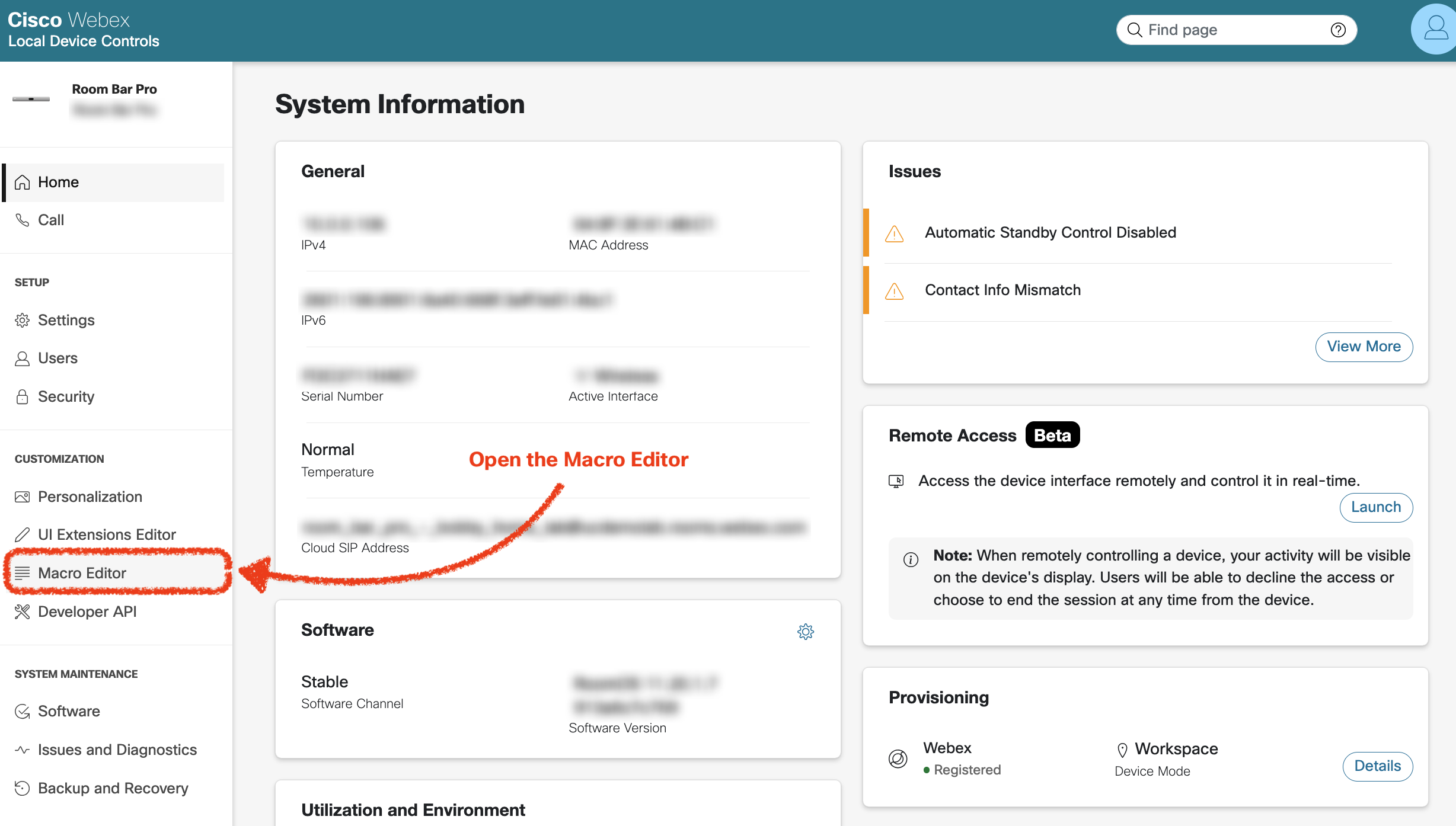

    Device Home
    Device Home Page

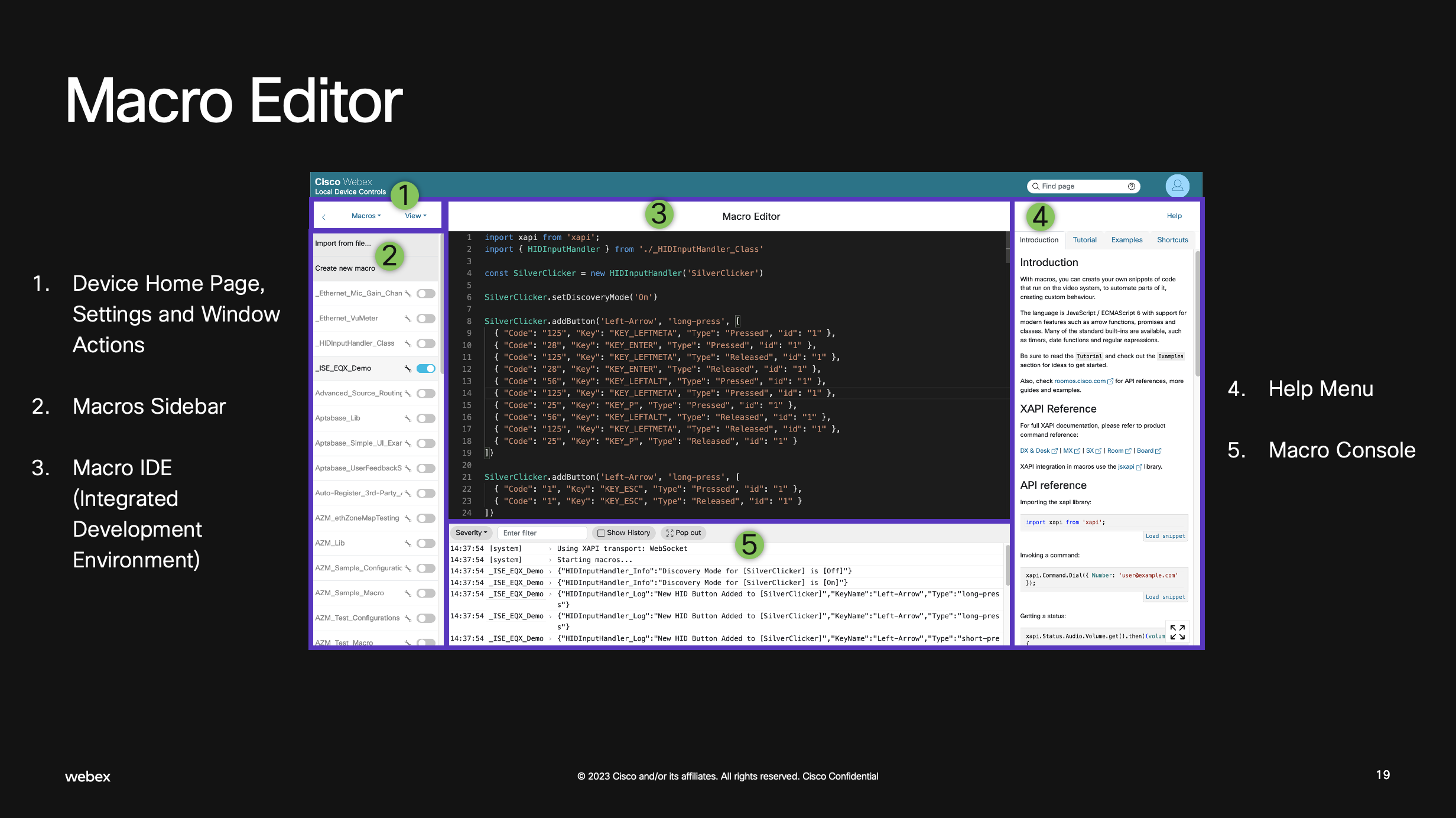

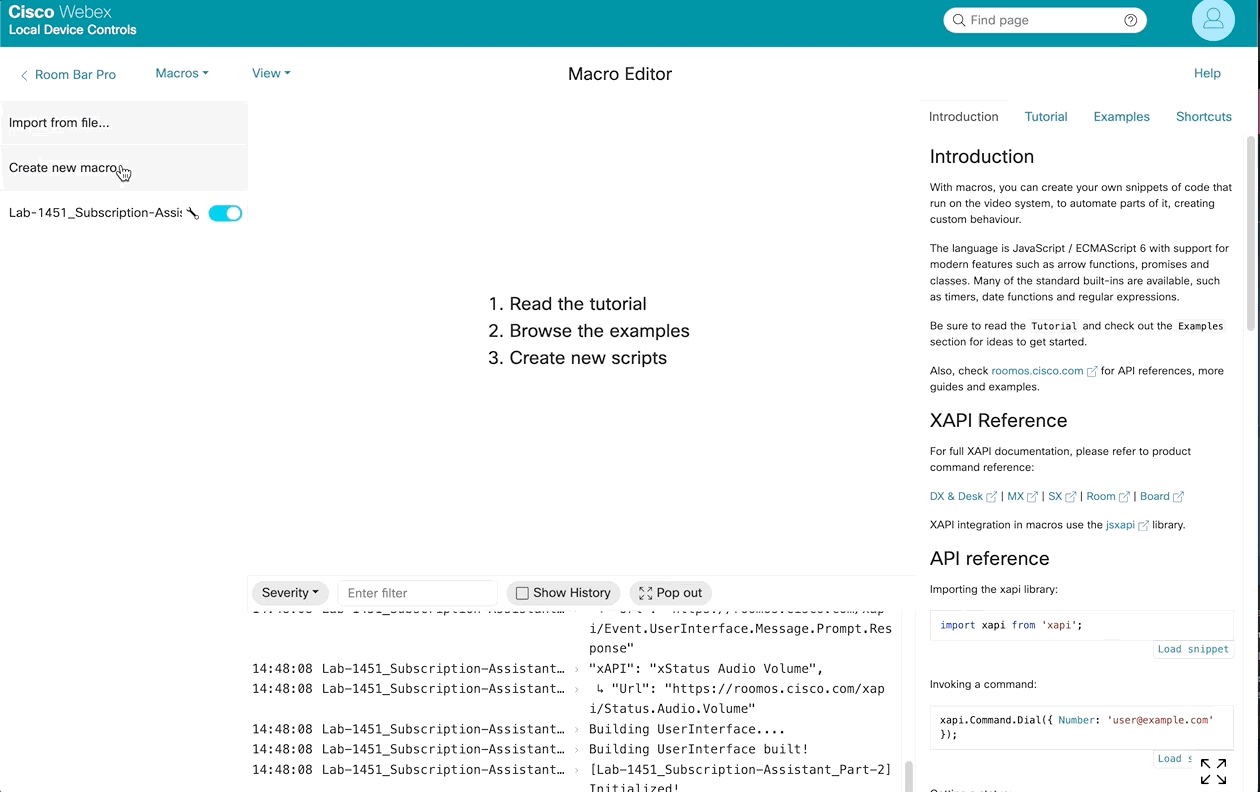

    Macro Editor
    The Macro Editor

    Create, Save and Activate a Macro

    Create, Save and Activate a Macro
    Create, Save and Activate a Macro

Lesson: Subscribing to Widget Actions (rxe-m1.2.2)

  • xAPI: xEvent UserInterface Widget Action

  • Task:

    • Subscribe the xAPI Path above using Macro Syntax

    • Take the Callback information generated by this event, and log it to the Macro Console using console.log()

    • Once complete, Save and Activate the macro (if inactive)

    • Start pressing the Open Site and Open QrCode 🔳 buttons contained within your Room Docs panel

    • Monitor the Macro Console Output
Compare your Macro

Note

It's ok if your macro's structure doesn't match 1:1 with the examples below

As long as they information we access is the same, then format is up to the developers preference

import xapi from 'xapi';

xapi.Event.UserInterface.Extensions.Widget.Action.on(({WidgetId, Type, Value}) => {
  console.log({WidgetId, Type, Value})
})
Compare your Macro Console
Time Macro WidgetId Type Value
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/ pressed
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/ released
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/ clicked
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/ pressed
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/ released
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/ clicked
HH:MM:SS Room Docs wx1_QrDocs~OpenSite~https://www.webex.com/us/en/workspaces.html pressed
HH:MM:SS Room Docs wx1_QrDocs~OpenSite~https://www.webex.com/us/en/workspaces.html released
HH:MM:SS Room Docs wx1_QrDocs~OpenSite~https://www.webex.com/us/en/workspaces.html clicked
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://www.webex.com/us/en/workspaces.html pressed
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://www.webex.com/us/en/workspaces.html released
HH:MM:SS Room Docs wx1_QrDocs~OpenQrCode~https://www.webex.com/us/en/workspaces.html clicked
Why does each Widget click have 3 events fire?

Good Catch 😃! Many widgets offer 1-3 events that will fire based on the conditions of the action

This is important to know, as you may only want an action to happen once, not upwards of 3 times, when building your automation

We can use techniques in ES6 JS to filter out what we're interested in for these scenarios

For reference, here's a list of Widgets and their event payloads

Click on each table below to review each Widget

Gif

Toggle Action
Toggle Action

Key Value
WidgetId Assigned by the Developer on Widget Instantiation
Type changed
Value on or off

Gif

Slider Action
Slider Action

Key Value
WidgetId Assigned by the Developer on Widget Instantiation
Type pressed, released, or changed
Value Integer between 0 and 255

Gif

Button Action
Button Action

Key Value
WidgetId Assigned by the Developer on Widget Instantiation
Type pressed, released, or clicked
Value N/A

Gif

Group Button Action
Group Button Action

Key Value
WidgetId Assigned by the Developer on Widget Instantiation
Type pressed, released
Value Assigned by the Developer on Widget Instantiation

Gif

Icon Button Icons
Icon Button Icons

Key Value
WidgetId Assigned by the Developer on Widget Instantiation
Type pressed, released, or clicked
Value N/A

Gif

Spinner Icons
Spinner Icons

Key Value
WidgetId Assigned by the Developer on Widget Instantiation
Type pressed, released, or clicked
Value increment or decrement

Does not fire events

Gif

Directional Pad Action
Directional Pad Action

Key Value
WidgetId Assigned by the Developer on Widget Instantiation
Type pressed, released, or clicked
Value up, down, left, right, center

Does not fire events

Lesson: Refine and Filter our Widget information (rxe-m1.2.3)

Info

As you saw in the previous example Widgets can produce 1-3 events to fire whenever you interact with them

It's best to filter this down to the specific even in question

In macros, we can use the tools offered to us by ES6 JS to complete this task

  • xAPI: xEvent UserInterface Widget Action

  • Task:

    • Replace your original console.log with console.debug
      • This will hide this log in the debug group, we can use this later to check our work
    • Use an if ES6 JS statement to filter our WidgetId Event and confirm the widget belongs to our customization
      • This can be done using ES6 JS's .includes('wx1_QrDocs') prototype
    • Use an if ES6 JS statement to filter our Type event and check to see if it matches released
      • This can be done using ES6 JS's Equality == or Strict Equality === operators
      • We won't be using pressed or clicked
    • Use the .split('~') ES6 JS prototype to split out our app, action and url and assign them to objects using our tilde as the string separator
    • Use a switch ES6 JS statement to handle OpenSite and OpenQrCode actions respectively
      • Place console.log(action, url) below the OpenSite case and console.warn(action, url) below the OpenQrCode case

    Click the Tabs Below to see how each Task above is implemented

    import xapi from 'xapi';

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value }); // <-- Changed to Debug
  if (WidgetId.includes(`wx1_QrDocs`)) {    // <-- Asks if WidgetIn includes wx1_QrDocs

  };
});
    Why Use includes()?

    We structured all of our WidgetIds with the same prefix wx1_QrDocs

    This helps make our Widget References Unique, but also helps us ignore any widgets that don't include wx1_QrDocs

    If a solution were to have the same widgetId, then that 1 widget could have solutions fire from 2 different integration sources. In some cases, that's fine or even necessary, but it's best practice to make your widgets as unique to your solution as possible and for your solution to ignore any other chatter on the Codec

    import xapi from 'xapi';

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') { // <-- Asked if the Type is equal to released

    };
  };
});


    import xapi from 'xapi';

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`); // <-- Extract our App, Action and Url and assigned them to the object they represent
    };
  };
});
    Why .split() our widget?

    This gives use new objects to work with. The benefit of how we implemented our WidgetId structure[app~action~url] allows us to make our code a bit more flexible

    Now, if you wanted to add more sites, all you would need to do is add more buttons to the UI Extension following the WidgetId structure we set, and your Macro Code doesn't need to be modified to allow it to work

    import xapi from 'xapi';

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);

      switch (action) {   // <-- Switch what code we run when:
        case 'OpenSite':  // <-- The OpenSite action comes in
          console.log(action, url);
          break;
        case 'OpenQrCode':// <-- The OpenQrCode action comes in
          console.warn(action, url);
          break;
        default:          // <-- The When an Unknown action comes in
          console.error(`Unknown Action Fired: [${action}]`)
          break;
      };
    };
  };
});
    Why not use if statement instead of switch

    If statements could work, but as you use more and more if statements, the code becomes a bit harder to read

    Using switches, if we wanted to define another action, it would be as simple as adding another case and adding codec below it to define how that case runs

    Both do the same job, some implementations are easier on the eyes than others

    • Once complete, Save and Activate the macro (if inactive)

    • Start pressing the Open Site and Open QrCode 🔳 buttons contained within your Room Docs panel

    • Monitor the Macro Console Output
Compare your Macro
import xapi from 'xapi';

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);

      switch (action) {
        case 'OpenSite':
          console.log(action, url);
          break;
        case 'OpenQrCode':
          console.warn(action, url);
          break;
        default:
          console.error(`Unknown Action Fired: [${action}]`)
          break;
      };
    };
  };
});
Compare your Macro Console
Time Macro Logs
HH:MM:SS Room Docs QJS Ready
HH:MM:SS Room Docs OpenQrCode https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/
HH:MM:SS Room Docs OpenSite https://www.webex.com/us/en/workspaces.html
HH:MM:SS Room Docs OpenSite https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/
HH:MM:SS Room Docs OpenQrCode https://www.webex.com/us/en/workspaces.html

Define and finalize solution (rxe-m1.3)

Info

Now that we can access the data from our widgets as we expect, we can start to implement the function of opening a Web Page on out touch interface

Lesson: Defining our OpenSite function (rxe-m1.3.1)

Important

We'll be using the WebView Display API

If you're working on a Desk or Board Series Endpoint use the parameter Target: OSD in the following lessons

If you're working on a Room Series Endpoint with a Room Navigator attached use the parameter Target: Controller in the following lessons

Note

  • Room Series with 3rd Party Touch can use OSD as a Target value
  • Room Series with Touch 10 CAN NOT use the Controller Target Value
    • If you have no touch display or room Navigator, you will need to build a WebView Close Panel
    • This is not covered in this lab

  • xAPI: xCommand UserInterface WebView Display

  • Task:

    • Declare a new async function called openSite with the following function parameters
      • url
      • target = 'OSD'
        • Note: change OSD to Controller if a Room Navigator touch panel is available
    • Within this function:
      • Structure the xAPI reference above using Macro Syntax with the following parameters and values
        • Url: url
        • Target: target
      • Log a Successful response from your xAPI call
      • Catch and log an error from your xAPI call
    • Replace console.log(action, url); under the OpenSite case within your WidgetActions event with this new openSite() function call and pass in the url object into your function
    View openSite(url, target) function
    async function openSite(url, target = 'OSD') {
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: url,
      Target: target
    })
    console.log(`Site Webview Opened for: [${url}]`, openPage);
  } catch (e) {
    const err = {
      Context: `Failed to open Site WebView to: [${url}]`,
      ...e
    };
    console.error(err);
  }
}

    • Once complete, Save and Activate the macro (if inactive)

    • Start pressing the Open Site and Open QrCode 🔳 buttons contained within your Room Docs panel

    • Monitor the Device OSD and Macro Console Output
View OSD Output

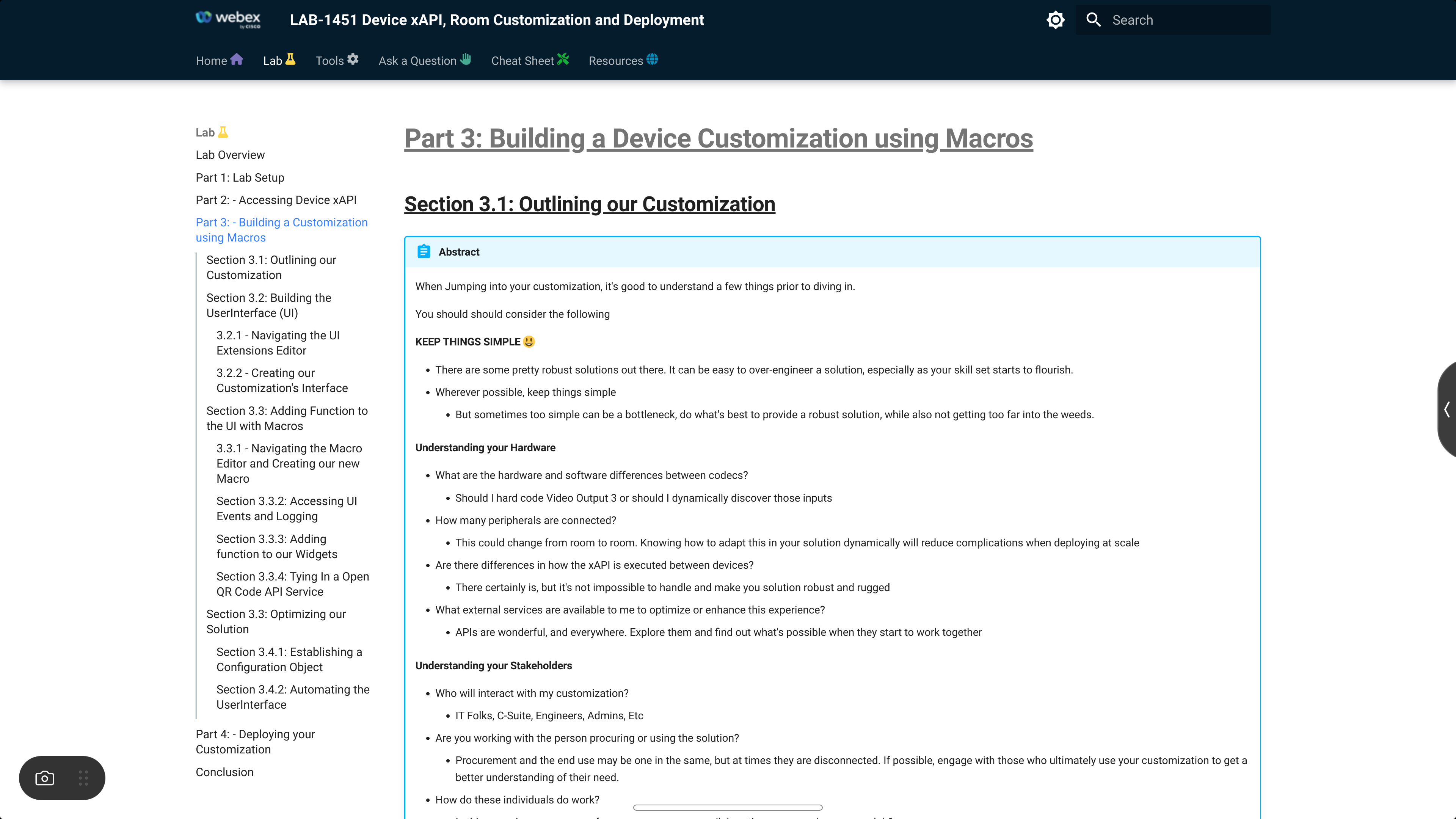

Lab 1451 WebView
Lab 1451 WebView

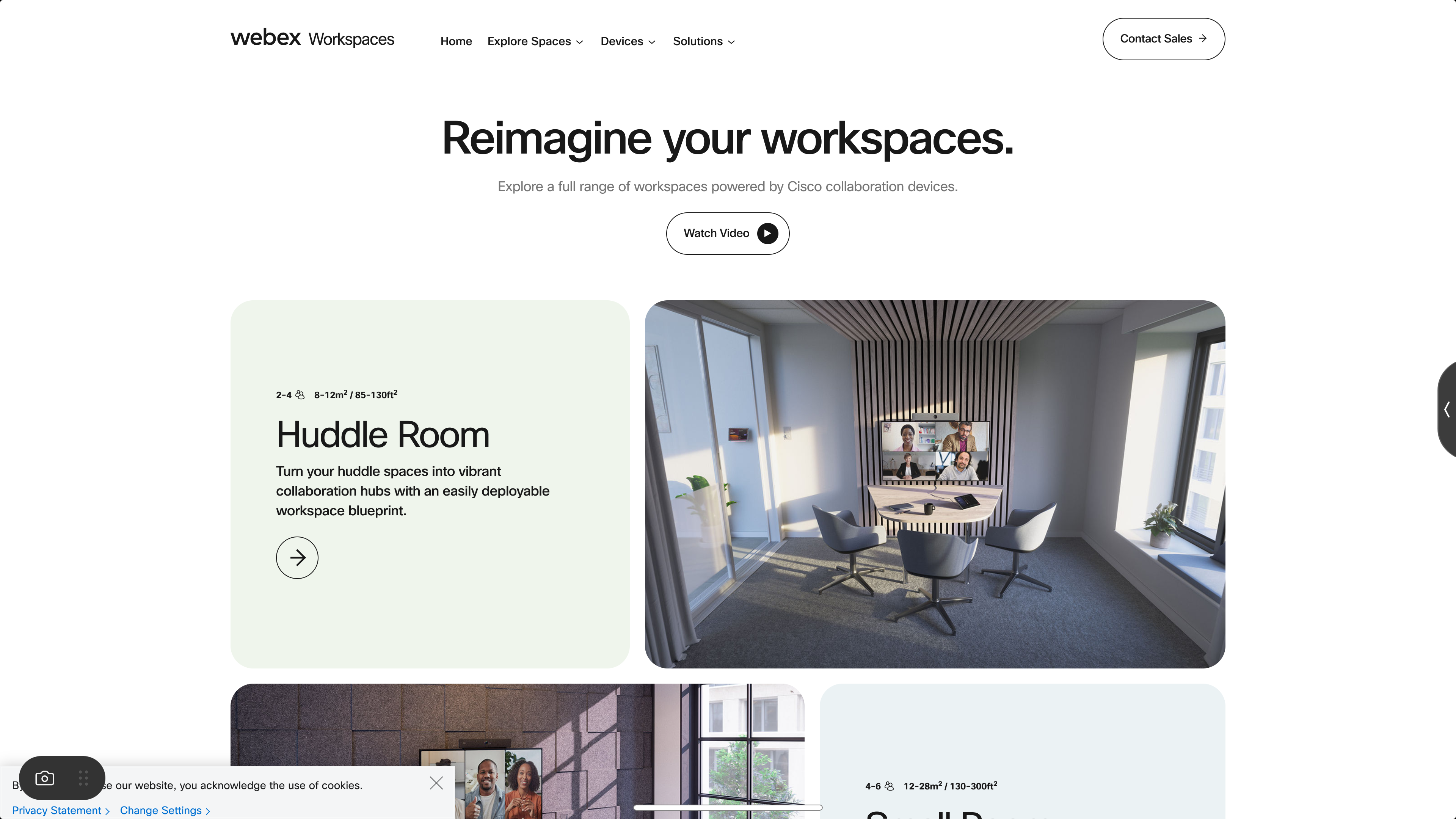

Reimagine Workspaces WebView
Reimagine Workspaces WebView

Compare your Macro
import xapi from 'xapi';

async function openSite(url, target = 'OSD') { //<-- Declare and define your openSite function
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: url,
      Target: target
    })
    console.log(`Site Webview Opened for: [${url}]`, openPage);  //<-- Log a Successful Response
  } catch (e) {
    const err = {
      Context: `Failed to open Site WebView to: [${url}]`,
      ...e
    };
    console.error(err); //<-- Catch and log an Error
  }
}

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);
                        // ↑ url object
      switch (action) {
        case 'OpenSite':
          openSite(url); //<-- Run the openSite() function and pass in the url object
          break;
        case 'OpenQrCode':
          console.warn(action, url);
          break;
        default:
          console.error(`Unknown Action Fired: [${action}]`);
          break;
      };
    };
  };
});
Compare your Macro Console
Time Macro Logs
HH:MM:SS Room Docs QJS Ready
HH:MM:SS Room Docs Site Webview Opened for: [https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/]
HH:MM:SS Room Docs OpenQrCode https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/
HH:MM:SS Room Docs Site Webview Opened for: [https://www.webex.com/us/en/workspaces.html]
HH:MM:SS Room Docs OpenQrCode https://www.webex.com/us/en/workspaces.html
Lesson: Defining our OpenQrCode function (rxe-m1.3.2)

Making QR Codes is NOT a normal function of the Codec

In this lesson, in order to generate a QR code for our customization, then we'll need to leverage a 3rd party QR API Service

This is how you can introduce more functionality to your device by leveraging the World of APIs

Always Keep Security Top of Mind!

It's easy to fall outside your organization's security policy especially when building new solutions.

Make sure you work with your, or your Customer's, Information Security teams before implementing a new solution that requires Integration Authentication of any kind or reaches out on the internet.

The security implications of a solution can force you building your solution using a different integration method, or even stop a project all together.

  • xAPI: xCommand UserInterface WebView Display

  • Task:

    • Declare a new async function called openQrCode with the following function parameters
      • url
      • target = 'OSD'
        • Note: change OSD to Controller if a Room Navigator touch panel is available
    • Within this function:
      • Use ES6 JS's encodeURI() function to modify the URL in and assign it to a new object called encodedUrl
        • This is because we'll be wrapping our target URL within a URL from our QR Code Service
      • Add your encodedUrl object to the data Url Parameter in the URL and assign it to a new object called qrURL
        • https://api.qrserver.com/v1/create-qr-code/?data=encodedUrl
      • Structure the xAPI reference above using Macro Syntax with the following parameters and values
        • Url: formattedURL
        • Target: target
      • Log a Successful response from your xAPI call
      • Catch and log an error from your xAPI call
    • Replace console.warn(action, url); under the OpenQrCode case within your WidgetActions event with this new openQrCode() function call and pass in the url object into your function
    View openQrCode(url, target) function
    async function openQrCode(url, target = 'OSD') { //<-- Declare and define your openQrCode function
  const encodedUrl = encodeURI(url);             //<-- Encode the URL that was provided
  const qrURL = `https://api.qrserver.com/v1/create-qr-code/?data=` + encodedUrl;
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: qrURL,
      Target: target
    })
    console.log(`QR Webview Opened for: [${url}]`, openPage, qrURL); //<-- Log a Successful Response
  } catch (e) {
    const err = {
      Context: `Failed to open QR WebView to: [${url}]`,
      QrUrl: qrURL,
      ...e
    };
    console.error(err); //<-- Catch and log an Error
  }
}

    • Once complete, Save and Activate the macro (if inactive)

    • Start pressing the Open Site and Open QrCode 🔳 buttons contained within your Room Docs panel

    • Monitor the Device OSD and Macro Console Output
View OSD Output

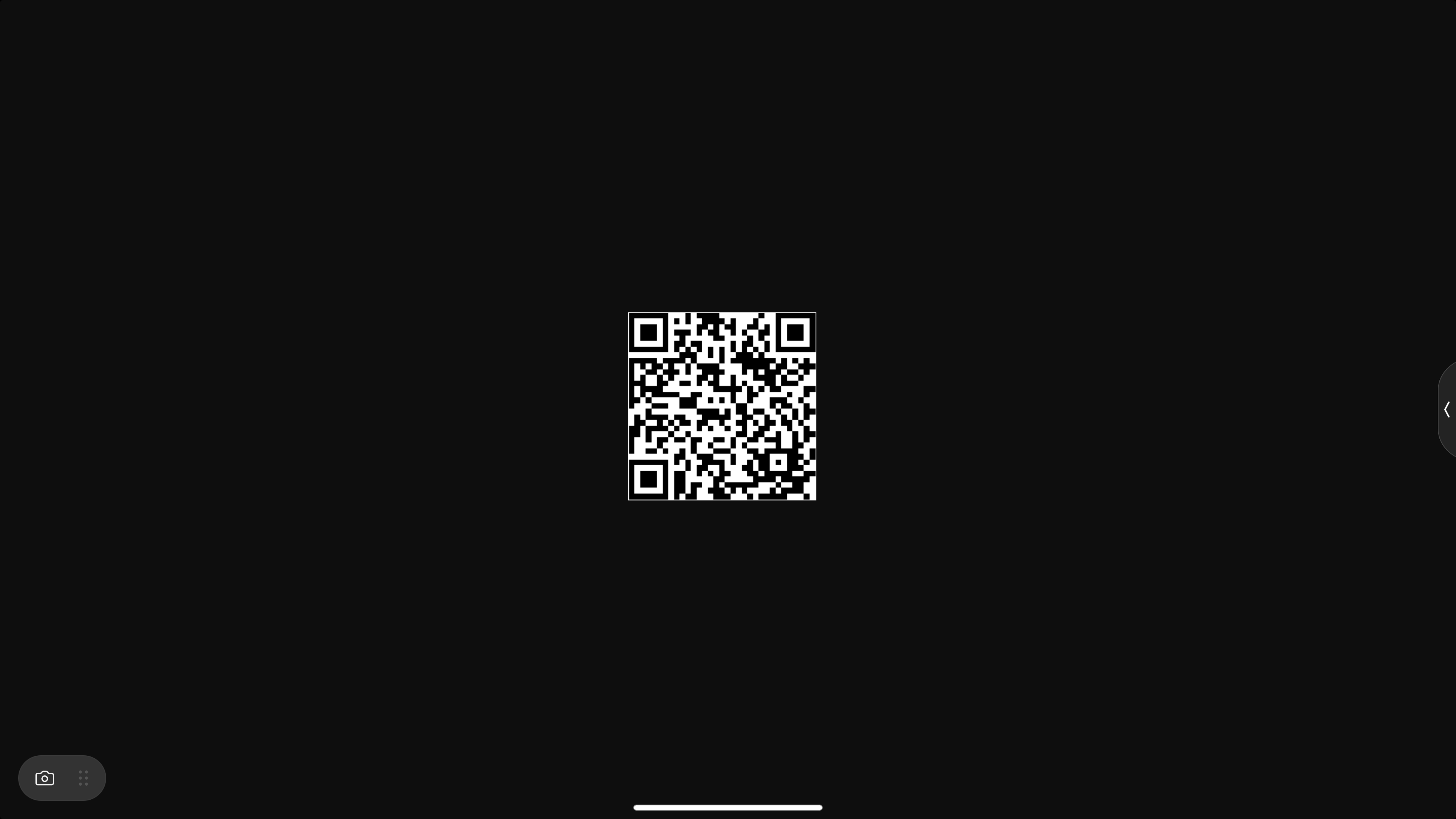

Lab 1451 WebView
Lab 1451 WebView

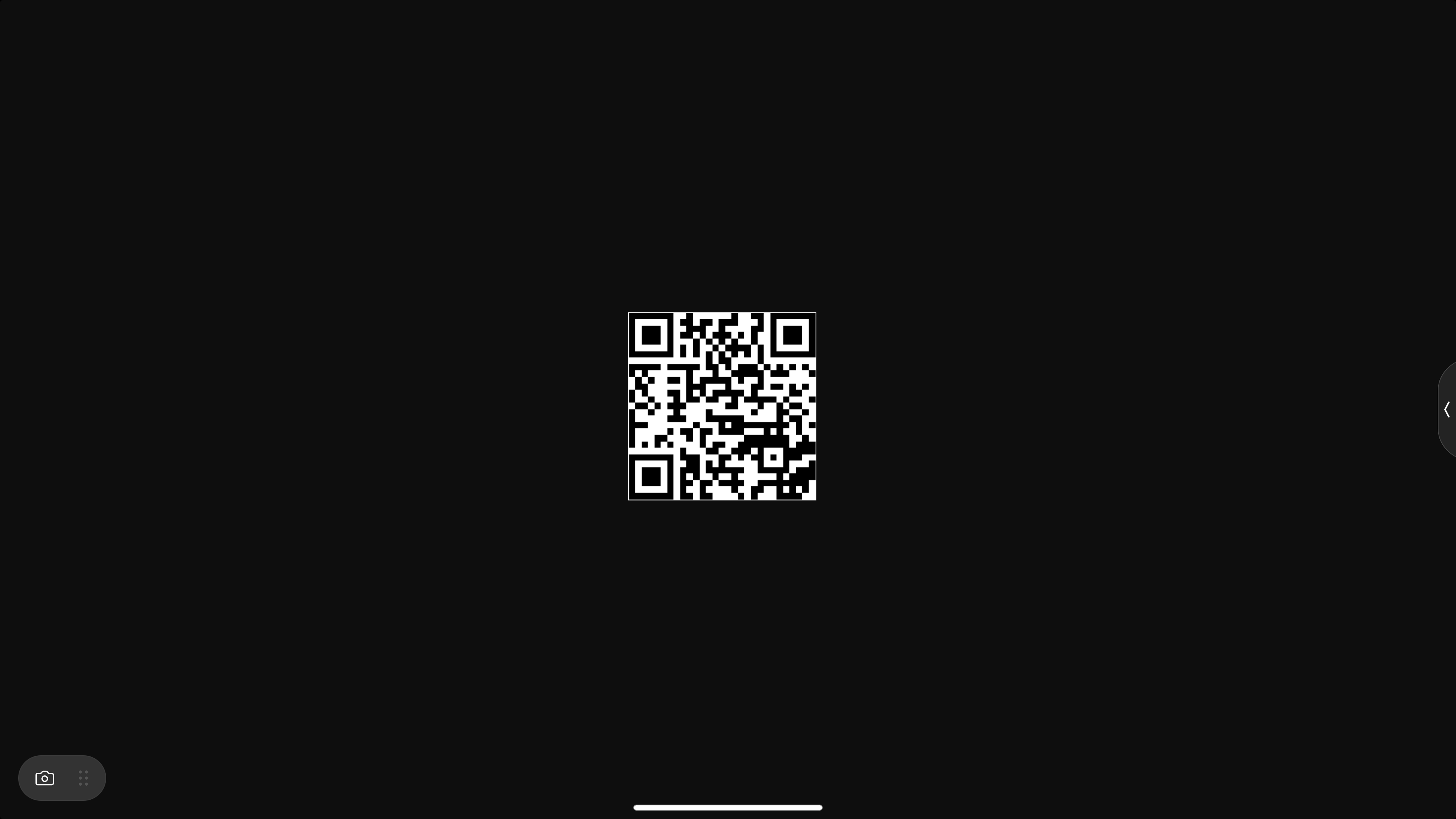

Reimagine Workspaces WebView
Reimagine Workspaces WebView

Compare your Macro
import xapi from 'xapi';

async function openSite(url, target = 'OSD') {
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: url,
      Target: target
    })
    console.log(`Site Webview Opened for: [${url}]`, openPage);
  } catch (e) {
    const err = {
      Context: `Failed to open Site WebView to: [${url}]`,
      ...e
    };
    throw new Error(err);
  }
}

async function openQrCode(url, target = 'OSD') { //<-- Declare and define your openQrCode function
  const encodedUrl = encodeURI(url);             //<-- Encode the URL that was provided
  const qrURL = `https://api.qrserver.com/v1/create-qr-code/?data=` + encodedUrl;
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: qrURL,
      Target: target
    })
    console.log(`QR Webview Opened for: [${url}]`, openPage, qrURL); //<-- Log a Successful Response
  } catch (e) {
    const err = {
      Context: `Failed to open QR WebView to: [${url}]`,
      QrUrl: qrURL,
      ...e
    };
    console.error(err); //<-- Catch and log an Error
  }
}

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);
                        // ↑ url object
      switch (action) {
        case 'OpenSite':
          openSite(url);
          break;
        case 'OpenQrCode':
          openQrCode(url); //<-- Run the openQrCode() function and pass in the url object
          break;
        default:
          console.error(`Unknown Action Fired: [${action}]`);
          break;
      };
    };
  };
});
Compare your Macro Console
Time Macro Logs
HH:MM:SS Room Docs QJS Ready
HH:MM:SS Room Docs Site Webview Opened for: [https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/]
HH:MM:SS Room Docs QR Webview Opened for: [https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/]
HH:MM:SS Room Docs Site Webview Opened for: [https://www.webex.com/us/en/workspaces.html]
HH:MM:SS Room Docs QR Webview Opened for: [https://www.webex.com/us/en/workspaces.html]

Abstract

🥳 You made a UI and a Macro 🎉

But we can do a few more things to make this a really rugged solution that enabled simpler deployment and allows us to scale a bit better

And we can do this in several ways
