Quick Docs Macro Exercise - Part 2 - Optimize _{(section rxe-m2)}

Section rxe-m1 Requirements

Note

This lab assumes you have access to a Cisco RoomOS Device that is already setup and ready for use. If your device is not registered and online, please do so before beginning

Additional Lessons

It's recommended you have run through Accessing RoomOS xAPI via Macros in Macros rxp-6 at a minimum before proceeding with this Exercise
Complete Quick Docs Part 1 ^rxe-m1 before proceeding

Hardware

A Laptop
A Cisco Desk, Board or Room Series Device running the most recent On Premise or Cloud Stable software
- A Touch Controller is required when working on a Room Series Device. Either Room navigator or 3rd part touch display
- Preferred Device: Cisco Desk Pro
A minimum of 1 camera (Either Integrated or External)

Software

Laptop
- Recommended Browser: Chrome or Firefox
- Recommended Terminal Software:
  - Command Prompt (Windows)
  - Terminal (MAC)
  - Putty (Windows)
  - Termius (Windows, MAC, Linux)
RoomOS Device
- Either the current On Premise or Cloud Stable release

Network

Local Access to the RoomOS Device over port 80/443
General access to the Internet

Part 2 Solution Outline

Note

In Quick Docs Part 1 ^rxe-m1, we built a complete solution, but the information we wrote into the solution is hardcoded in the Macro. This means every time we want to make a change, we then have to update the macro on all X devices we manage.

In Quick Docs Part 2 ^rxe-m2 of this lab, we'll expand our quick docs solution that enables use new ways to centralize and scale our solution across our device portfolio.

This may be fine for a small number of rooms, but should you have a few hundred or thousand rooms, we'll want to leverage what we can simplify our workload

We also may not want to allow this Macro to be edited by our content creators as they may be unfamiliar with the environment and could incur larger changes to the macro's operation. This could lead to additional support time for you but we don't want to have to be the sole curator of the content. To tackle this, we'll host an additional manifest file with Document references that we can share with our content creators and edit our macro on the fly based on that nee external resource.

These 2 changes are great, but introduces a problem; we hard coded our UI too. Luckily, by making clever use of the Panel Save command, we can generate this UI as new information enters the Macro

Outline

In Quick Docs Part 2 ^rxe-m2 we'll:

Re-organize our macro to improve readability
Modify our Macro to fetch a new list of documents on the network
Maintain Backwards compatibility by allowing hard coded docs to continue to live on the device
Good for local super users, who may need special documents on a per room basis
Automate the UserInterface so we can spawn all new buttons based on this new information

Implementing imports and exports _(rxe-m2.1)

Lesson: Create another Macro _(rxe-m2.1.1)

Task:

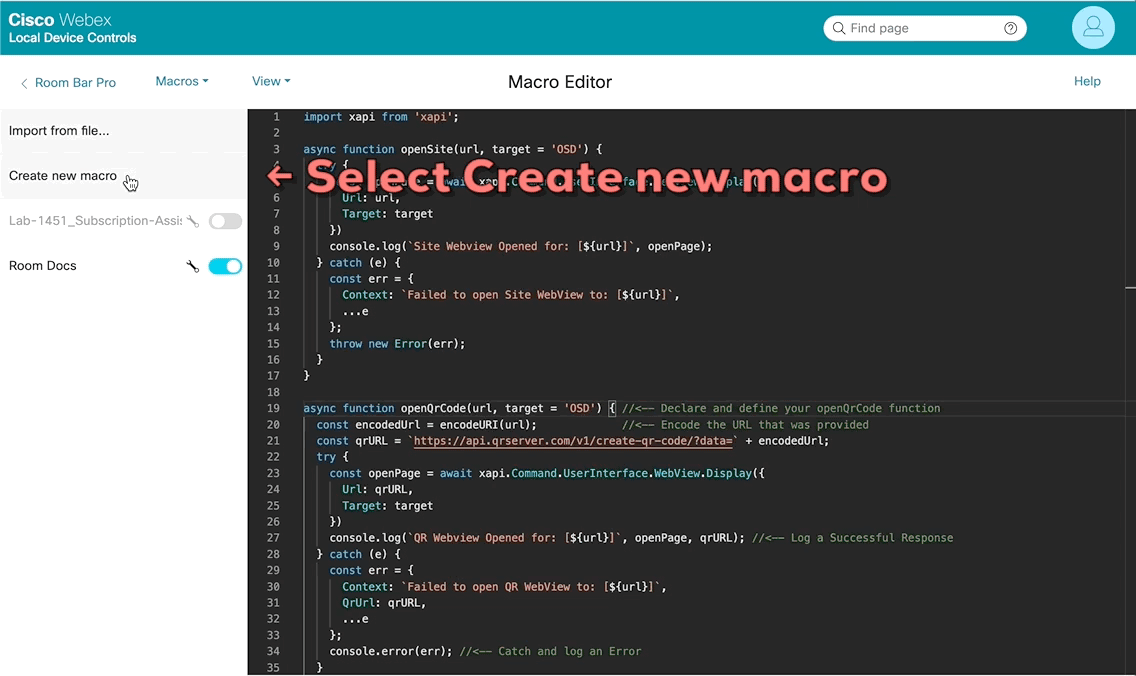

- Select Create new macro in the Macro Editor
- Name this macro Room Docs Configuration
- Save and keep the Room Docs Configuration Macro Inactive

Review how to Create and Save a Macro

Lesson: Establish a Config Object _(rxe-m2.1.2)

xAPI: N/A

Task:

Select the Room Docs Configuration Macro and perform the next few tasks in this Macro
Remove import xapi from 'xapi'; from the Room Docs Configuration Macro
Copy the config object outlined below and paste this into the Room Docs Configuration Macro

Copy this `config` Object

const config = {
  manifestVisibility: 'merge', // localOnly, remoteOnly, merge
  remoteSiteManifest: '',
  localSiteManifest: [
    {
      Name: 'Lab 1451',
      Url: 'https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/',
      QrEnabled: false
    },
    {
      Name: 'Reimagine Workspaces',
      Url: 'https://www.webex.com/us/en/workspaces.html',
      QrEnabled: true
    }
  ]
};

console.log('Config:', config);

Once complete, Save, and activate this macro
Look at the Macro Console, you should see the contents of the config object print to the console.

Compare your Room Docs Configuration Macro

const config = {
  manifestVisibility: 'merge', // localOnly, remoteOnly, merge
  remoteSiteManifest: '',
  localSiteManifest: [
    {
      Name: 'Lab 1451',
      Url: '',
      QrEnabled: false
    },
    {
      Name: 'Reimagine Workspaces',
      Url: '',
      QrEnabled: true
    }
  ]
};

console.log('Config:', config);

Lesson: Export your Config Object _(rxe-m2.1.3)

Now that we've established a config in our new Room Docs Configuration macro, in order to make use of it in any other macros on the device, we'll need to export it

Task:

Below the console.log('Config:', config); in the Room Docs Configuration Macro add the following code

export { config };

Once complete, Save your macro.
Look at the Macro Console, you should still see the contents of the config object print to the console.

Compare your Room Docs Configuration Macro

const config = {
  manifestVisibility: 'merge', // localOnly, remoteOnly, merge
  remoteSiteManifest: '',
  localSiteManifest: [
    {
      Name: 'Lab 1451',
      Url: '',
      QrEnabled: false
    },
    {
      Name: 'Reimagine Workspaces',
      Url: '',
      QrEnabled: true
    }
  ]
};

console.log('Config:', config);

export { config };

Lesson: Import your Config Object _(rxe-m2.1.4)

With the config object now being exported in your Macro Editor, it's now accessible to any other macro running on the device.

xAPI: N/A
Task:
- Select the Room Docs Macro and perform the next few tasks in this Macro
- Below import xapi from 'xapi'; add the following
```
import { config } from './Room Docs Configuration';
```
- add a new line and add
```
console.log('Imported Config:', config);
```
- Once complete, Save and Activate the Room Docs Macro (if inactive)
- Monitor your log output
  - You should now see 2 instances of the config object print to the console
  - This illustrates how both macros are accessing the same object and can perform separate tasks using the same information
- However, it's not necessary to have both macros running now. At this time, deactivate the Room Docs Configuration macro

Why deactivate the Room Docs Configuration Macro?

2mb of Storage?!?!?

Not to worry, 2mb may sound small, but this is the storage for the text contained within your macro, and you can store ALOT of tex in 2mb

It will take you time to max this out, but should you it may be time for you to help us proctor this lab

The Macro Editor can only support 10 active macros at a time per device, however it can support any number of inactive macros so long as long as you haven't exceeded the 2mb of storage for Macro Code.

So, by disabling the Room Docs Configuration macro, we free up an active macro slot for our device, and we'll still be able to access this information.

Now, this doesn't mean you couldn't have a solution with 2 macros running and still use exporting/importing information. In our case, our Room Docs Configuration macro is only serving as a library of information and not executing any tasks for use, so best to leave off as to not waste an active macro slot.

Compare your Room Docs Macro

import xapi from 'xapi';
import { config } from './Room Docs Configuration'; // <-- Imports should always be on the top level

console.log('Config:', config); // <-- Log the config object here

async function openSite(url, target = 'OSD') {
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: url,
      Target: target
    })
    console.log(`Site Webview Opened for: [${url}]`, openPage);
  } catch (e) {
    const err = {
      Context: `Failed to open Site WebView to: [${url}]`,
      ...e
    };
    throw new Error(err);
  }
}

async function openQrCode(url, target = 'OSD') {
  const encodedUrl = encodeURI(url);
  const qrURL = `https://api.qrserver.com/v1/create-qr-code/?data=` + encodedUrl;
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: qrURL,
      Target: target
    })
    console.log(`QR Webview Opened for: [${url}]`, openPage, qrURL);
  } catch (e) {
    const err = {
      Context: `Failed to open QR WebView to: [${url}]`,
      QrUrl: qrURL,
      ...e
    };
    console.error(err);
  }
}

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);

      switch (action) {
        case 'OpenSite':
          openSite(url);
          break;
        case 'OpenQrCode':
          openQrCode(url);
          break;
        default:
          console.error(`Unknown Action Fired: [${action}]`);
          break;
      };
    };
  };
});

Compare your Macro Console

Time	App	Logs
HH:MM:SS	Room Docs	QJS Ready
HH:MM:SS	Room Docs	Config: {"manifestVisibility":"localOnly","remoteSiteManifest":"","localSiteManifest":[{"Name":"Lab 1451","Url":"","QrEnabled":false},{"Name":"Reimagine Workspaces","Url":"","QrEnabled":true}]}

Automating the UserInterface _(rxe-m2.2)

Abstract

Now that we have a config object established and it's accessible in our Room Docs macro, we can iterate over this config object and build the UserInterface dynamically. We can use a combination of the Device xAPI and some string manipulation techniques available in ES6 JS to form a new XML payload which we can load in as soon as the script starts

Lesson: Download our current UserInterface XML _(rxe-m2.2.1)

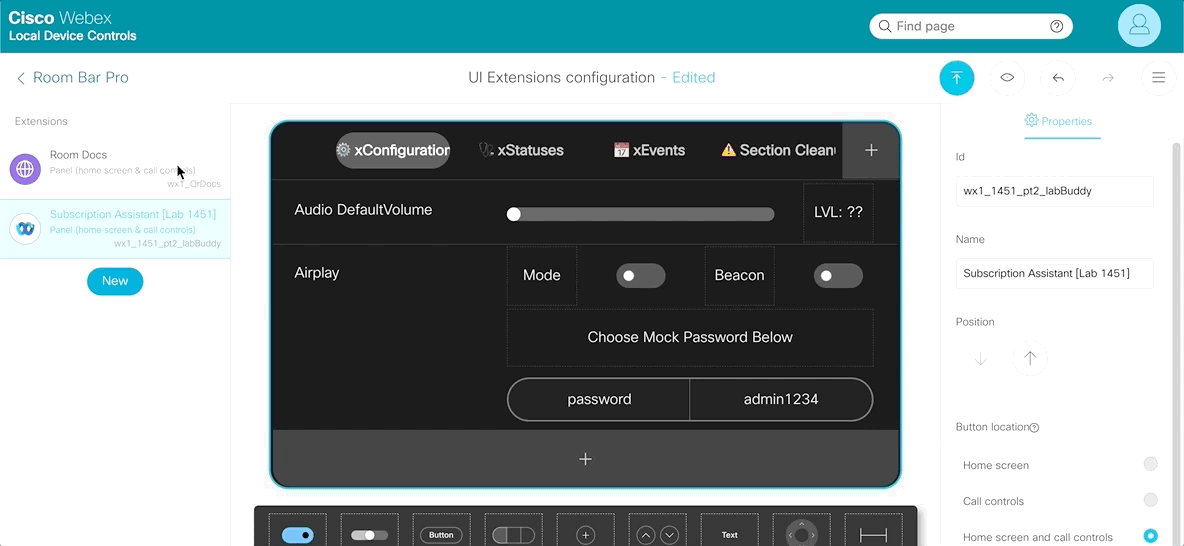

Click on the Tabs Below to learn how to download the UI XML

Device HomeUI Extensions EditorDownload OptionsDownload Operation

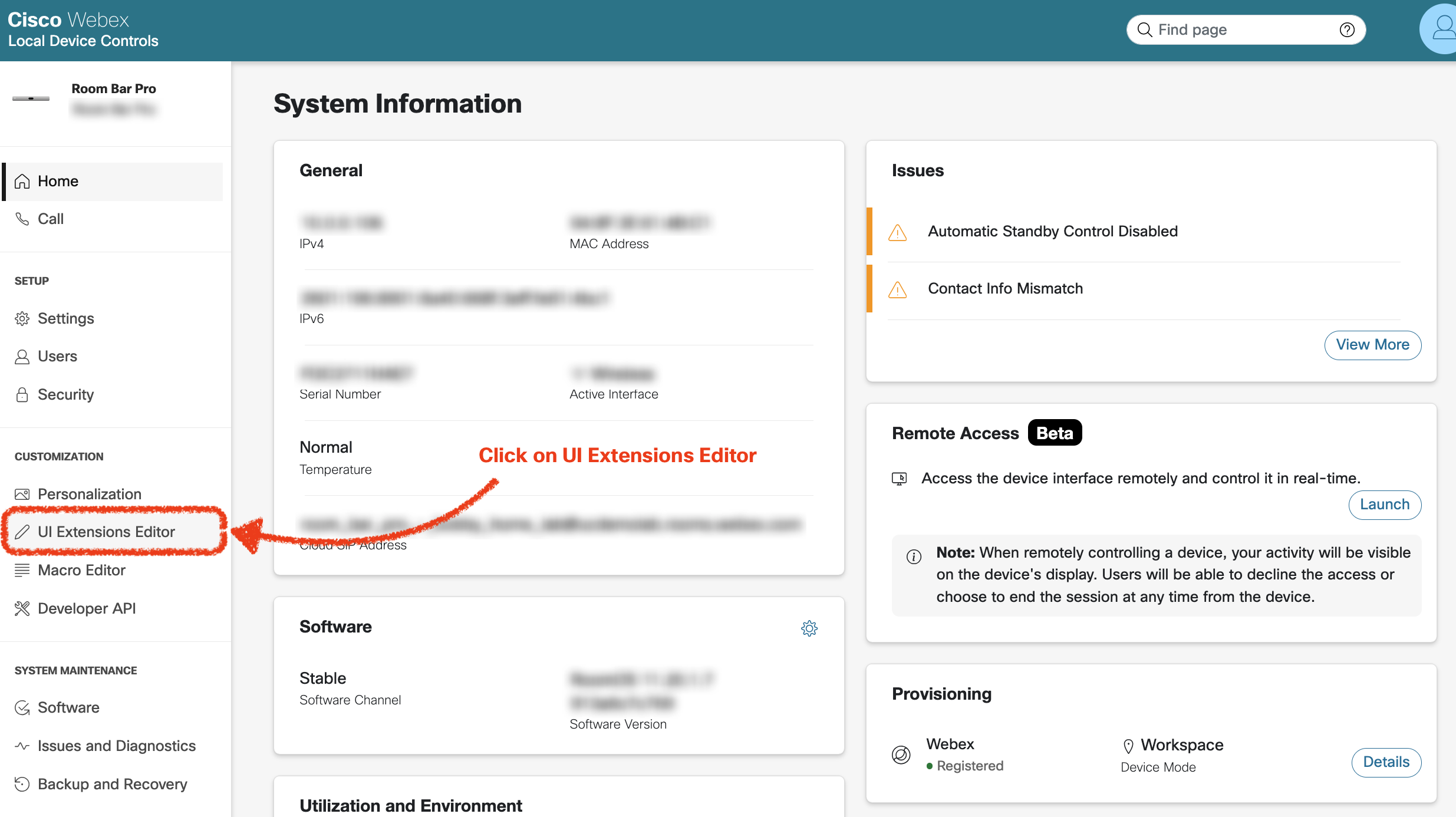

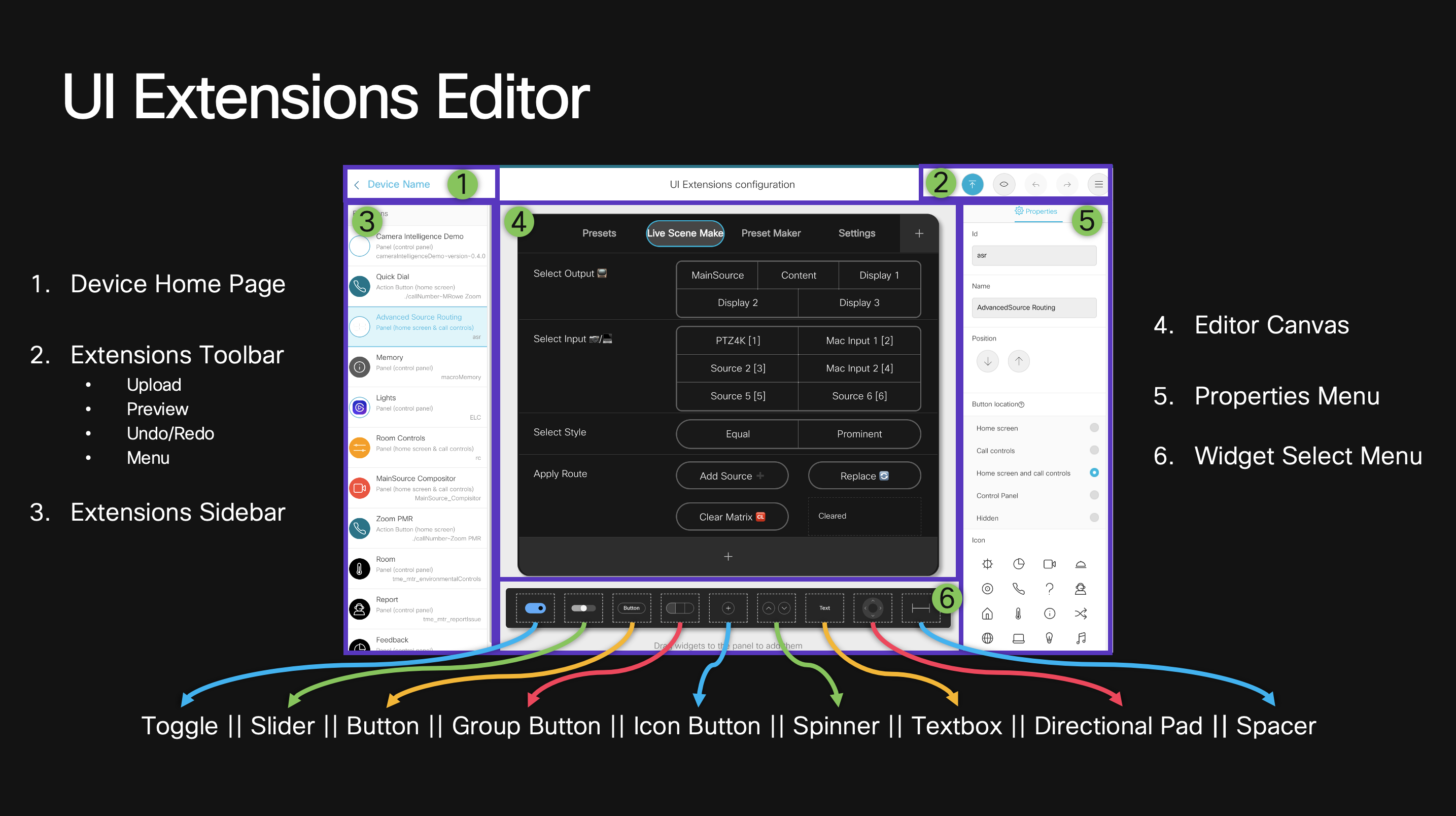

Select the UI Extensions Editor on the Left-Hand Navigation Bar

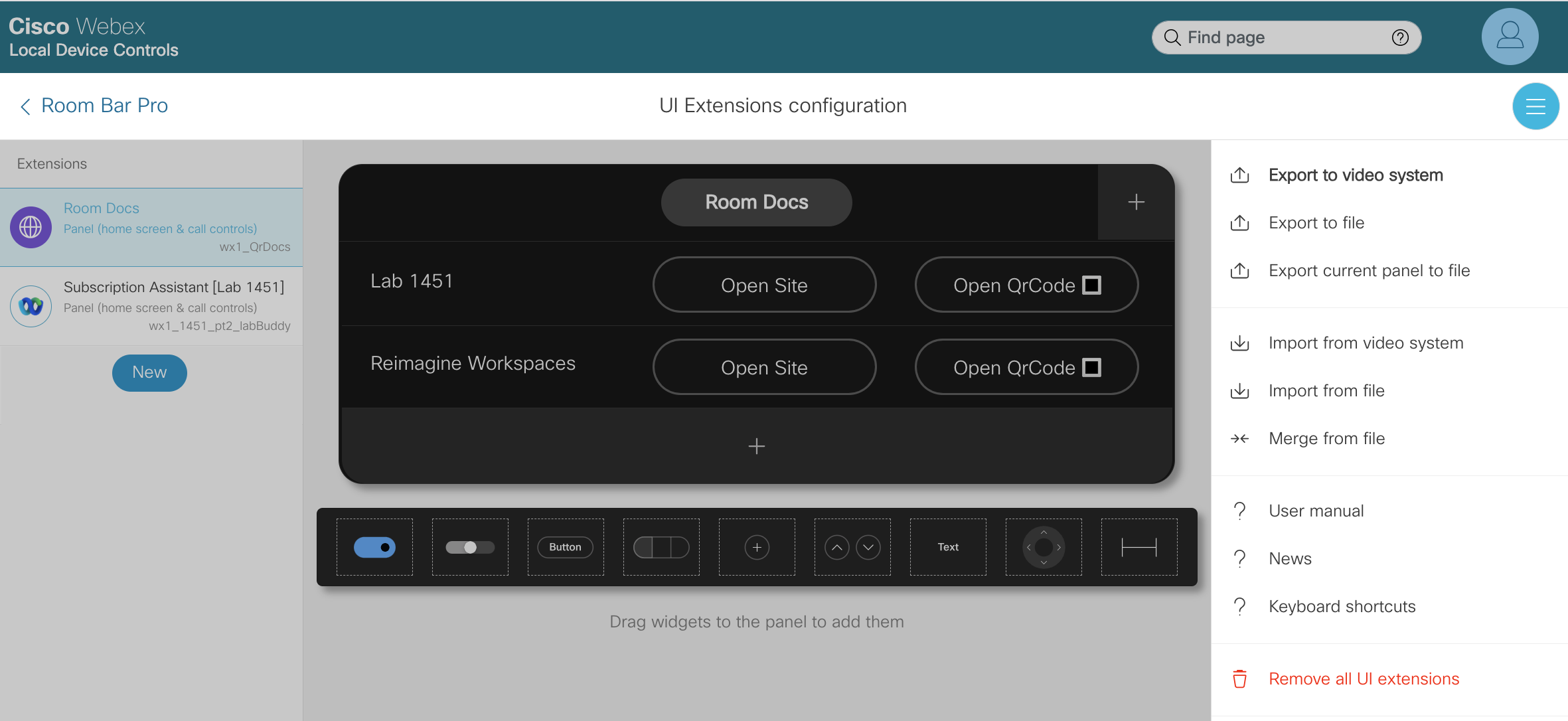

The Options to download the UI Extension Panel is in the Extensions ToolBar

Select the Room Docs Panel
Select the Editor Menu ("Pancake" icon) in the Extensions Toolbar
Select Export current panel to file

UI Extensions Downloads come with the name roomcontrolconfig - 0000-00-00T00:00:00.000.xml
The Most Recent Timestamp is the one you just downloaded

xAPI: N/A
Task:
- Open the roomcontrolconfig - 0000-00-00T00:00:00.000.xml file
  - Use Notepad for Windows
  - Use TextEdit for MAC
- Review the contents of your UI Extension's XML
- We'll be taking parts of this XML in the next lesson, and re-structuring it based on our config object

Lesson: Add a buildUI() function to the Room Docs Macro _(rxe-m2.2.2)

xAPI: xCommand UserInterface Extensions Panel Save

Task:

Declare a new async function called buildUI without function parameters

Within this function:

Declare a rows object with a value of '' (Yes, no value assigned)

Use ES6 JS's forEach prototype to loop through config.localSiteManifest Array

let rows = '';

config.localSiteManifest.forEach(site => {
  console.log(`Appending [${site.Name}] Site to UI`);
  rows = rows + `<Row>
                  <Name>${site.Name}</Name>
                  <Widget>
                    <WidgetId>wx1_QrDocs~OpenSite~${site.Url}</WidgetId>
                    <Name>Open Site</Name>
                    <Type>Button</Type>
                    <Options>size=${site.QrEnabled ? 2 : 4}</Options>
                  </Widget>
                  ${site.QrEnabled ? `<Widget>
                    <WidgetId>wx1_QrDocs~OpenQrCode~${site.Url}</WidgetId>
                    <Name>Open QrCode 🔳</Name>
                    <Type>Button</Type>
                    <Options>size=2</Options>
                  </Widget>`: ''}
                </Row>`
})

Ok, what's going above???

It's alot to unpack, I know, but it's just too cool to NOT show you

In the roomcontrolconfig - 0000-00-00T00:00:00.000.xml file we found one of our rows of sites we built out in the UI Extensions Editor

We took a Row, which is surrounded by <Row>[More Row Content]</Row> XML tags that matched our Site information

We then declared a new rows object and looped through it using the forEach() ES6 JS prototype

In this loop, we accessed the properties of each site, that was configured in the config object under the localSiteManifest Array and as the for the forEach() prototype did cycled through each new doc, we took the Name and URL values and injected them into the correct locations within the XML structure.

We do this by referencing the config and making use of ES6 JS's Template Literal feature to place the data as well as leveraging ES6 JS's Conditional Operator to check if the QrEnabled value is set to true

Each time the forEach() prototype loops, it takes the rows object and concatenates another row of information and will do so for each site defined in the localSiteManifest Array

Learn more about the .forEach() prototype Learn more about Arrays Learn more about Template Literals Learn more about Conditional Operators Learn more about Concatenation using the + operator

In your roomcontrolconfig - 0000-00-00T00:00:00.000.xml make the following changes

Remove Version Tag and ContentRemove PanelIdReplace All Site RowsView Fully Edited XML

This allows the Codec to assign an XML version and avoid conflicts

Remove ME

<Version>1.11</Version>

The PanelId is provided as apart of the Panel Save command, so having a mismatch could be problematic
Removing this tag prevents the chance of a mismatch and allows the Codec to assign the PanelId based on the command execution

Remove ME

<PanelId>wx1_QrDocs</PanelId>

replace All site rows with ${rows}, which is out object where we instantiated our new row information based on our config object

Replace ME with ${rows}

<Row>
  <Name>Lab 1451</Name>
  <Widget>
    <WidgetId>wx1_QrDocs~OpenSite~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/</WidgetId>
    <Name>Open Site</Name>
    <Type>Button</Type>
    <Options>size=2</Options>
  </Widget>
  <Widget>
    <WidgetId>wx1_QrDocs~OpenQrCode~https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/</WidgetId>
    <Name>Open QrCode 🔳</Name>
    <Type>Button</Type>
    <Options>size=2</Options>
  </Widget>
</Row>
<Row>
  <Name>Reimagine Workspaces</Name>
  <Widget>
    <WidgetId>wx1_QrDocs~OpenSite~https://www.webex.com/us/en/workspaces.html</WidgetId>
    <Name>Open Site</Name>
    <Type>Button</Type>
    <Options>size=2</Options>
  </Widget>
  <Widget>
    <WidgetId>wx1_QrDocs~OpenQrCode~https://www.webex.com/us/en/workspaces.html</WidgetId>
    <Name>Open QrCode 🔳</Name>
    <Type>Button</Type>
    <Options>size=2</Options>
  </Widget>
</Row>

Should look something like...

<Extensions>
  <Panel>
    <Order>1</Order>
    <Origin>local</Origin>
    <Location>HomeScreenAndCallControls</Location>
    <Icon>Language</Icon>
    <Color>#875AE0</Color>
    <Name>Room Docs</Name>
    <ActivityType>Custom</ActivityType>
    <Page>
      <Name>Room Docs</Name>
      ${rows}
      <PageId>wx1_QrDocs~RoomDocs</PageId>
      <Options/>
    </Page>
  </Panel>
</Extensions>

Declare a new object called xml and assign it the value of your edited xml
Structure the xAPI reference above using Macro Syntax with the following parameters and values
- PanelId: wx1_QrDocs
- body: xml
Place this xAPI call in a try...catch block and handle it's response and error appropriately
Then run this function after it has been defined
Once complete, Save and Activate the Room Docs Macro (if inactive)

View buildUI() function

async function buildUI() {
  let rows = '';

  config.localSiteManifest.forEach(site => {
    console.log(`Appending [${site.Name}] Site to UI`);
    rows = rows + `<Row>
                    <Name>${site.Name}</Name>
                    <Widget>
                      <WidgetId>wx1_QrDocs~OpenSite~${site.Url}</WidgetId>
                      <Name>Open Site</Name>
                      <Type>Button</Type>
                      <Options>size=${site.QrEnabled ? 2 : 4}</Options>
                    </Widget>
                    ${site.QrEnabled ? `<Widget>
                      <WidgetId>wx1_QrDocs~OpenQrCode~${site.Url}</WidgetId>
                      <Name>Open QrCode 🔳</Name>
                      <Type>Button</Type>
                      <Options>size=2</Options>
                    </Widget>`: ''}
                  </Row>`;
  });

  const xml = `<Extensions>
                <Panel>
                  <Order>1</Order>
                  <Origin>local</Origin>
                  <Location>HomeScreenAndCallControls</Location>
                  <Icon>Language</Icon>
                  <Color>#875AE0</Color>
                  <Name>Room Docs</Name>
                  <ActivityType>Custom</ActivityType>
                  <Page>
                    <Name>Room Docs</Name>
                    ${rows}
                    <PageId>wx1_QrDocs~RoomDocs</PageId>
                    <Options/>
                  </Page>
                </Panel>
              </Extensions>`;

  try {
    const build = await xapi.Command.UserInterface.Extensions.Panel.Save({
      PanelId: 'wx1_QrDocs'
    }, xml);
    console.log('UserInterface Built!', build);
  } catch (e) {
    const err = {
      Context: `Failed to Build UserInterface`,
      ...e
    };
    console.error(err);
  };
};

Compare your Room Docs Macro

import xapi from 'xapi';
import { config } from './Room Docs Configuration';

console.log('Config:', config);

async function openSite(url, target = 'OSD') {
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: url,
      Target: target
    })
    console.log(`Site Webview Opened for: [${url}]`, openPage);
  } catch (e) {
    const err = {
      Context: `Failed to open Site WebView to: [${url}]`,
      ...e
    };
    throw new Error(err);
  }
}

async function openQrCode(url, target = 'OSD') {
  const encodedUrl = encodeURI(url);
  const qrURL = `https://api.qrserver.com/v1/create-qr-code/?data=` + encodedUrl;
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: qrURL,
      Target: target
    })
    console.log(`QR Webview Opened for: [${url}]`, openPage, qrURL);
  } catch (e) {
    const err = {
      Context: `Failed to open QR WebView to: [${url}]`,
      QrUrl: qrURL,
      ...e
    };
    console.error(err);
  }
}

async function buildUI() { // <-- Declare and Define your buildUI() function
  let rows = '';  // <-- declare your rows object

  config.localSiteManifest.forEach(site => { // <-- use forEach() to loop through the localSiteManifest Array
    console.log(`Appending [${site.Name}] Site to UI`);

    // Re-assign the value of rows with the current value of rows, plus the XML for a new row
    //  passing in the data for each item listed in the localSiteManifest Array
    rows = rows + `<Row>
                    <Name>${site.Name}</Name>
                    <Widget>
                      <WidgetId>wx1_QrDocs~OpenSite~${site.Url}</WidgetId>
                      <Name>Open Site</Name>
                      <Type>Button</Type>
                      <Options>size=${site.QrEnabled ? 2 : 4}</Options>
                    </Widget>
                    ${site.QrEnabled ? `<Widget>
                      <WidgetId>wx1_QrDocs~OpenQrCode~${site.Url}</WidgetId>
                      <Name>Open QrCode 🔳</Name>
                      <Type>Button</Type>
                      <Options>size=2</Options>
                    </Widget>`: ''}
                  </Row>`;
  });

  // Declare and assign the rest of the XML for your panel, and pass in the rows data
  const xml = `<Extensions>
                <Panel>
                  <Order>1</Order>
                  <Origin>local</Origin>
                  <Location>HomeScreenAndCallControls</Location>
                  <Icon>Language</Icon>
                  <Color>#875AE0</Color>
                  <Name>Room Docs</Name>
                  <ActivityType>Custom</ActivityType>
                  <Page>
                    <Name>Room Docs</Name>
                    ${rows /* Contains all the rows from the forEach() loop*/}
                    <PageId>wx1_QrDocs~RoomDocs</PageId>
                    <Options/>
                  </Page>
                </Panel>
              </Extensions>`;

  try {
    const build = await xapi.Command.UserInterface.Extensions.Panel.Save({ // structure xCommand UserInterface Extensions Panel Save
      PanelId: 'wx1_QrDocs'
    }, xml);
    console.log('UserInterface Built!', build); // Log it's repsonse
  } catch (e) {
    const err = {
      Context: `Failed to Build UserInterface`,
      ...e
    };
    console.error(err); // Catch and log it's error
  };
};

buildUI();  //<-- Run the buildUI() function at the top level of your Macro

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);

      switch (action) {
        case 'OpenSite':
          openSite(url);
          break;
        case 'OpenQrCode':
          openQrCode(url);
          break;
        default:
          console.error(`Unknown Action Fired: [${action}]`);
          break;
      };
    };
  };
});

Compare your Macro Console

Time	App	Logs
HH:MM:SS	Room Docs	QJS Ready
HH:MM:SS	Room Docs	Config: {"manifestVisibility":"localOnly","remoteSiteManifest":"","localSiteManifest":[{"Name":"Lab 1451","Url":"https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/","QrEnabled":true},{"Name":"Reimagine Workspaces","Url":"https://www.webex.com/us/en/workspaces.html","QrEnabled":true},{"Name":"Cisco","Url":"https://www.cisco.com","QrEnabled":true}]}
HH:MM:SS	Room Docs	Appending [Lab 1451] Site to UI
HH:MM:SS	Room Docs	Appending [Reimagine Workspaces] Site to UI
HH:MM:SS	Room Docs	Appending [Cisco] Site to UI
HH:MM:SS	Room Docs	UserInterface Built!
HH:MM:SS	Room Docs	Site Webview Opened for: [https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/]
HH:MM:SS	Room Docs	QR Webview Opened for: [https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/] {"status":"OK"} https://api.qrserver.com/v1/create-qr-code/?data=https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/
HH:MM:SS	Room Docs	Site Webview Opened for: [https://www.webex.com/us/en/workspaces.html]
HH:MM:SS	Room Docs	QR Webview Opened for: [https://www.webex.com/us/en/workspaces.html] {"status":"OK"} https://api.qrserver.com/v1/create-qr-code/?data=https://www.webex.com/us/en/workspaces.html

Lesson: Add a new Site to the Config _(rxe-m2.2.3)

Note

To check our work, let's expand our localSiteManifest to include 2 new sites

xAPI: N/A
Task:
- Select the Room Docs Configuration Macro and perform the next few tasks in this Macro
- Under the localSiteManifest Array add the following 2 sites and additional Properties following the same JSON format as the other sites
  - Site 1
    - Name: Cisco
    - Url: https://www.cisco.com
    - QrEnabled: false
  - Set 2 [Add Your Organizations Home Page]
    - Name: Your Org Name
    - Url: Your Org Site
    - QrEnabled: true
- Once complete, Save and Activate the Room Docs Macro (if inactive)
- Start pressing the Open Site and Open QrCode 🔳 buttons contained within your Room Docs panel
- Monitor the Device OSD and Macro Console Output

Compare your Room Docs Panel UI

Compare your Room Docs Configuration Macro

// EDIT MANIFEST URL HERE
const config = {
  manifestVisibility: 'merge', // localOnly, remoteOnly, merge
  remoteSiteManifest: 'https://raw.githubusercontent.com/WebexCC-SA/LAB-1451/refs/heads/main/docs/assets/downloadable_resources/3-4-3_remoteManifest.json',
  localSiteManifest: [
    {
      Name: 'Lab 1451',
      Url: 'https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/',
      QrEnabled: true
    },
    {
      Name: 'Reimagine Workspaces',
      Url: 'https://www.webex.com/us/en/workspaces.html',
      QrEnabled: true
    },
    {
      Name: 'Cisco',                // <-- Cisco Homepage Added
      Url: 'https://www.cisco.com',
      QrEnabled: true
    },
    // Your Org Details Below Here
  ]
};

export { config };

Centralize your Document List _(rxe-m2.3)

Abstract

Now that we have an interface that can build itself with small changes to a config file, let's make this a bit easier for our content creators and ourselves to manage

We can do this by leveraging the Codec's HTTPClient xAPIs to reach out to a single endpoint over HTTP that's hosting all of our document references and pull it down into the Codec before running the buildUI() function

Note

This lab is hosting a file called QuickDocs_remoteManifest.json on GitHub which contains 6 additional sites pre-configured in the same format as the local sites configured on the endpoint

Review the Remote Manifest File

Lesson: Add a Remote Site URL to your config object _(rxe-m2.3.1)

xAPI: N/A
Task:
- Select the Room Docs Configuration macro
- Edit the remoteSiteManifest object and assign the following url as a string
  - https://raw.githubusercontent.com/WebexCC-SA/LAB-1451/refs/heads/main/docs/assets/downloadable_resources/3-4-3_remoteManifest.json
- Once complete, Save, keep this macro Inactive

Compare your Room Docs Configuration Macro

// EDIT MANIFEST URL HERE
const config = {
  manifestVisibility: 'merge', // localOnly, remoteOnly, merge
  remoteSiteManifest: 'https://raw.githubusercontent.com/WebexCC-SA/LAB-1451/refs/heads/main/docs/assets/downloadable_resources/3-4-3_remoteManifest.json',
  localSiteManifest: [
    {
      Name: 'Lab 1451',
      Url: 'https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/',
      QrEnabled: true
    },
    {
      Name: 'Reimagine Workspaces',
      Url: 'https://www.webex.com/us/en/workspaces.html',
      QrEnabled: true
    },
    {
      Name: 'Cisco',
      Url: 'https://www.cisco.com',
      QrEnabled: true
    }
  ]
};

export { config };

Lesson: Declare a getRemoteSiteManifest() function _(rxe-m2.3.2)

Note

Here, we'll be making an HTTP Get request using the HTTPClient xAPI stack to reach out and pull information from a site external to the codec

Always Keep Security Top of Mind!

It's easy to fall outside your organization's security policy especially when building new solutions. Make sure you work with your, or your Customer's, Information Security teams before implementing a new solution that requires Integration Authentication of any kind or reaches out on the internet. The security implications of a solution can force you building your solution using a different integration method, or even stop a project all together.

Checkout Webex's Security Technical References

xAPI: xCommand HTTPClient Get

Task:

Select the Room Docs macro
Declare a new async function called getRemoteSiteManifest with no parameters

Within this function:

Declare a request object with a value of '' (Yes, no value assigned)
Declare a remoteData object with a value of [] (Yes, no value assigned)
Within a try...catch block, structure the xAPI path above in Macro Syntax with the following parameters and assign this to the request object
Use the JSON.parse() method on the request.Body (the response captured in the request object) and assign this to the remoteData object
- JSON.parse() allows us to later handler the data from the external site as if it were a JSON object, not a string
Use console.debug to log the remoteData object
Return the remoteData object
Catch and log any errors

Click the Tabs below to see each step outlined above

Declare Function and ObjectsAssign Request with xAPIParse Response and ReturnCatch and Log Errors (Full Func)

async function getRemoteSiteManifest() {
  let request = ''; // <-- Declare request object
  let remoteData = []; // <-- Declare remoteData object

}

async function getRemoteSiteManifest() {
  let request = '';
  let remoteData = [];

  try { // <-- Setup try...catch block
    request = await xapi.Command.HttpClient.Get({ // <-- Assign xCommand HTTPClient Get
      Url: config.remoteSiteManifest // <-- Assign remoteManifest URL from the config
    })

  } catch (e) {

  }
}

async function getRemoteSiteManifest() {
  let request = '';
  let remoteData = [];

  try {
    request = await xapi.Command.HttpClient.Get({
      Url: config.remoteSiteManifest
    })
    remoteData = JSON.parse(request.Body); // <-- Use JSON.parse to process the request.Body
    console.debug(`Remote Site Manifest Found`, remoteData); // <-- log the response to the debug console
    return remoteData // <-- return the remote site data
  } catch (e) {

  }
}

async function getRemoteSiteManifest() {
  let request = '';
  let remoteData = [];

  try {
    request = await xapi.Command.HttpClient.Get({
      Url: config.remoteSiteManifest
    })
    remoteData = JSON.parse(request.Body);
    console.debug(`Remote Site Manifest Found`, remoteData);
    return remoteData
  } catch (e) { // <-- Handle the possible Error
    const err = {
      Context: 'Failed to Get remote site manifest', // <-- Leave yourself clues to troubleshoot
      ...e
    }
    console.error(err); // <-- Log the error
  }
}

Once complete, Save and Activate the Room Docs Macro (if inactive)

Lesson: Integrate the getRemoteSiteManifest() function into the buildUI() function _(rxe-m2.3.3)

xAPI(s):
- xCommand HTTPClient Get
- xCommand UserInterface Extensions Panel Save

Task:

Select the Room Docs macro

Below the let rows declaration and above the config.localSiteManifest.forEach(...) loop, start a switch statement
We'll switch based on the config object's manifestVisibility value. This can be 1 of 3 values and should apply the following behaviors
- localOnly: The UI will only build sites that are found locally in the Codec's Room Docs Configuration macro
- remoteOnly: The UI will only build sites that are configured in our remoteSiteManifest Url
- merge: The UI will combine local and remote sites into the UI
- if the remoteSiteManifest Url is missing, you should ignore these values

Edit the buildUI() function

Copy the Switch Statement below into your buildUI() function

switch (config.manifestVisibility) {
  case 'remoteOnly':
    if (config.remoteSiteManifest != '' && config.remoteSiteManifest != undefined) { // <-- Check to see if the ==remoteSiteManifest== Url is configured
      config.localSiteManifest = await getRemoteSiteManifest(); // <-- overwrite configured localSiteManifest with the remoteSiteManifest
    }
    break;
  case 'merge':
    if (config.remoteSiteManifest != '' && config.remoteSiteManifest != undefined) { // <-- Check to see if the ==remoteSiteManifest== Url is configured
      config.localSiteManifest = [...config.localSiteManifest, ...await getRemoteSiteManifest()] // <-- overwrite configured localSiteManifest with a new Array, using both the current localSiteManifest and the remoteSiteManifest
    }
    break;
  case 'localOnly':
    // No Action Required
    break;
  default:
    console.warn(`Unknown manifestVisibility assignment: [${config.manifestVisibility}]`) // <-- Log unknown manifestVisibility values to the console
    break;
}

Once complete, Save and Activate the Room Docs Macro (if inactive)
Start pressing the Open Site and Open QrCode 🔳 buttons contained within your Room Docs panel
Monitor the Macro Console Output

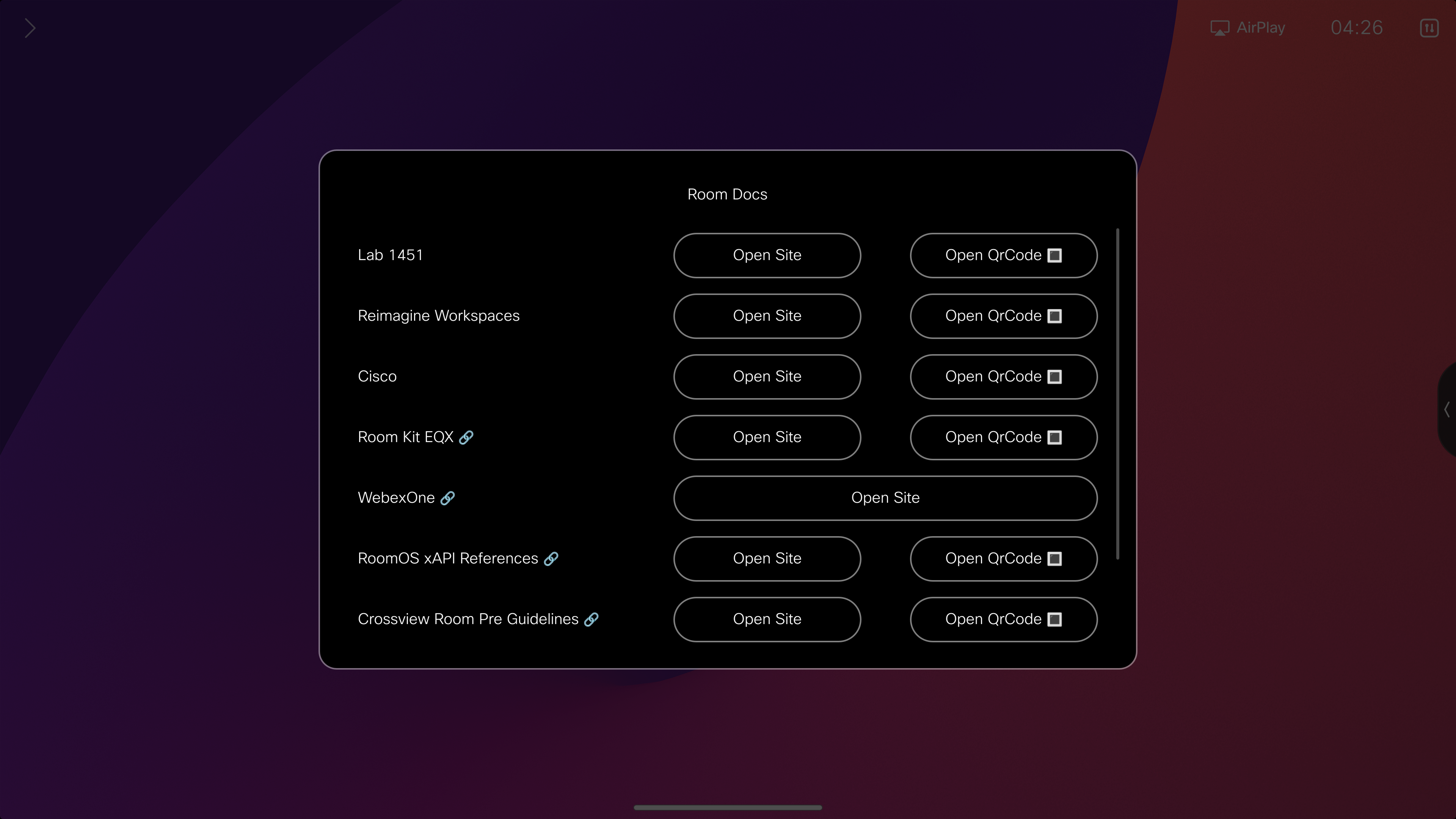

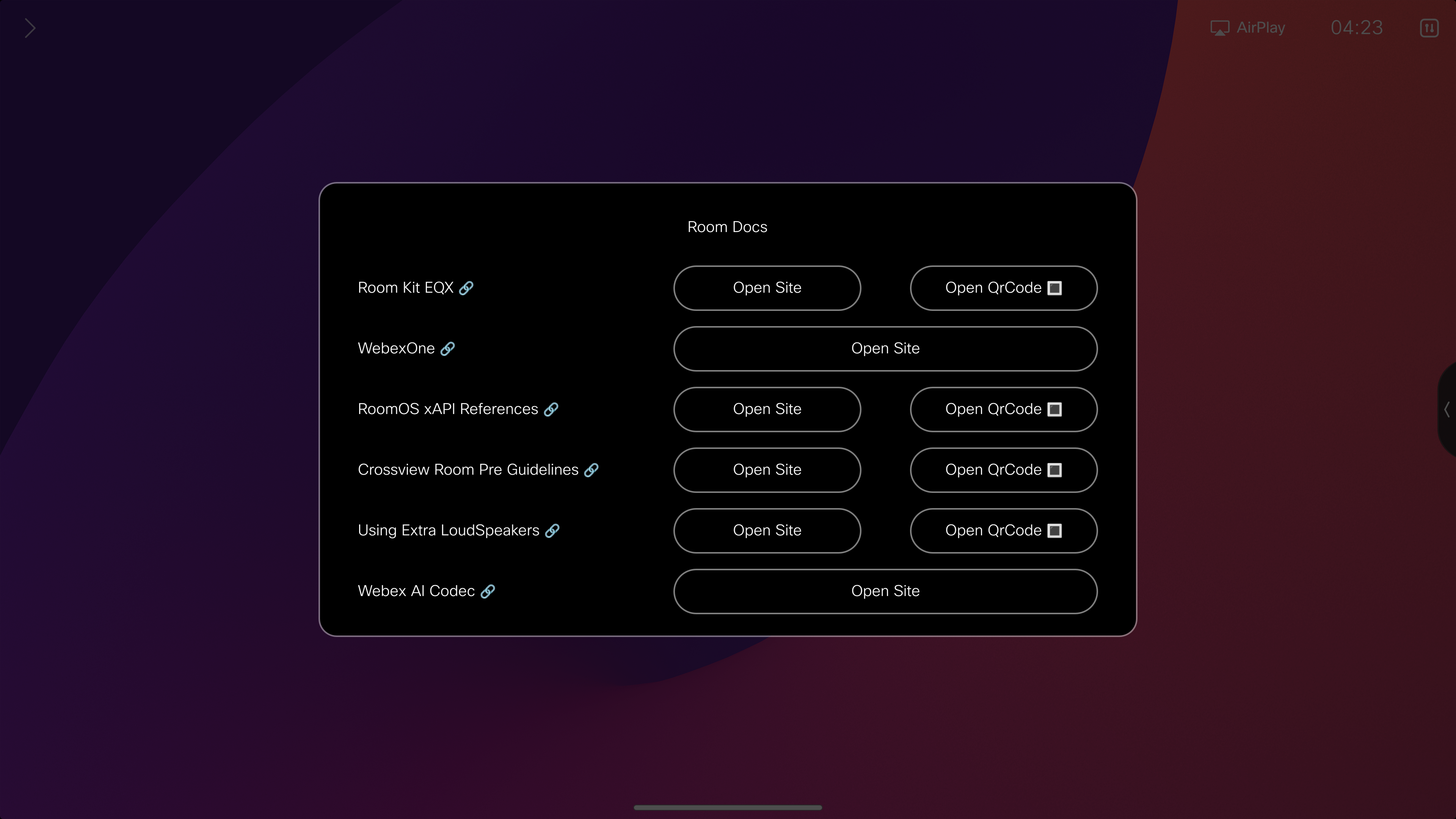

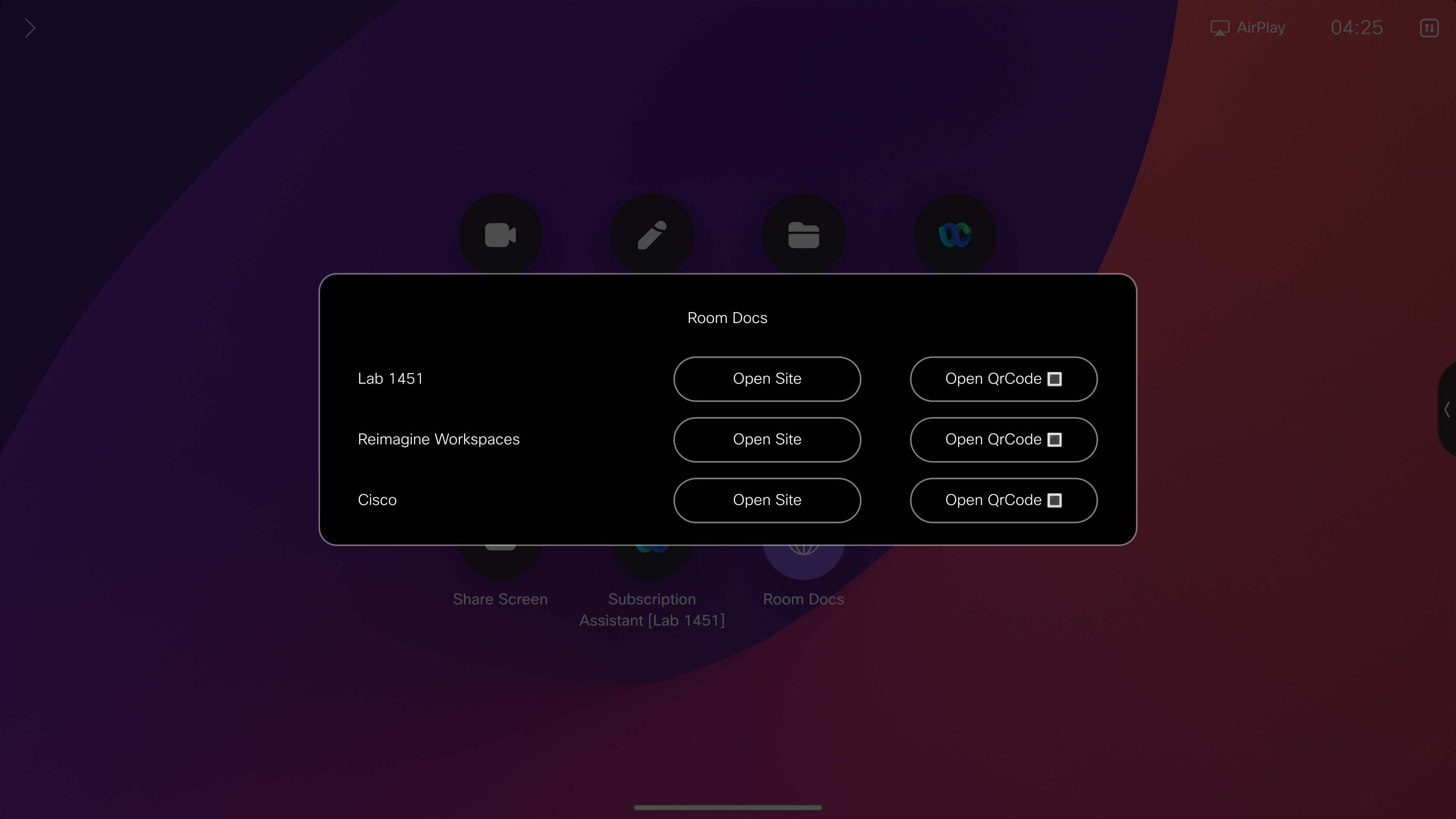

Compare your Room Docs Panel UI

Remote Sites are marked with a 🔗 emoji for clarity

Compare your Room Docs Macro

import xapi from 'xapi';
import { config } from './Room Docs Configuration';

console.log('Config:', config);

async function openSite(url, target = 'OSD') {
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: url,
      Target: target
    })
    console.log(`Site Webview Opened for: [${url}]`, openPage);
  } catch (e) {
    const err = {
      Context: `Failed to open Site WebView to: [${url}]`,
      ...e
    };
    throw new Error(err);
  }
}

async function openQrCode(url, target = 'OSD') {
  const encodedUrl = encodeURI(url);
  const qrURL = `https://api.qrserver.com/v1/create-qr-code/?data=` + encodedUrl;
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: qrURL,
      Target: target
    })
    console.log(`QR Webview Opened for: [${url}]`, openPage, qrURL);
  } catch (e) {
    const err = {
      Context: `Failed to open QR WebView to: [${url}]`,
      QrUrl: qrURL,
      ...e
    };
    console.error(err);
  }
}

async function getRemoteSiteManifest() {
  let request = '';
  let remoteData = [];

  try {
    request = await xapi.Command.HttpClient.Get({
      Url: config.remoteSiteManifest
    })
    remoteData = JSON.parse(request.Body);
    console.debug(`Remote Site Manifest Found`, remoteData);
    return remoteData
  } catch (e) {
    const err = {
      Context: 'Failed to Get remote site manifest',
      ...e
    }
    console.error(err);
  }
}

async function buildUI() {
  let rows = '';

  switch (config.manifestVisibility) {
    case 'remoteOnly':
      if (config.remoteSiteManifest != '' && config.remoteSiteManifest != undefined) {
        config.localSiteManifest = await getRemoteSiteManifest();
      }
      break;
    case 'merge':
      if (config.remoteSiteManifest != '' && config.remoteSiteManifest != undefined) {
        config.localSiteManifest = [...config.localSiteManifest, ...await getRemoteSiteManifest()]
      }
      break;
    case 'localOnly':
      // No Action Required
      break;
    default:
      console.warn(`Unknown manifestVisibility assignment: [${config.manifestVisibility}]`)
      break;
  }

  config.localSiteManifest.forEach(site => {
    console.log(`Appending [${site.Name}] Site to UI`);

    rows = rows + `<Row>
                    <Name>${site.Name}</Name>
                    <Widget>
                      <WidgetId>wx1_QrDocs~OpenSite~${site.Url}</WidgetId>
                      <Name>Open Site</Name>
                      <Type>Button</Type>
                      <Options>size=${site.QrEnabled ? 2 : 4}</Options>
                    </Widget>
                    ${site.QrEnabled ? `<Widget>
                      <WidgetId>wx1_QrDocs~OpenQrCode~${site.Url}</WidgetId>
                      <Name>Open QrCode 🔳</Name>
                      <Type>Button</Type>
                      <Options>size=2</Options>
                    </Widget>`: ''}
                  </Row>`;
  });

  const xml = `<Extensions>
                <Panel>
                  <Order>1</Order>
                  <Origin>local</Origin>
                  <Location>HomeScreenAndCallControls</Location>
                  <Icon>Language</Icon>
                  <Color>#875AE0</Color>
                  <Name>Room Docs</Name>
                  <ActivityType>Custom</ActivityType>
                  <Page>
                    <Name>Room Docs</Name>
                    ${rows}
                    <PageId>wx1_QrDocs~RoomDocs</PageId>
                    <Options/>
                  </Page>
                </Panel>
              </Extensions>`;

  try {
    const build = await xapi.Command.UserInterface.Extensions.Panel.Save({
      PanelId: 'wx1_QrDocs'
    }, xml);
    console.log('UserInterface Built!', build);
  } catch (e) {
    const err = {
      Context: `Failed to Build UserInterface`,
      ...e
    };
    console.error(err);
  };
};

buildUI();

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);

      switch (action) {
        case 'OpenSite':
          openSite(url);
          break;
        case 'OpenQrCode':
          openQrCode(url);
          break;
        default:
          console.error(`Unknown Action Fired: [${action}]`);
          break;
      };
    };
  };
});

Compare your Macro Console

| Time | Macro | Log | |------------|------------|------------------------------------------------------------------------------------------------------------------------------------------------------------| | 23:50:16 | Room Docs | QJS Ready | | 23:50:16 | Room Docs | Config: {"manifestVisibility":"merge","remoteSiteManifest":"https://raw.githubusercontent.com/WebexCC-SA/LAB-1451/refs/heads/main/docs/assets/downloadable_resources/3-4-3_remoteManifest.json","localSiteManifest":[{"Name":"Lab 1451","Url":"https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/","QrEnabled":true},{"Name":"Reimagine Workspaces","Url":"https://www.webex.com/us/en/workspaces.html","QrEnabled":true},{"Name":"Cisco","Url":"https://www.cisco.com","QrEnabled":true}]} | | 23:50:16 | Room Docs | Appending [Lab 1451] Site to UI | | 23:50:16 | Room Docs | Appending [Reimagine Workspaces] Site to UI | | 23:50:16 | Room Docs | Appending [Cisco] Site to UI | | 23:50:16 | Room Docs | Appending [Room Kit EQX 🔗] Site to UI | | 23:50:16 | Room Docs | Appending [WebexOne 🔗] Site to UI | | 23:50:16 | Room Docs | Appending [RoomOS xAPI References 🔗] Site to UI | | 23:50:16 | Room Docs | Appending [Crossview Room Pre Guidelines 🔗] Site to UI | | 23:50:16 | Room Docs | Appending [Using Extra LoudSpeakers 🔗] Site to UI | | 23:50:16 | Room Docs | Appending [Webex AI Codec 🔗] Site to UI | | 23:50:16 | Room Docs | UserInterface Built! {"status":"OK"} | | 23:50:31 | Room Docs | Site Webview Opened for: [https://webexcc-sa.github.io/LAB-1451/wx1_1451_part_3/] {"status":"OK"} | | 23:50:50 | Room Docs | QR Webview Opened for: [https://www.cisco.com] {"status":"OK"} https://api.qrserver.com/v1/create-qr-code/?data=https://www.cisco.com | | 23:50:54 | Room Docs | Site Webview Opened for: [https://roomos.cisco.com/xapi] {"status":"OK"} | | 23:51:02 | Room Docs | QR Webview Opened for: [https://www.cisco.com/c/dam/en/us/td/docs/telepresence/endpoint/ce97/extra-loudspeakers-local-reinforcement-guide-ce97.pdf] {"status":"OK"} https://api.qrserver.com/v1/create-qr-code/?data=https://www.cisco.com/c/dam/en/us/td/docs/telepresence/endpoint/ce97/extra-loudspeakers-local-reinforcement-guide-ce97.pdf | | 23:51:04 | Room Docs | Site Webview Opened for: [https://blog.webex.com/collaboration/hybrid-work/next-level-audio-with-webex-ai-codec/] {"status":"OK"} |

Lesson: Refresh you UI More Frequently _(rxe-m2.3.3)

With the external manifest file now being fetched and integrated into our UserInterface, we've introduced a new problem. Now we have a hard coded manifest, which will always refresh when we save over the Room Docs Configuration macro, but will only update the external manifest when the Macro Runtime Restarts

The Macro Runtime is what processes and executes the code we provide. It's what makes all of this come to life and it only restarts when

The RoomOS Device Restarts
The Runtime is restarted or activated via the RoomOS xAPI
Or by toggling Macros either on the Device Web UI or through Control Hub

Where as this can happen less frequently, we'll need to add in some logic to request that manifest more frequently.

For our case, subscribing to the Panel Clicked event and re-running our buildUI() function should do fine.

xAPI: xEvent UserInterface Extensions Panel Clicked
Task:
- Subscribe the xAPI Path above using Macro Syntax
- Take the Callback information generated by this event, and log it to the Macro Console using console.log()
- Use and if statement to listen for when our PanelId wx1_QrDocs
- When this resolves true, re-run the buildUI() function
- Else, do nothing
- Once complete, Save and Activate the macro (if inactive)
- Press the Room Docs and Monitor the Macro Console Output. You should see the same output as in Lesson rxe-m2.3.2

View a successful Panel Clicked Subscription

xapi.Event.UserInterface.Extensions.Panel.Clicked.on(({ PanelId}) => {
  console.log({ PanelId});
  if (PanelId == 'wx1_QrDocs') {
    buildUI();
  };
});

Compare your Macro

Compare your Room Docs Macro

import xapi from 'xapi';
import { config } from './Room Docs Configuration';

console.log('Config:', config);

async function openSite(url, target = 'OSD') {
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: url,
      Target: target
    })
    console.log(`Site Webview Opened for: [${url}]`, openPage);
  } catch (e) {
    const err = {
      Context: `Failed to open Site WebView to: [${url}]`,
      ...e
    };
    throw new Error(err);
  }
}

async function openQrCode(url, target = 'OSD') {
  const encodedUrl = encodeURI(url);
  const qrURL = `https://api.qrserver.com/v1/create-qr-code/?data=` + encodedUrl;
  try {
    const openPage = await xapi.Command.UserInterface.WebView.Display({
      Url: qrURL,
      Target: target
    })
    console.log(`QR Webview Opened for: [${url}]`, openPage, qrURL);
  } catch (e) {
    const err = {
      Context: `Failed to open QR WebView to: [${url}]`,
      QrUrl: qrURL,
      ...e
    };
    console.error(err);
  }
}

async function getRemoteSiteManifest() {
  let request = '';
  let remoteData = [];

  try {
    request = await xapi.Command.HttpClient.Get({
      Url: config.remoteSiteManifest
    })
    remoteData = JSON.parse(request.Body);
    console.debug(`Remote Site Manifest Found`, remoteData);
    return remoteData
  } catch (e) {
    const err = {
      Context: 'Failed to Get remote site manifest',
      ...e
    }
    console.error(err);
  }
}

async function buildUI() {
  let rows = '';

  switch (config.manifestVisibility) {
    case 'remoteOnly':
      if (config.remoteSiteManifest != '' && config.remoteSiteManifest != undefined) {
        config.localSiteManifest = await getRemoteSiteManifest();
      }
      break;
    case 'merge':
      if (config.remoteSiteManifest != '' && config.remoteSiteManifest != undefined) {
        config.localSiteManifest = [...config.localSiteManifest, ...await getRemoteSiteManifest()]
      }
      break;
    case 'localOnly':
      // No Action Required
      break;
    default:
      console.warn(`Unknown manifestVisibility assignment: [${config.manifestVisibility}]`)
      break;
  }

  config.localSiteManifest.forEach(site => {
    console.log(`Appending [${site.Name}] Site to UI`);

    rows = rows + `<Row>
                    <Name>${site.Name}</Name>
                    <Widget>
                      <WidgetId>wx1_QrDocs~OpenSite~${site.Url}</WidgetId>
                      <Name>Open Site</Name>
                      <Type>Button</Type>
                      <Options>size=${site.QrEnabled ? 2 : 4}</Options>
                    </Widget>
                    ${site.QrEnabled ? `<Widget>
                      <WidgetId>wx1_QrDocs~OpenQrCode~${site.Url}</WidgetId>
                      <Name>Open QrCode 🔳</Name>
                      <Type>Button</Type>
                      <Options>size=2</Options>
                    </Widget>`: ''}
                  </Row>`;
  });

  const xml = `<Extensions>
                <Panel>
                  <Order>1</Order>
                  <Origin>local</Origin>
                  <Location>HomeScreenAndCallControls</Location>
                  <Icon>Language</Icon>
                  <Color>#875AE0</Color>
                  <Name>Room Docs</Name>
                  <ActivityType>Custom</ActivityType>
                  <Page>
                    <Name>Room Docs</Name>
                    ${rows}
                    <PageId>wx1_QrDocs~RoomDocs</PageId>
                    <Options/>
                  </Page>
                </Panel>
              </Extensions>`;

  try {
    const build = await xapi.Command.UserInterface.Extensions.Panel.Save({
      PanelId: 'wx1_QrDocs'
    }, xml);
    console.log('UserInterface Built!', build);
  } catch (e) {
    const err = {
      Context: `Failed to Build UserInterface`,
      ...e
    };
    console.error(err);
  };
};

buildUI();

xapi.Event.UserInterface.Extensions.Widget.Action.on(({ WidgetId, Type, Value }) => {
  console.debug({ WidgetId, Type, Value });
  if (WidgetId.includes(`wx1_QrDocs`)) {
    if (Type == 'released') {
      const [app, action, url] = WidgetId.split(`~`);

      switch (action) {
        case 'OpenSite':
          openSite(url);
          break;
        case 'OpenQrCode':
          openQrCode(url);
          break;
        default:
          console.error(`Unknown Action Fired: [${action}]`);
          break;
      };
    };
  };
});

xapi.Event.UserInterface.Extensions.Panel.Clicked.on(({ PanelId}) => {
  console.log({ PanelId});
  if (PanelId == 'wx1_QrDocs') {
    buildUI();
  };
});

Lesson: Adjust the manifestVisibility value in the config object _(rxe-m2.3.4)

Info

Last, but certainly not least, is a demonstration that shows what the manifestVisibility value can affect when changed

xAPI: N/A
Task:
- Select the Room Docs Configuration macro
- Change the value of manifestVisibility to 1 of the 3 values below
  - localOnly
  - remoteOnly
  - merge
- Once complete, Save and Activate the Room Docs Macro (if inactive)
- Start pressing the Open Site and Open QrCode 🔳 buttons contained within your Room Docs panel
- Repeat for each manifestVisibility Value
Click the tabs below to see the differences of each manifestVisibility Value
localOnlyremoteOnlymerge
Syntax
manifestVisibility: 'localOnly',

Local Panel UI
Syntax
manifestVisibility: 'remoteOnly',

Remote Panel UI
Syntax
manifestVisibility: 'merge',

Remote and Local Panel UI

Quick Docs Macro Exercise - Part 2 - Optimize (section rxe-m2)

Section rxe-m1 Requirements

Part 2 Solution Outline

Implementing imports and exports (rxe-m2.1)

Automating the UserInterface (rxe-m2.2)

Centralize your Document List (rxe-m2.3)

Quick Docs Macro Exercise - Part 2 - Optimize _{(section rxe-m2)}

Implementing imports and exports _(rxe-m2.1)

Automating the UserInterface _(rxe-m2.2)

Centralize your Document List _(rxe-m2.3)
