Task 2 - Integrate Saleforce Connector with WebRTC

Please use the following credentials to complete the tasks:
Control Hub https://admin.webex.com
Salesforce https://login.salesforce.com/
WxCC Username labuserID@wx1.wbx.ai (where ID is your selected pod number (01 through 10); i.e. labuser02@wx1.wbx.ai if selected pod is 2)
WxCC Password webexONE1!
Salesforce Username As provided by the instructor
Salesforce Password As provided by the instructor

Task Objectives

  • Login with WebRTC on Salesforce.
  • Troubleshoot and configure the steps needed to enable WebRTC login

Section 1 - Using WebRTC Option

Attention

Please use the Firefox browser to access, configure, and test within the Salesforce portal.

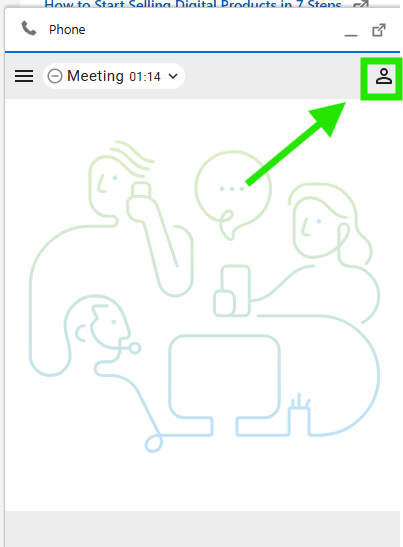

  • Navigate to Agent Desktop and select the Avatar on the top right

Nav

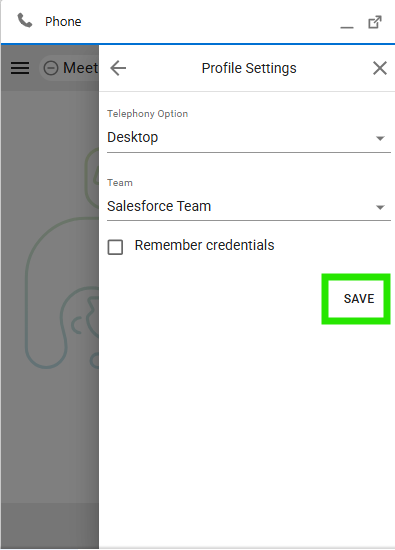

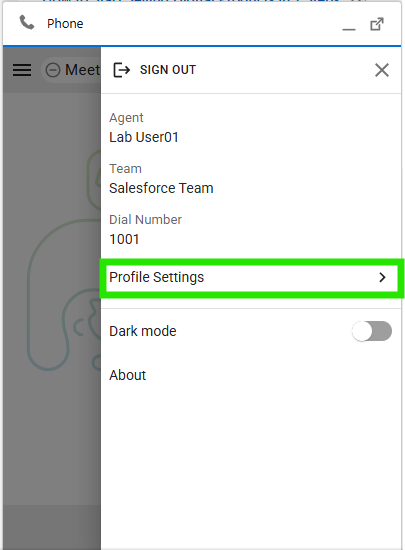

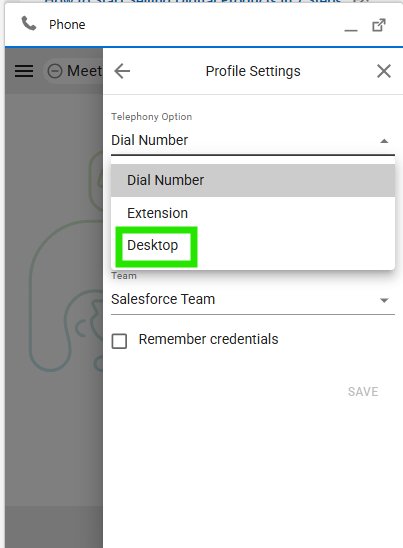

  • Navigate to 'Profile Settings > Desktop > Save' (or type Call Centers in the search bar above the left-hand menu).

Nav Nav Nav

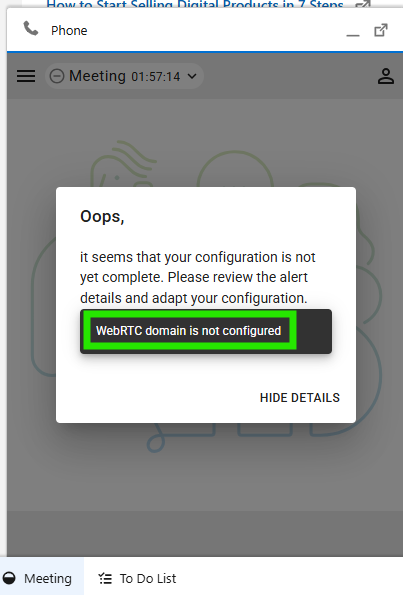

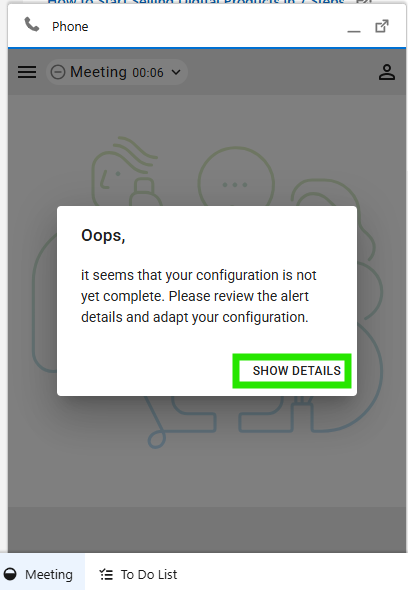

  • Once the Save button is hit, the error message pops up "WebRTC domain is not configured"

Nav Nav

Section 2 - Steps to Correct and Enable WebRTC Login

  • In order to mitigate this issue, on the Salesforce portal, navigate to 'Feature Settings > Service > Call Center > Call Centers' (or type Call Centers in the search bar above the left-hand menu).
  • Click 'Edit' on the the call center definition file WxCC Call Center

Nav

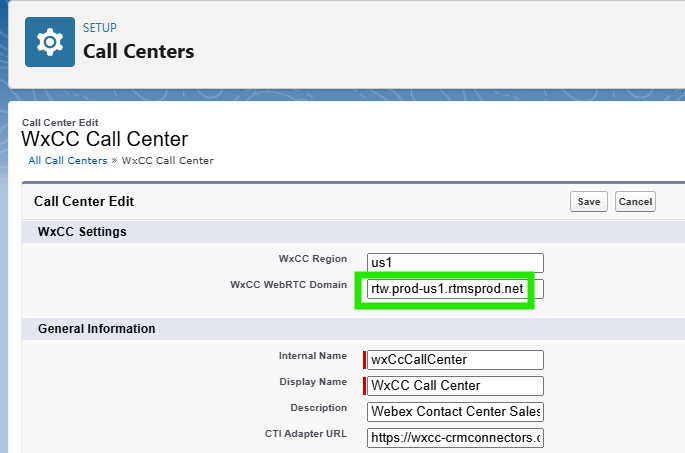

  • Enter 'rtw.prod-us1.rtmsprod.net' in the 'WxCC WebRTC Domain'

Nav

Note

The region defined here should match your Webex Contact Center region. Please refer to the Call Center configuration customizations section for the list of the domains for other regions

  • Click 'Save'.

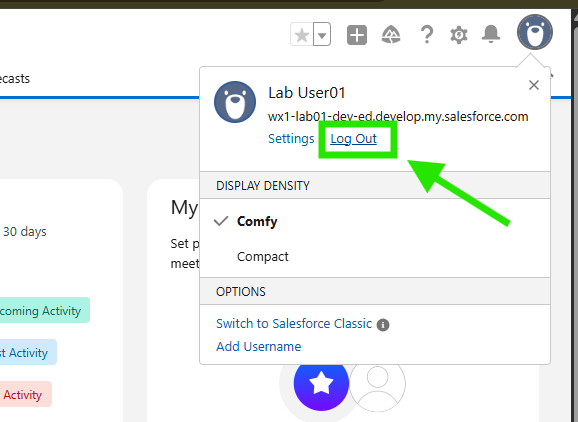

  • Logout and log back in to salesforce.

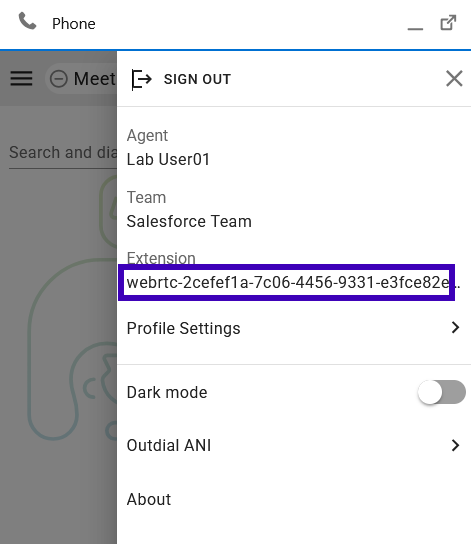

Nav

Section 3 - Testing

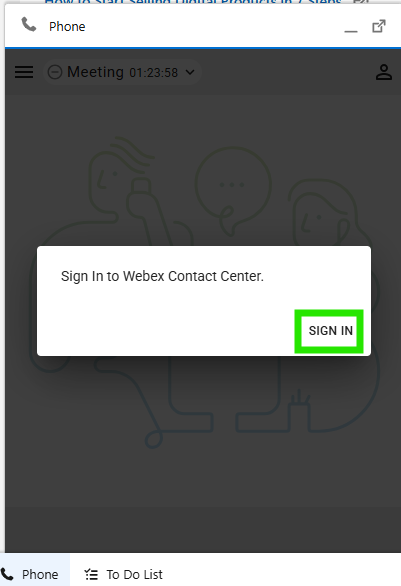

  • Open the Webex Contact Center phone widget (bottom left) and login to Webex Contact Center Agent Desktop using the selected Webex Contact Center user credentials (e.g., labuserID@wwx1.wbx.ai):

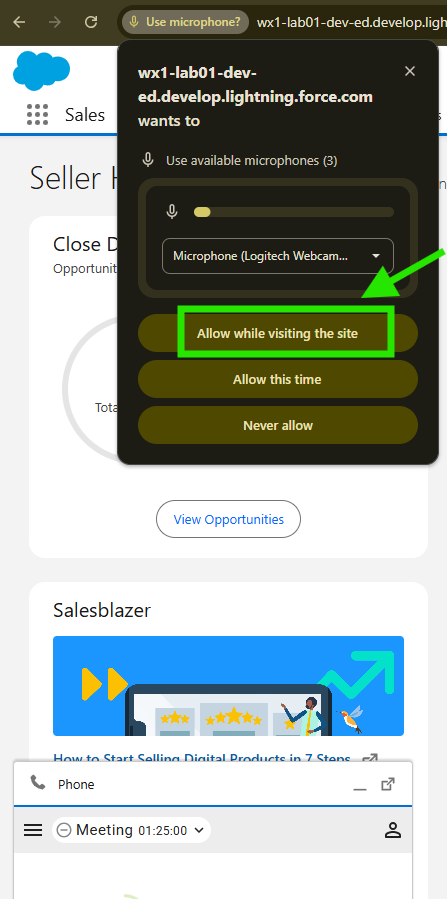

  • Enable the microphone option as show below.

Nav Nav

  • Congratulations! You have complete the task.
