Mission 1: Create Chat Appliction and configure Webex Engage

Mission Objective

In this mission, you need to complete web chat configuration tasks, including creating a Chat Asset, linking it to a Channel, and test website.

Build

Task 1. Find your Service.

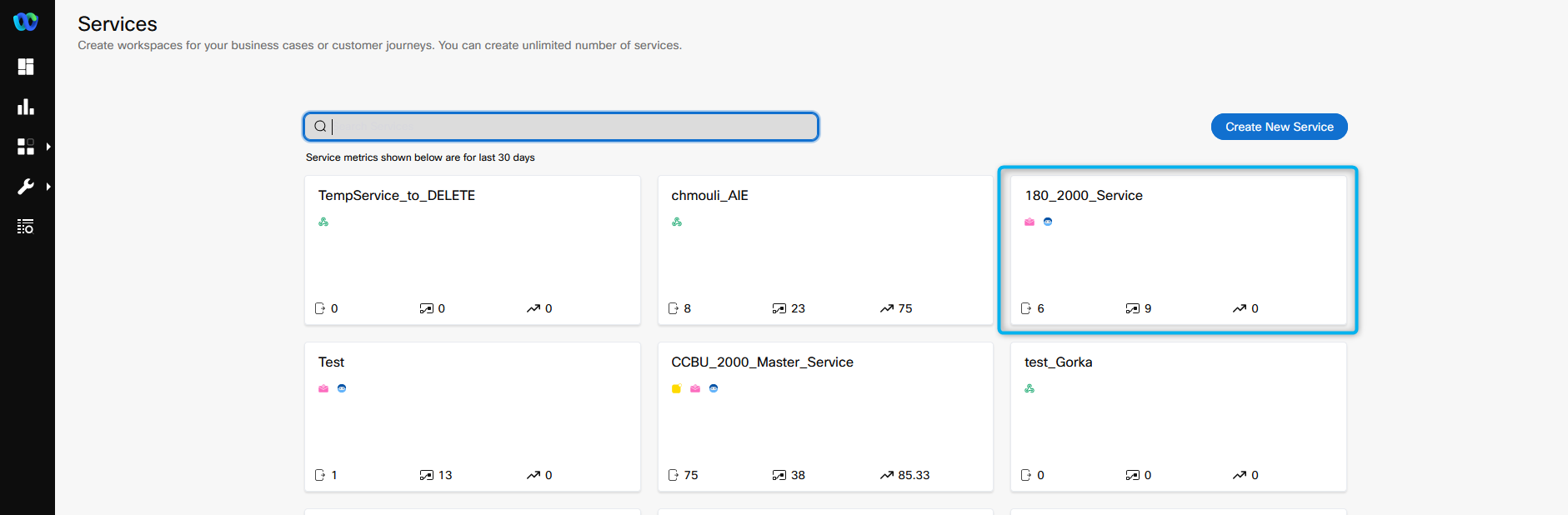

1. Login to Webex Connect Portal. Go to Services and look for the service that you have created earlier. The name should be _2000_Service

Task 2. Configure and Register Chat Asset.

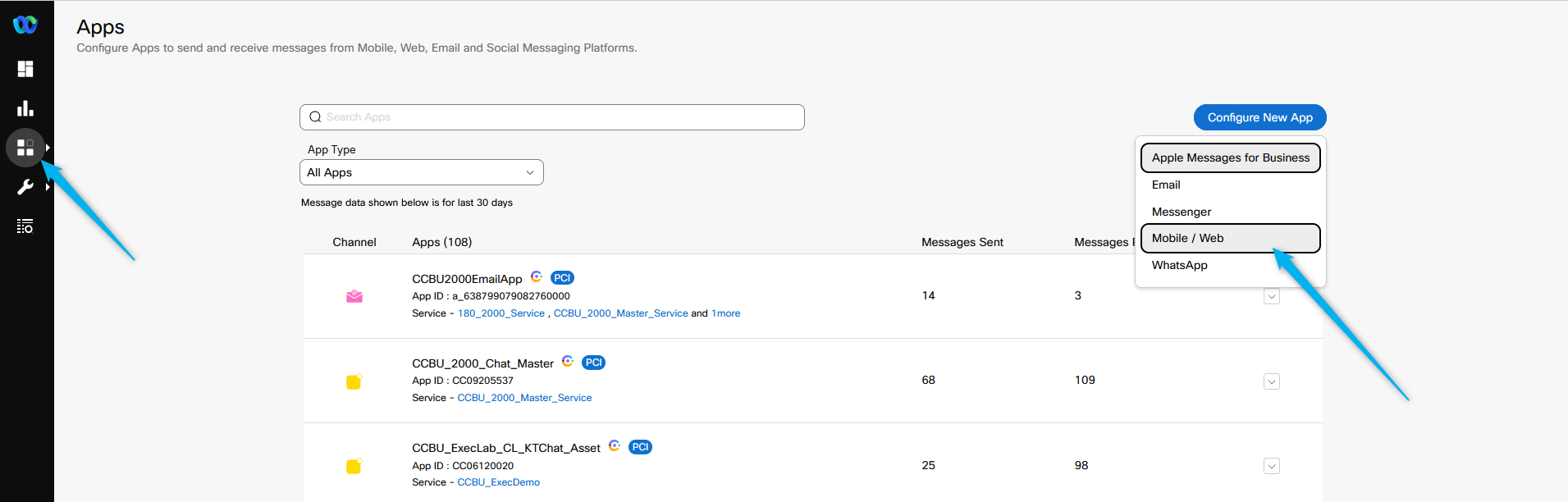

1. While on Webex Connect portal, go to Assets -> Apps, press Configure New App and select Mobile / Web option.

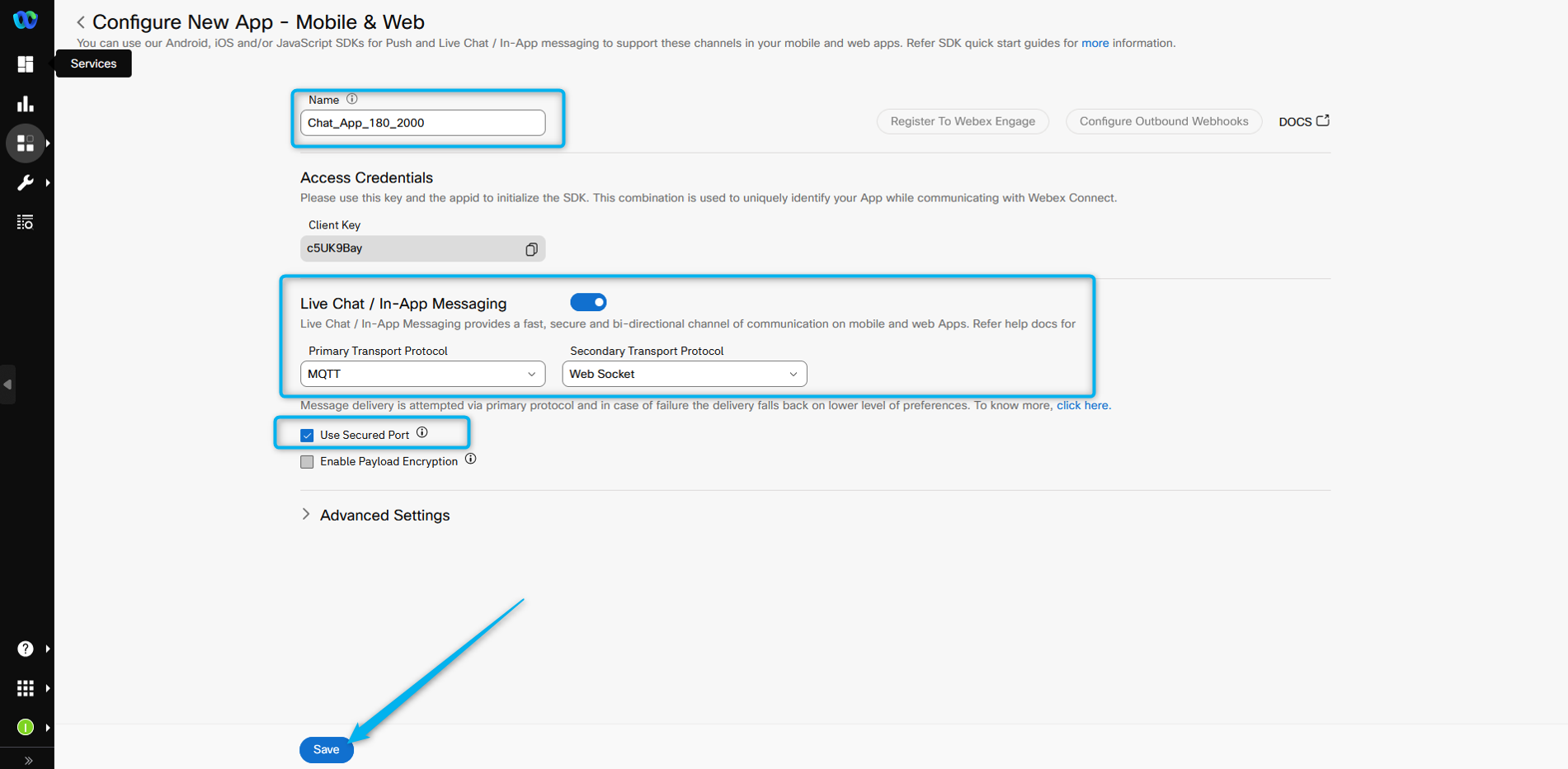

2. Input Name as Chat_App__2000

3. Toggle/enable Live Chat / In-AppMessaging to ON and choose Primary Transport Protocol as MQTT & Secondary Transport Protocol as Web Socket then tick Use Secured Port checkbox and press Save button.

   Note: If there is an error that your request cannot be processed, please press Save button one more time.

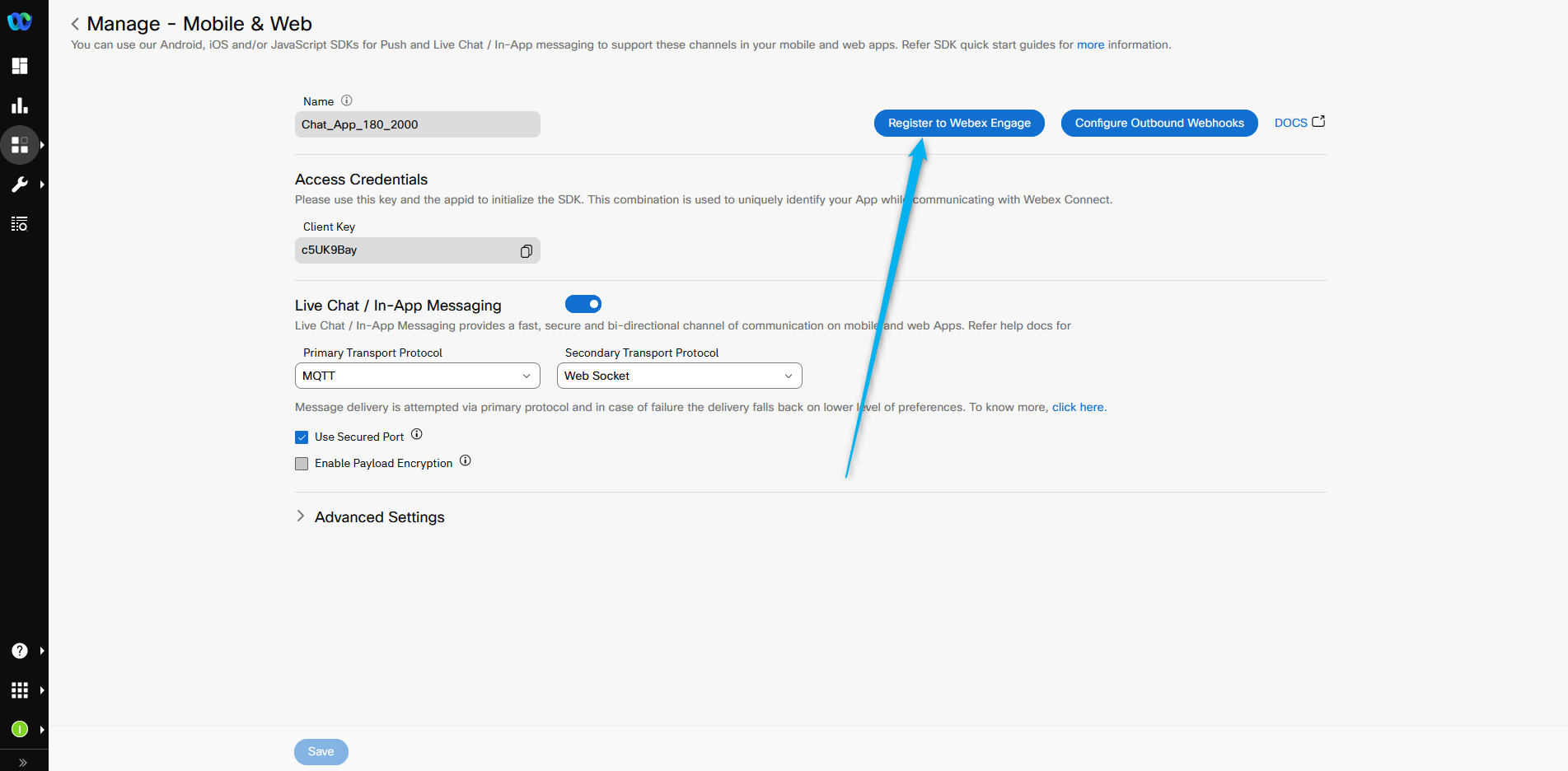

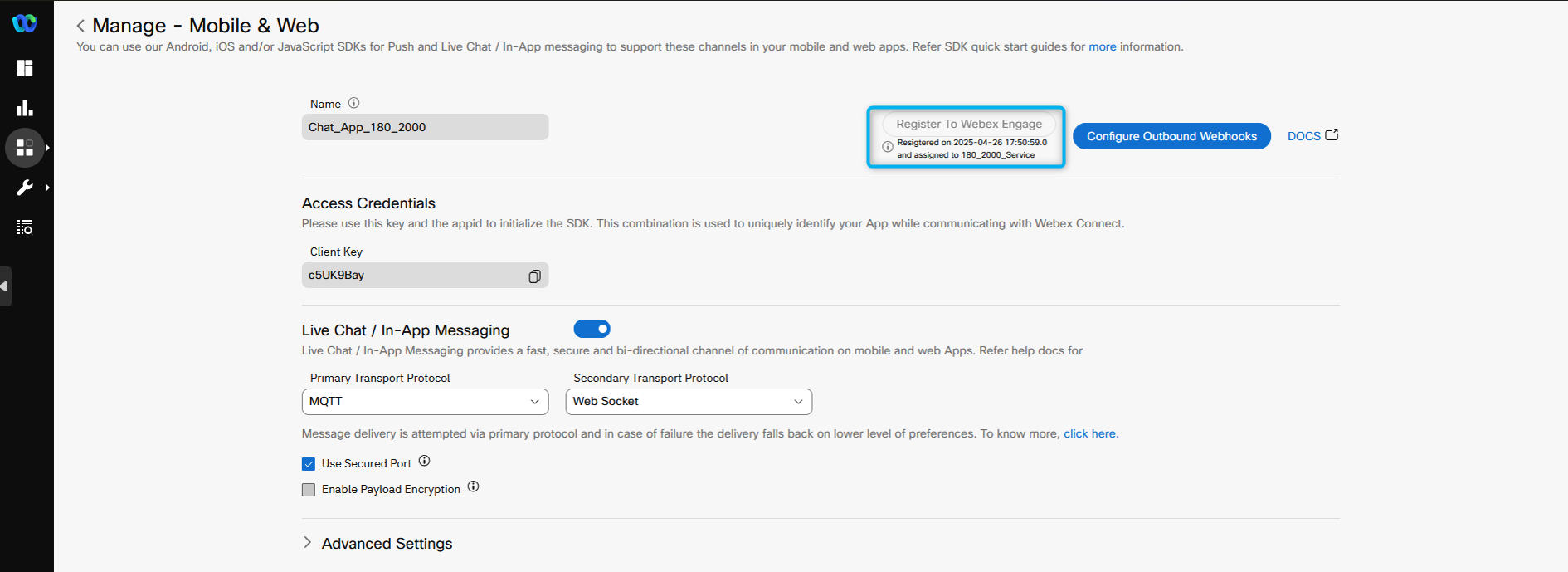

4. Once asset is saved, press Register To Webex Engage at the top.

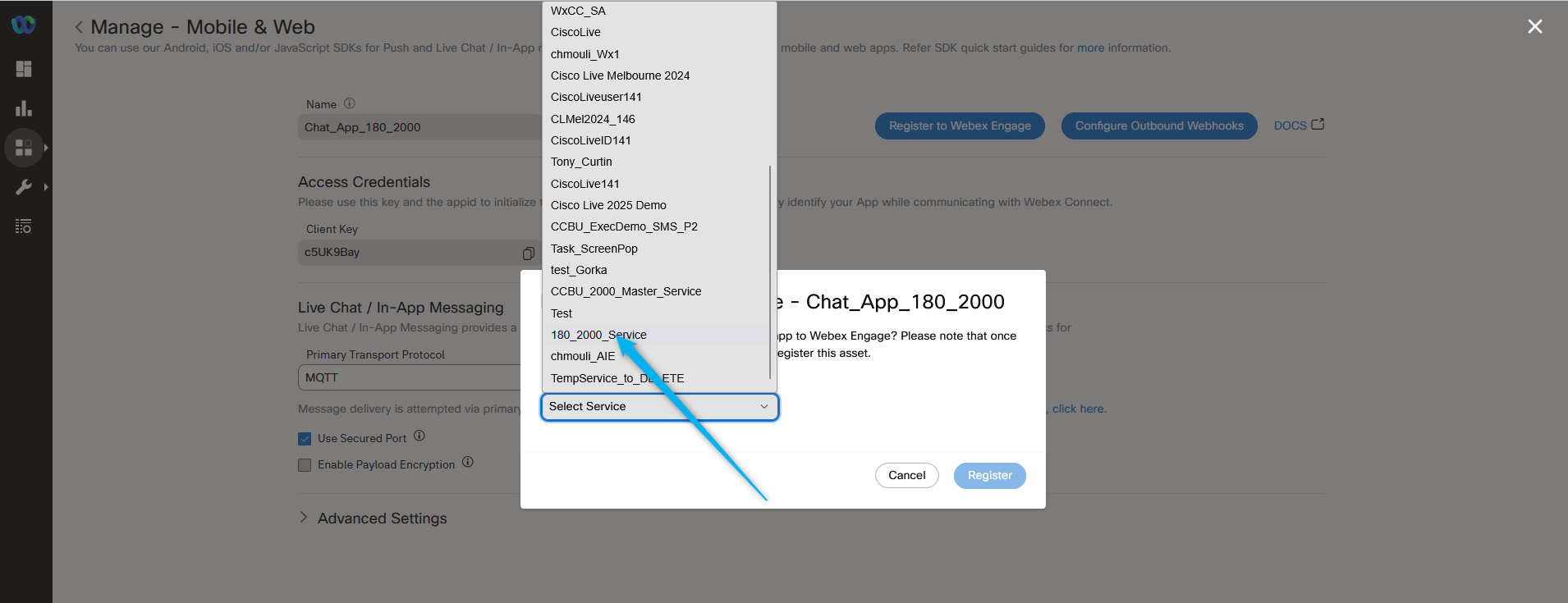

5. Choose _2000_Service from the drop-down list and press Register button.

6. Check and make sure the asset has been succesfully registered to the service and Register To Webex Engage button has been greyed out.

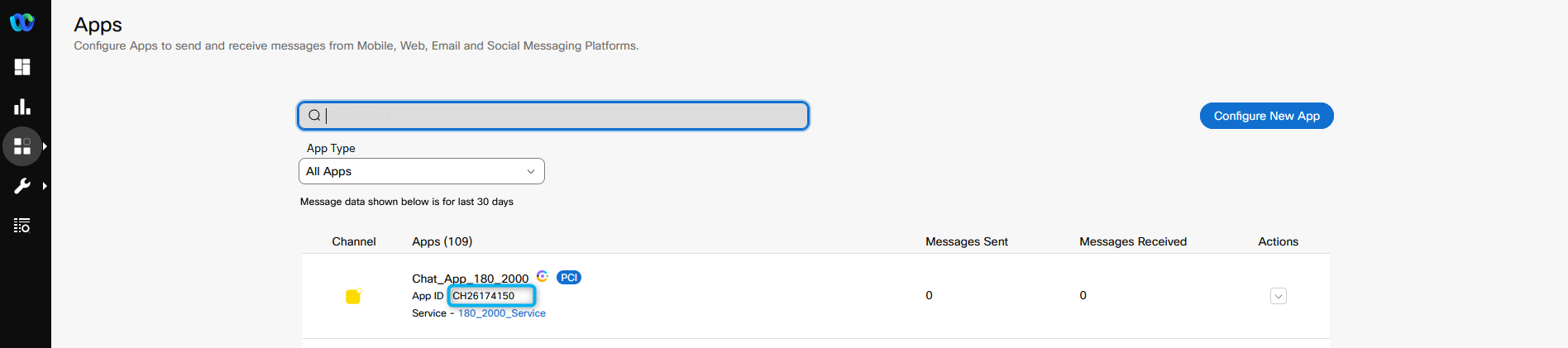

7. Return to Assets -> Apps, find ChatAsset, copy App ID, paste it into the text file and save. We will use it when configuring chat flow later.

Task 3. Create Entry Point for Chat

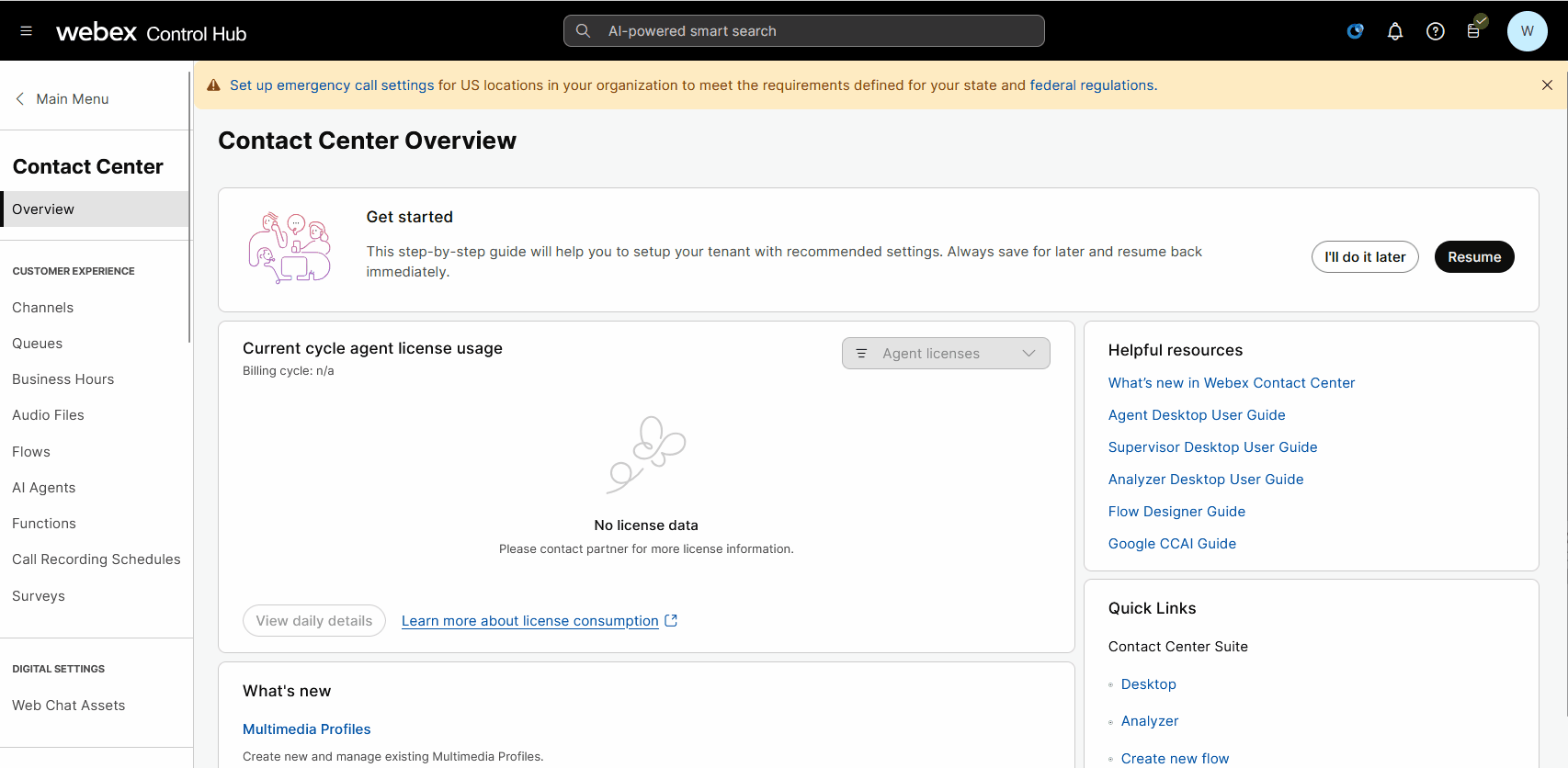

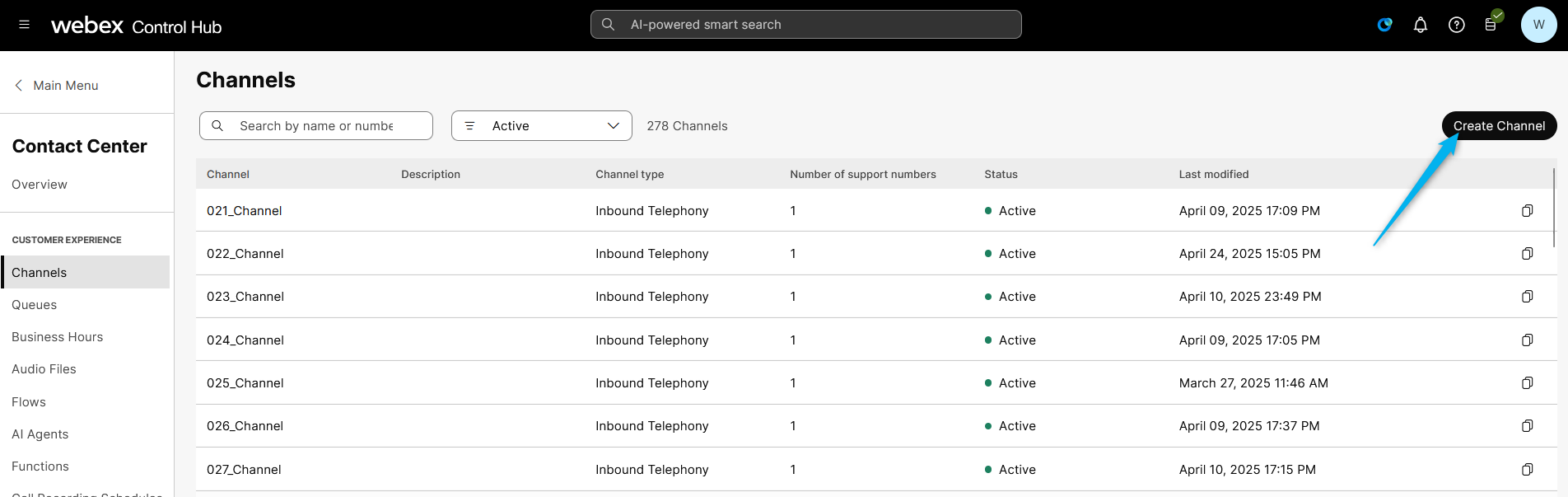

1. Login to Control Hub and go to Channels and click on Create Channel.

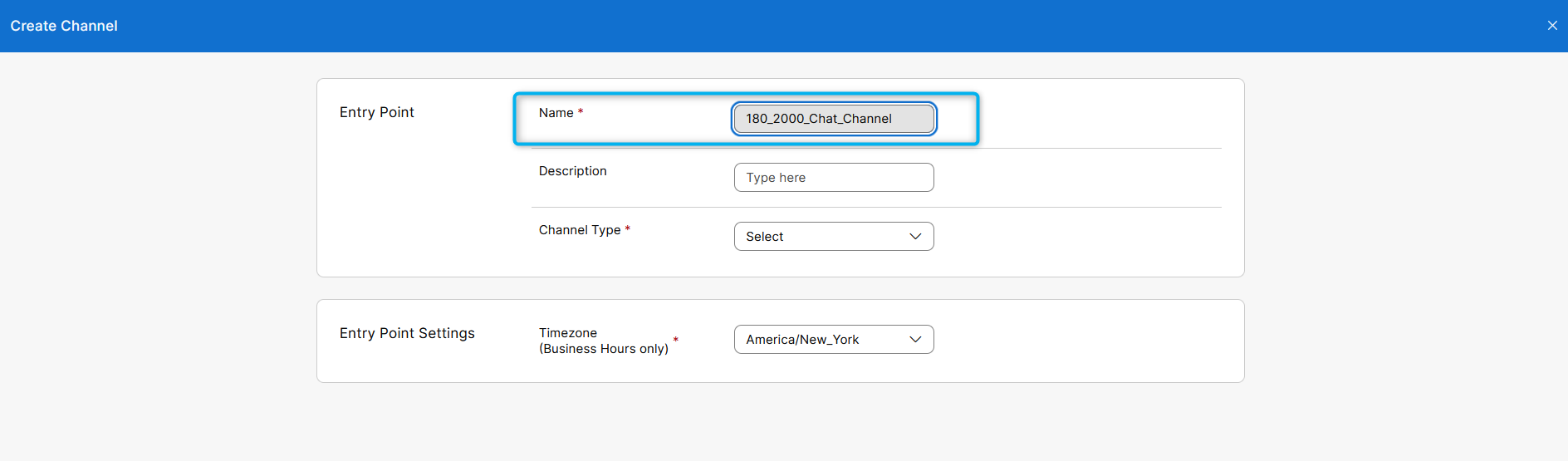

2. Input Name as Your_Attendee_ID_2000_Chat_Channel

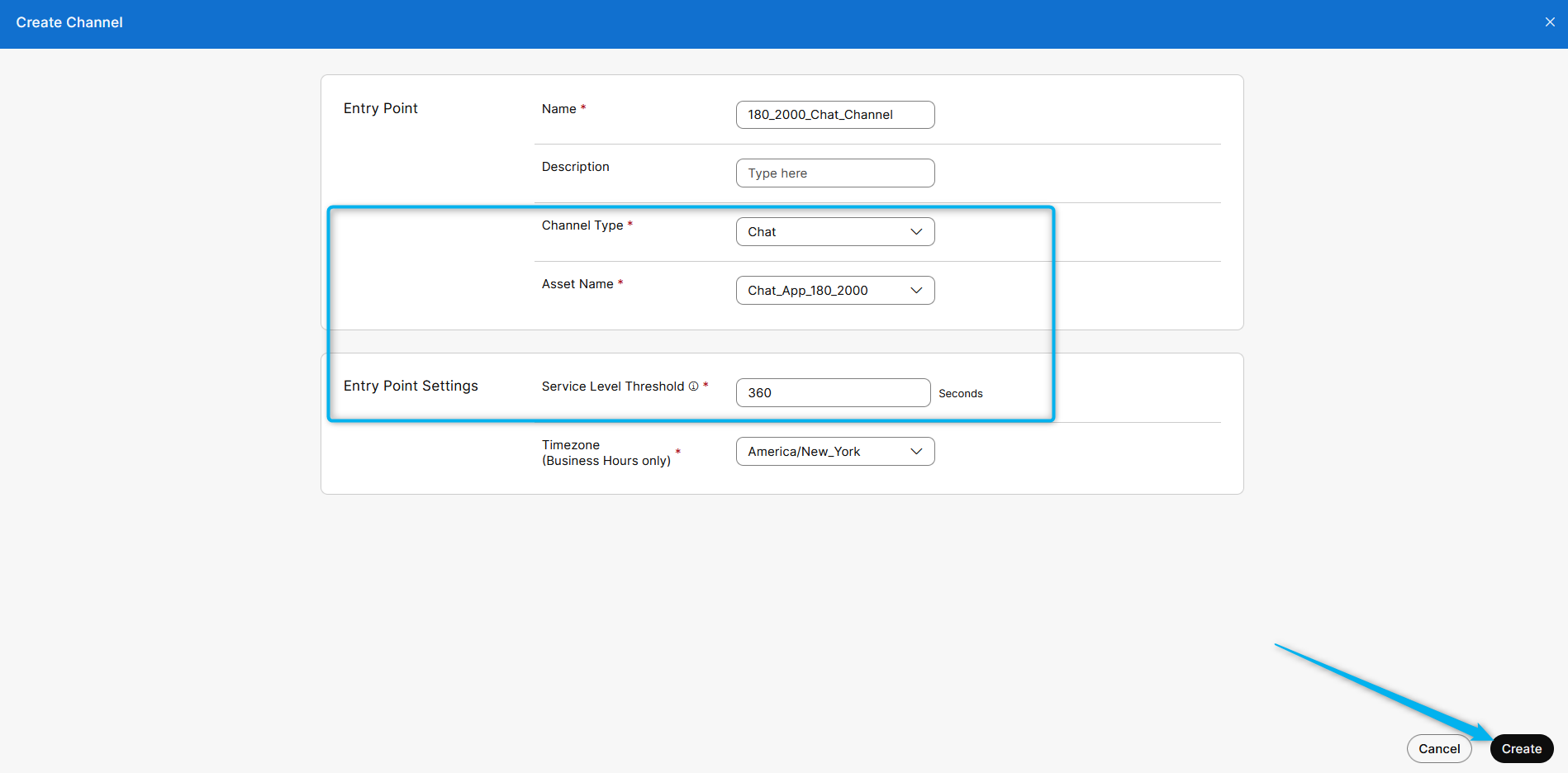

3. Select Chat from the Channel Type drop-down list. Select Chat_App_Your_Attendee_ID_2000 as an Asset Name. Set Service Level Threshold as 360 and click on Save.

Task 4. Create Queue for Chat

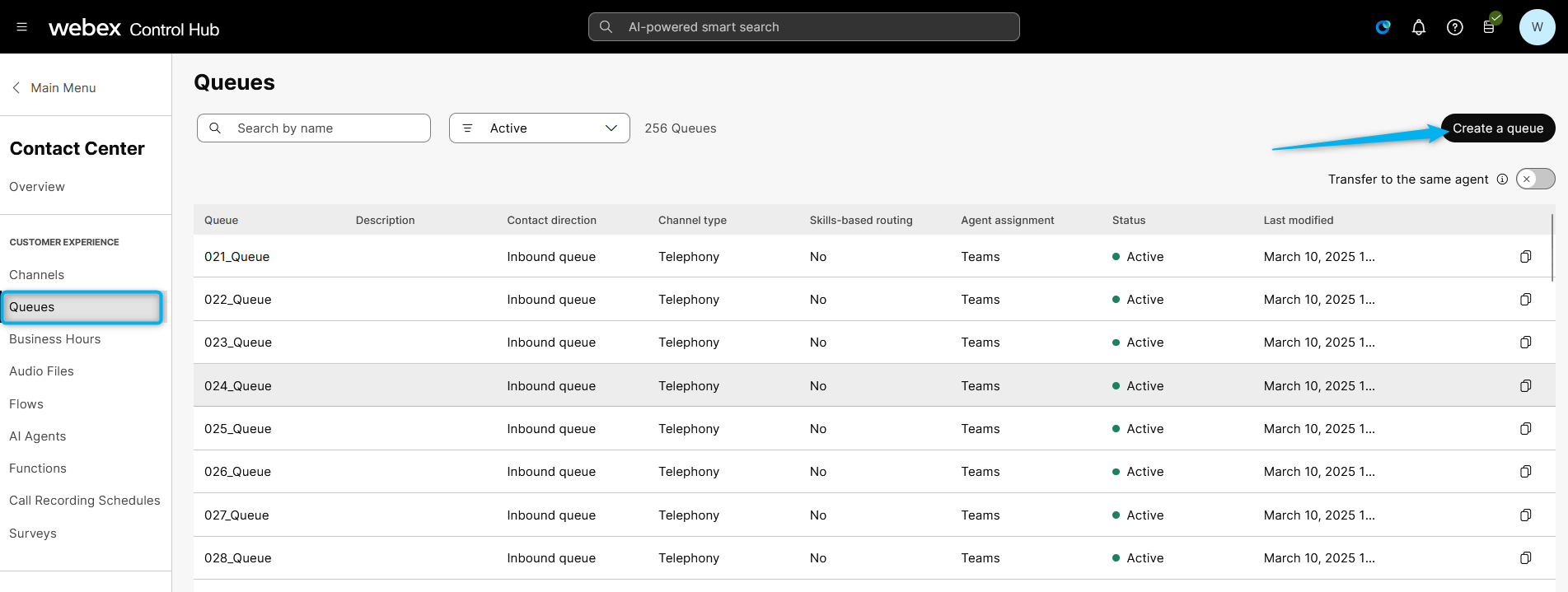

1. While on the Control Hub portal go to Queues and click on Create a queue.

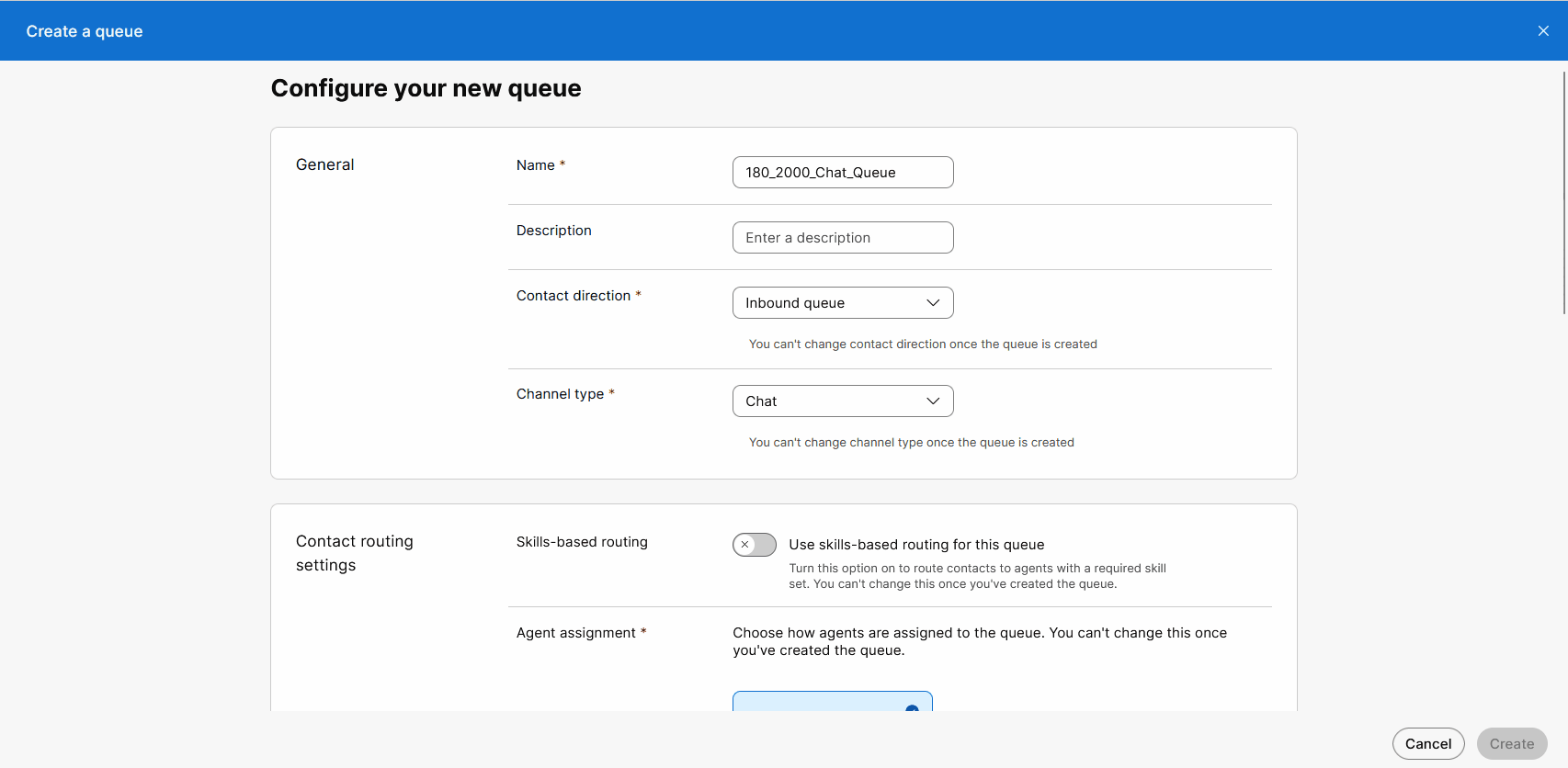

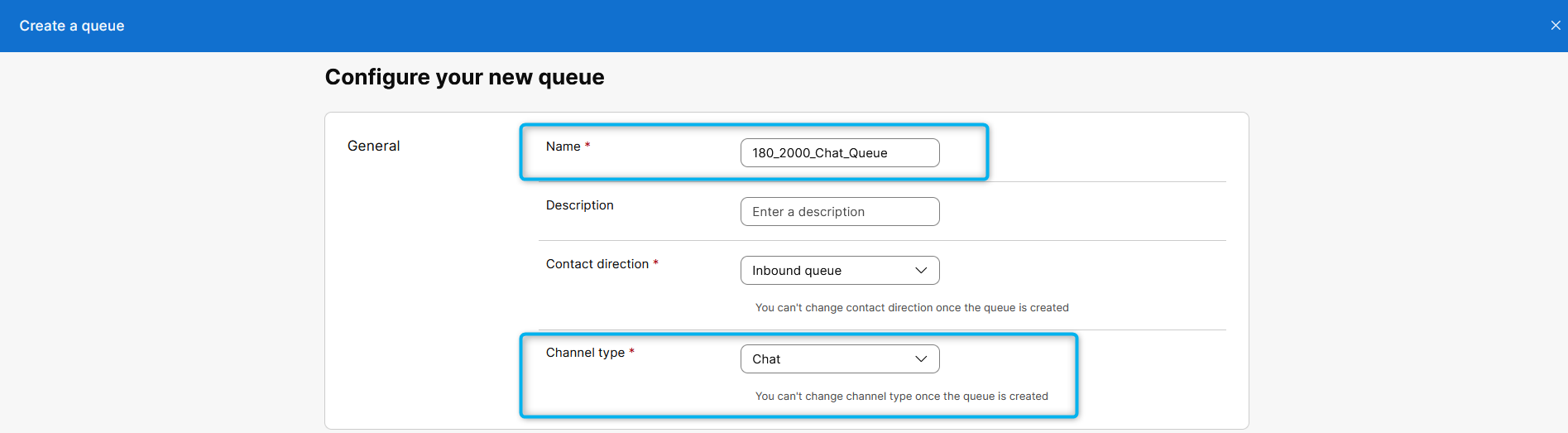

2. Input Name as _2000_Chat_Queue. Also select Chat in the Channel Type section.

3. Scroll down to Chat Distribution click on Add Group and select _2000_Team

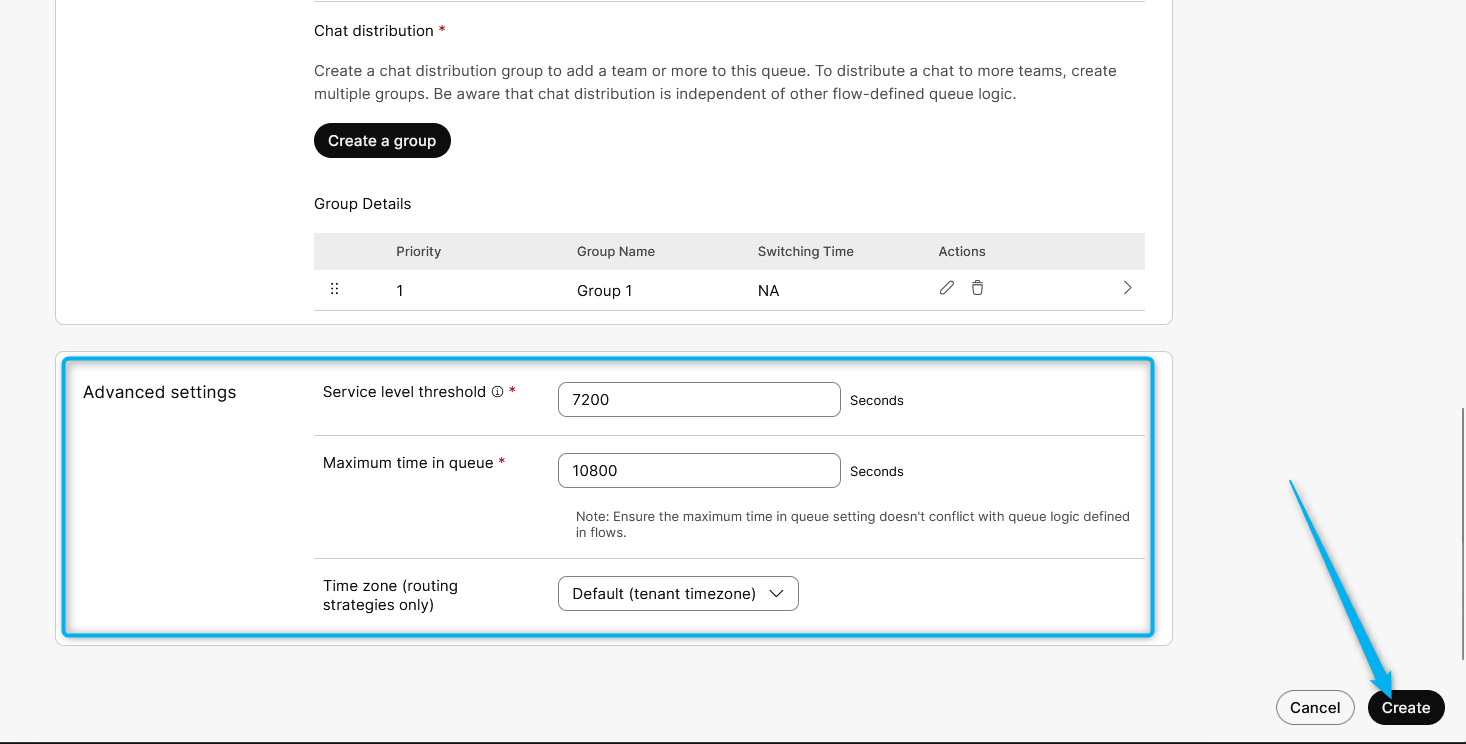

4. Set Service Level Threshold as 7200 seconds (2 hours). Set Maximum Time in Queue as 10800 seconds (3 hours). Click on Save after comparing your values with the screenshot below.

Task 5. Website Widget Configuration

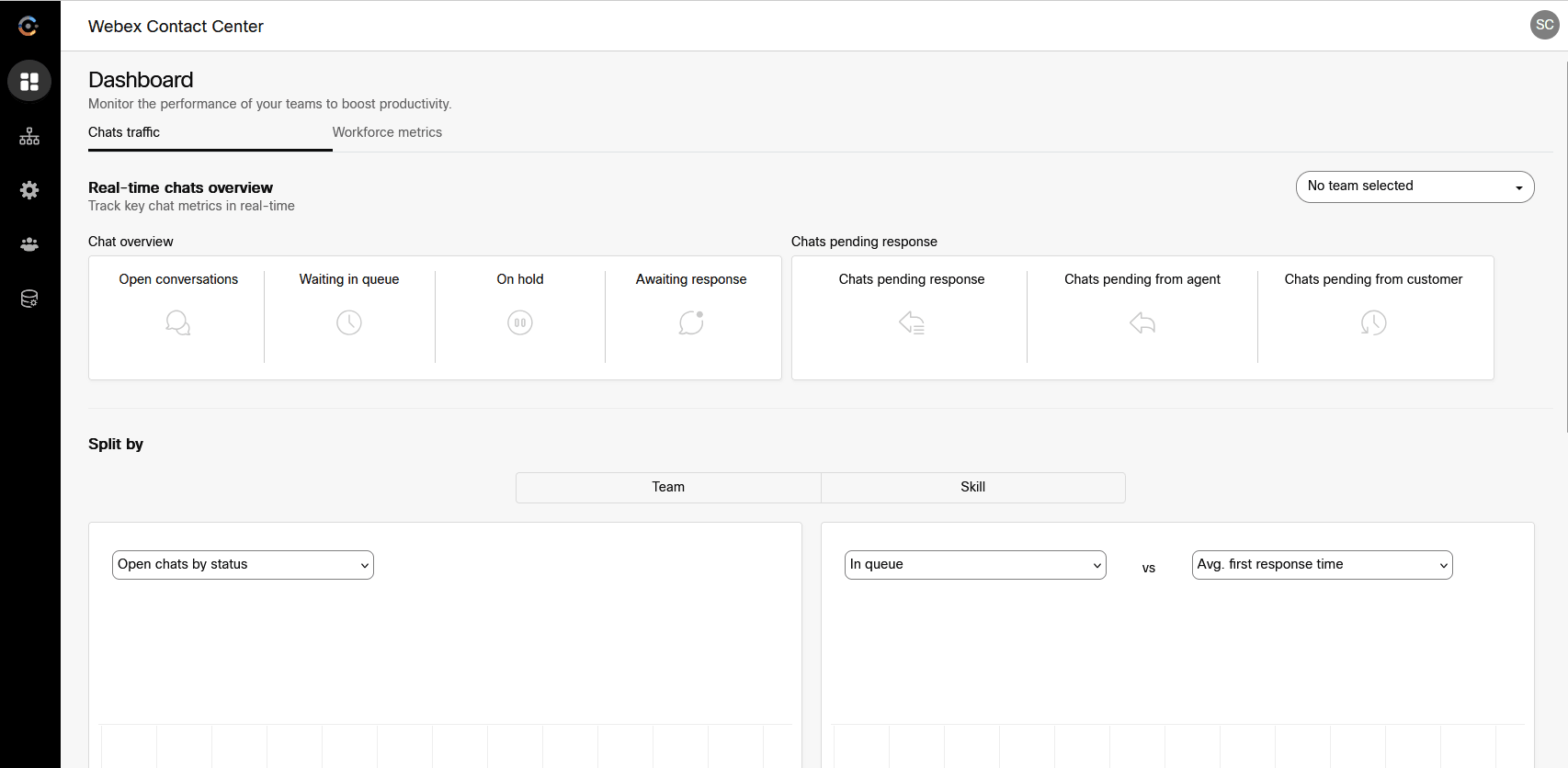

1. Login to Webex Engage Portal.

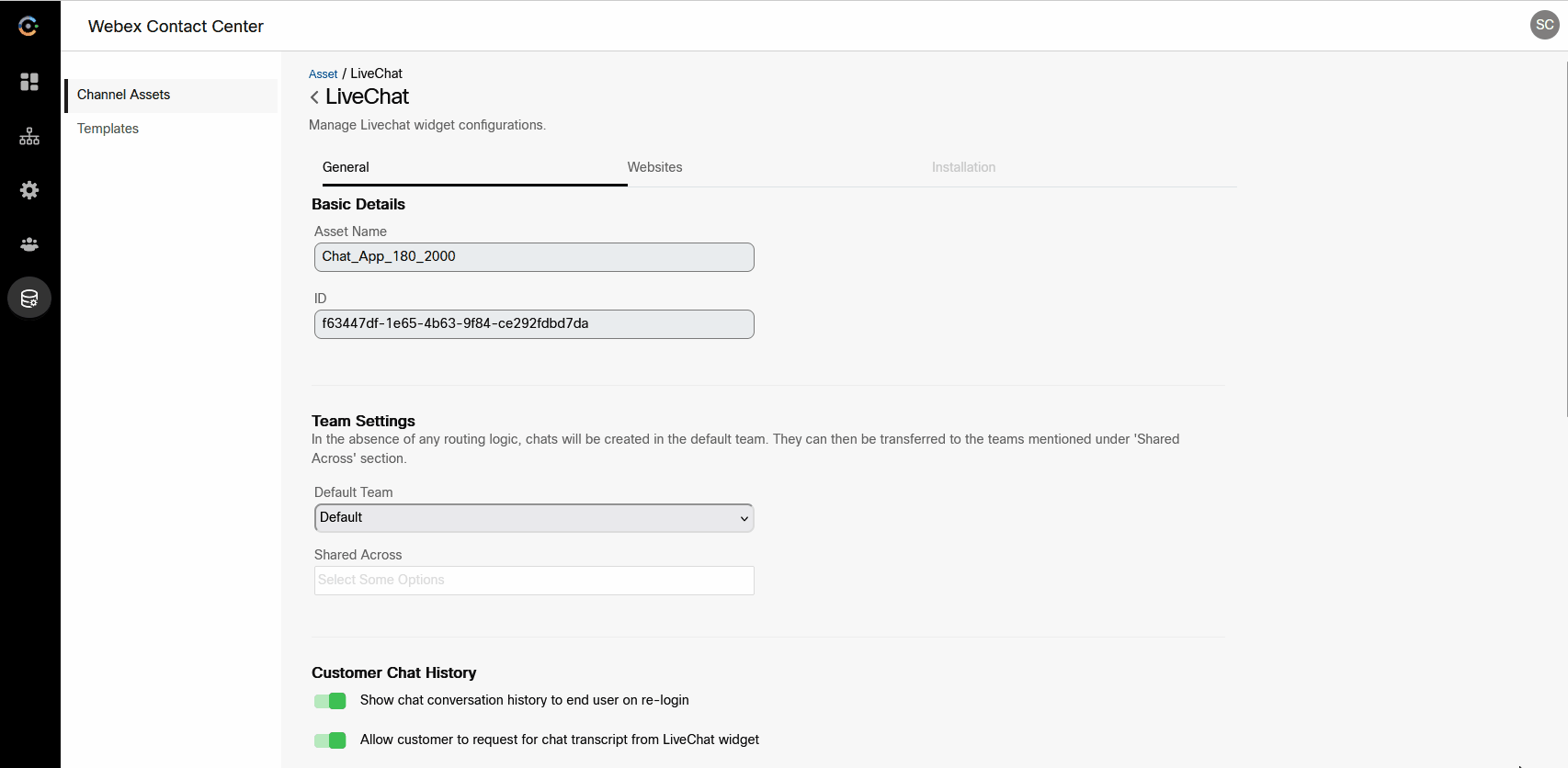

2. Go to Assets -> search and edit Chat_App__2000 which you have created in Connect Portal.

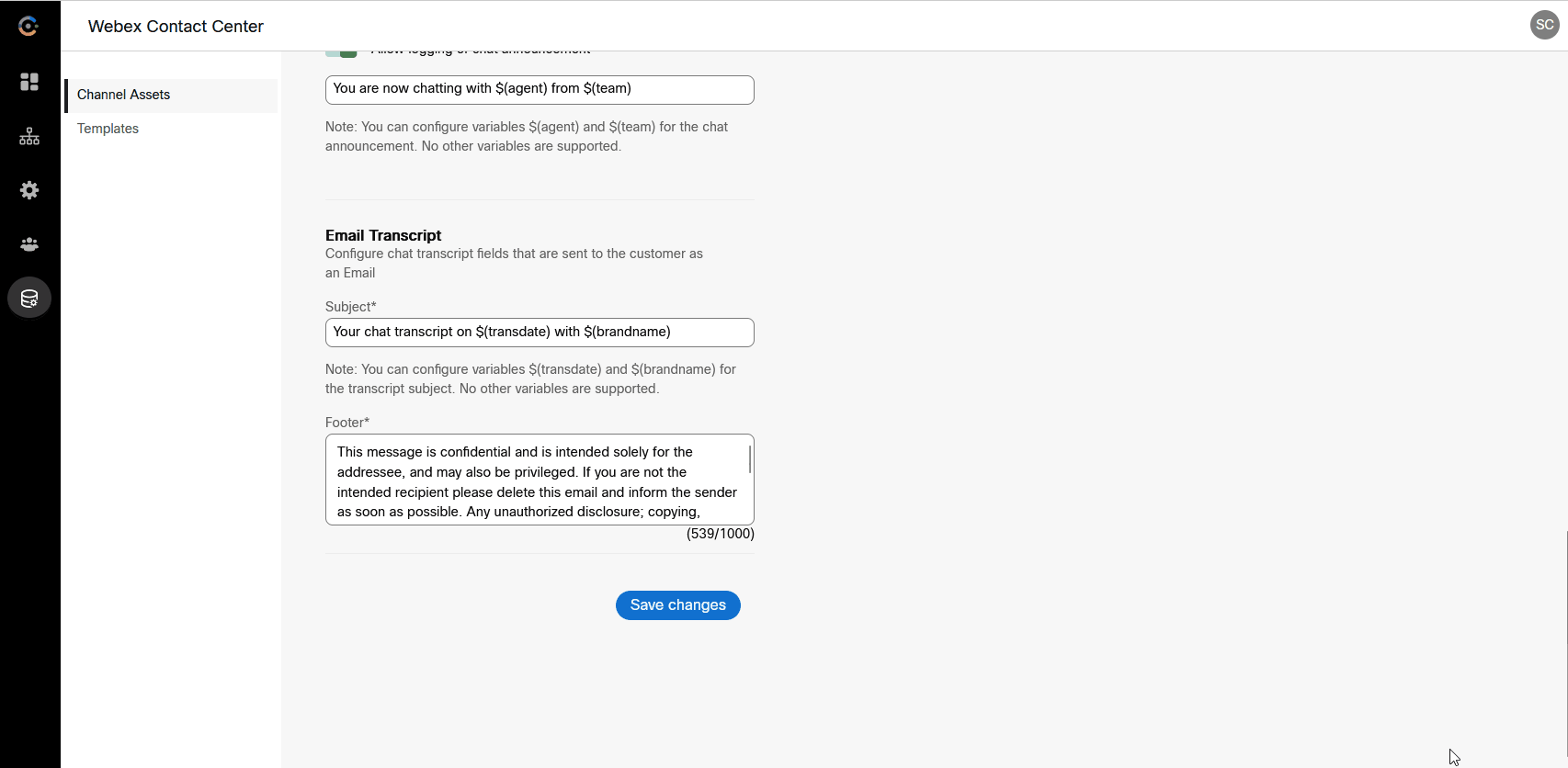

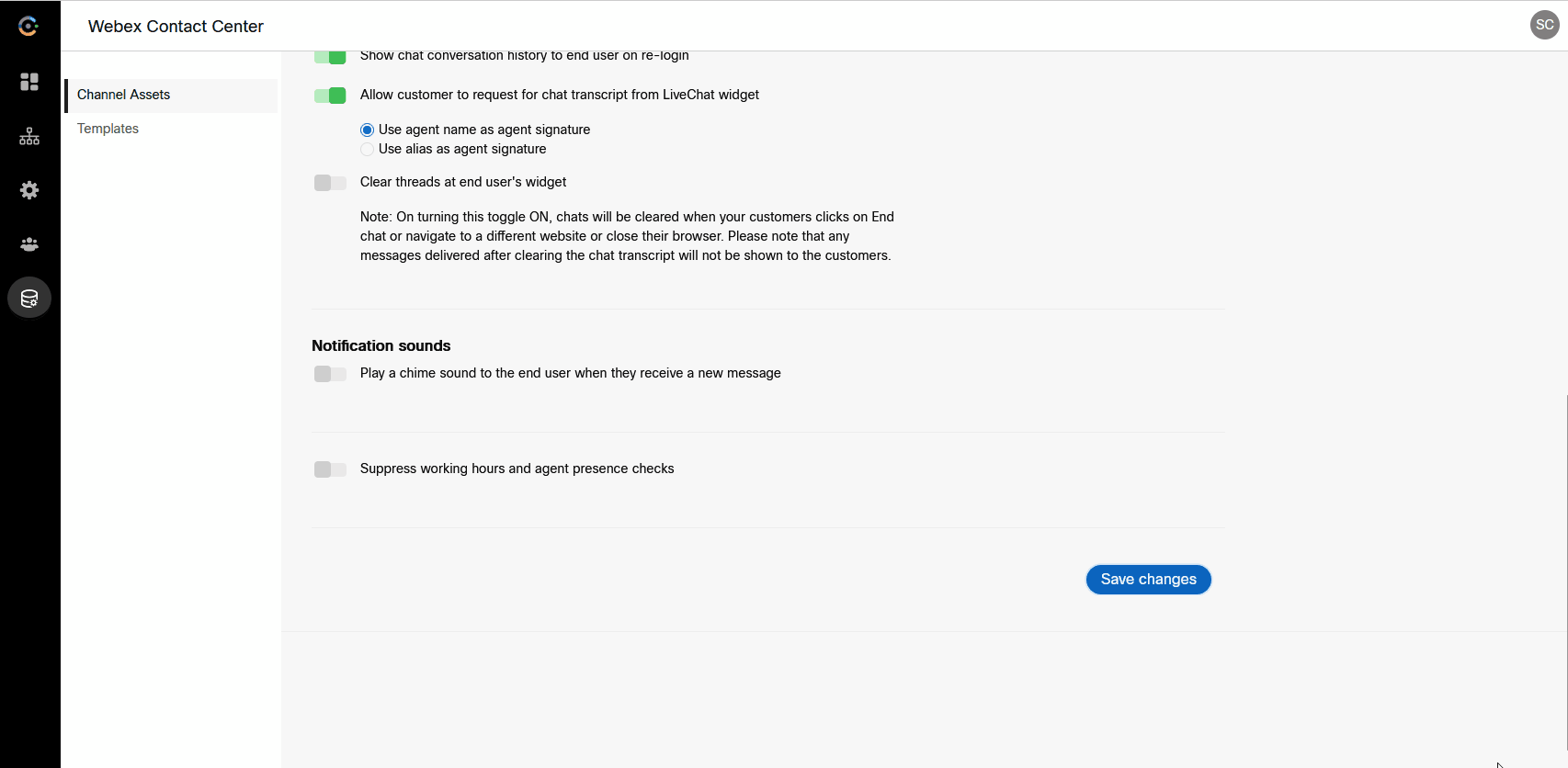

3. Scroll down and click on Save Changes button.

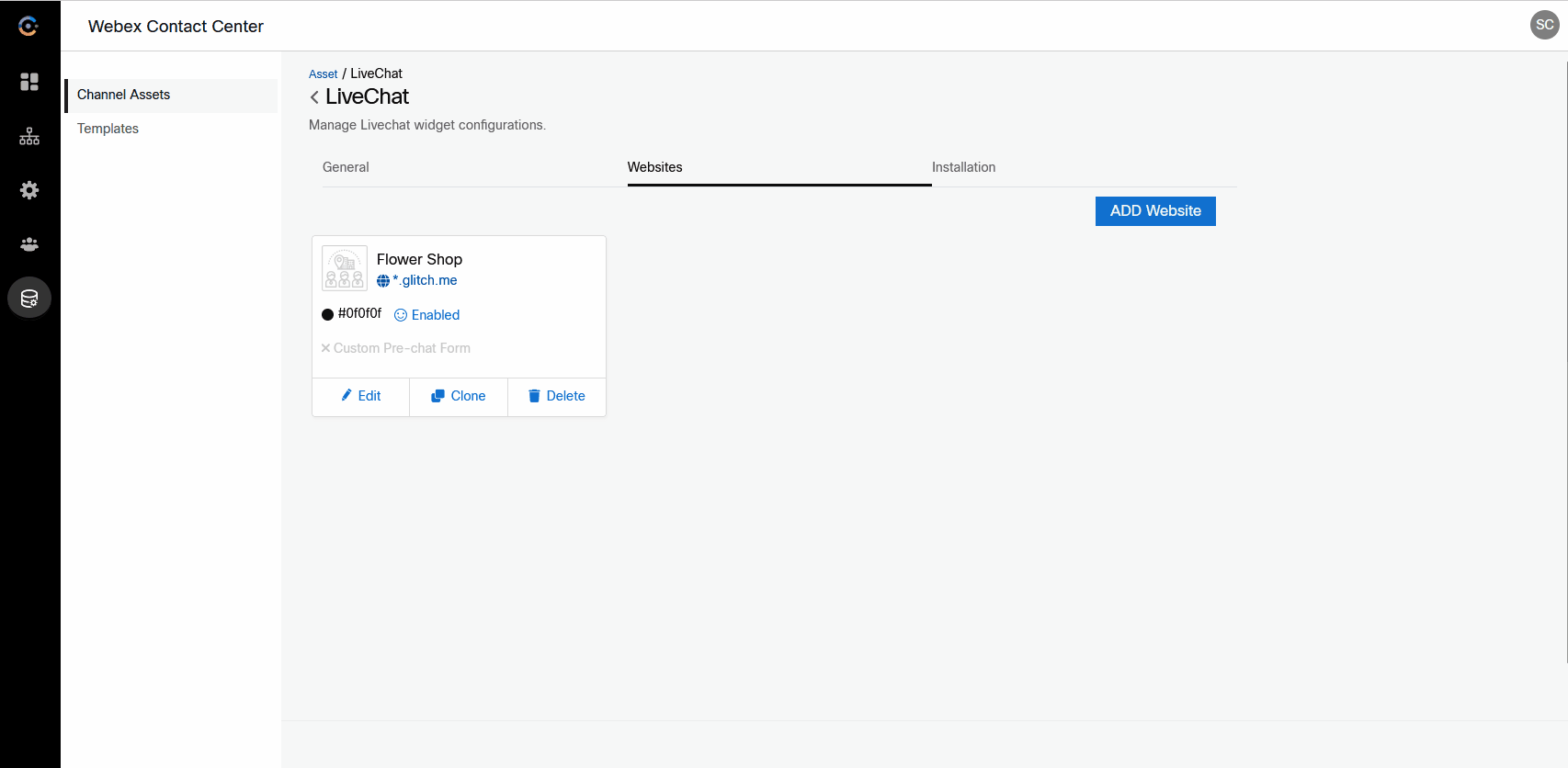

4. Scroll to top of the page and choose Websites tab. Click on ADD Website.

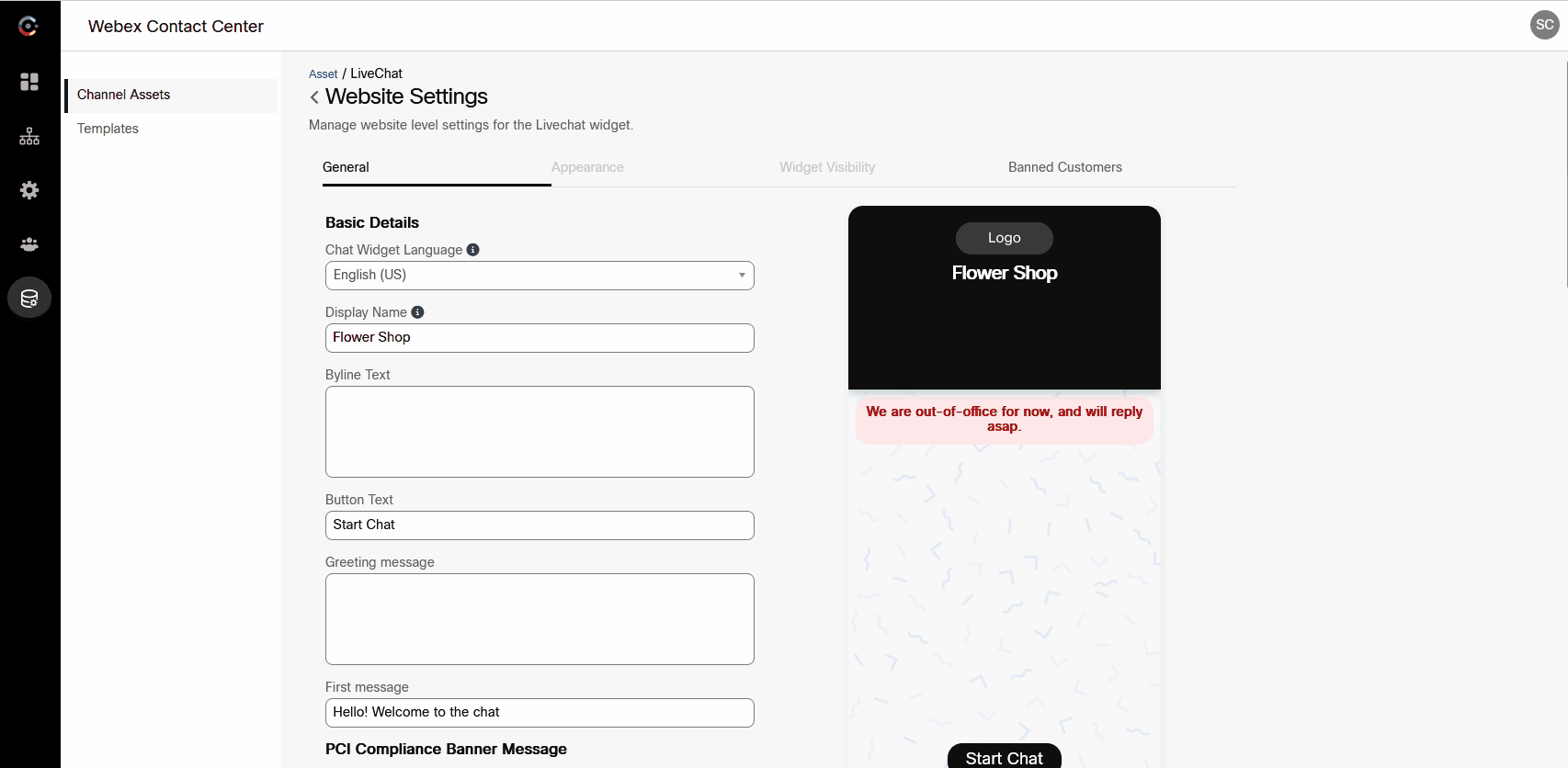

5. Fill in the respective fields as per the table below:

   Parameter Name	Parameter Value
   Chat Widget Language	English-US
   Display Name	Flower Shop
   Byline Text
   Button Text	Start Chat
   First message	Hello! Welcome to the chat
   PCI Compliance Banner Message	This chat is PCI compliant
   Domain	*.glitch.me
   Set wait time	Disabled
   Set Chat Announcement	Enabled

6. Review the configurations and Save changes

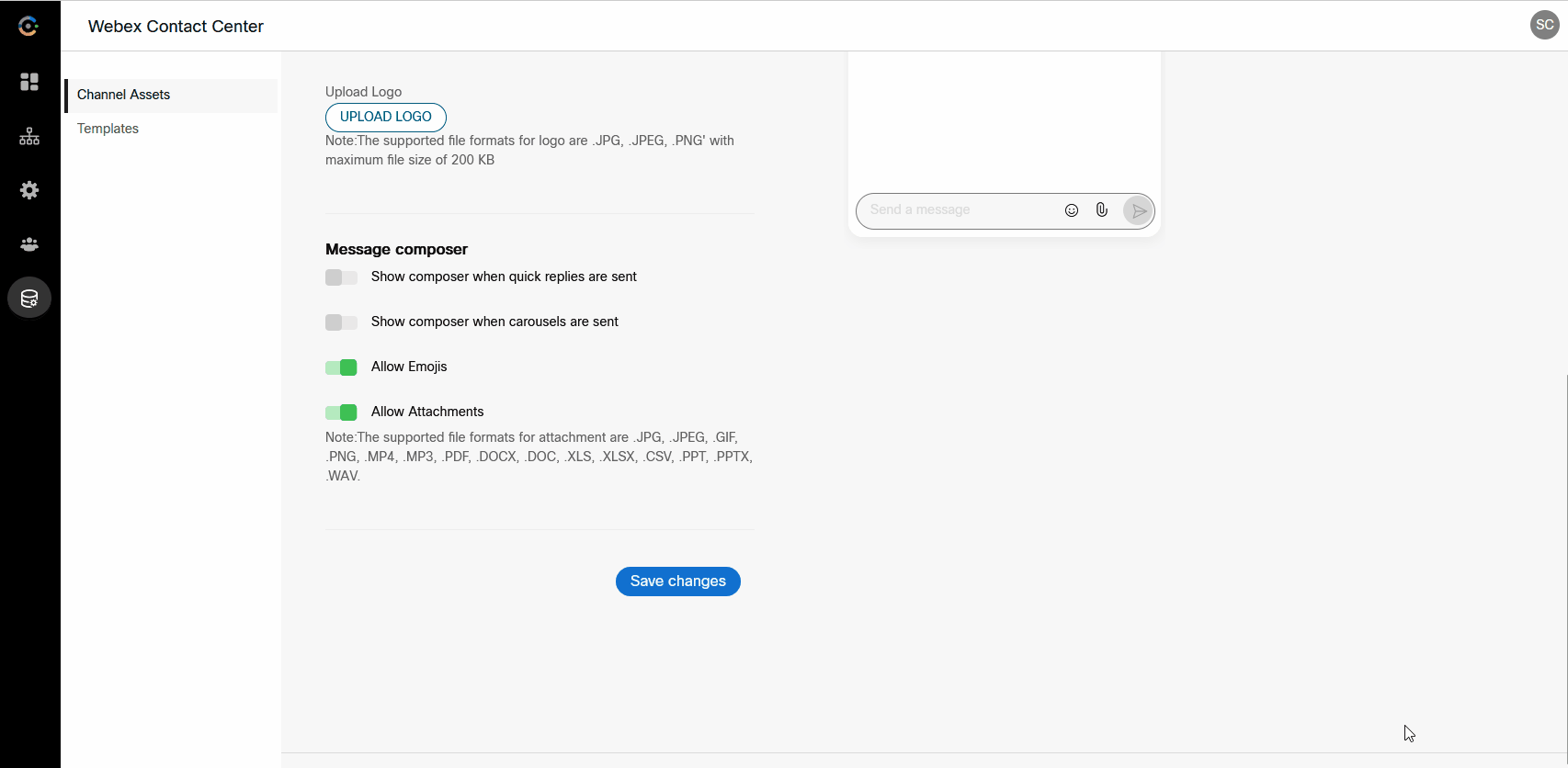

7. Scroll up, select Appearance and change the settings:

   • [Optional] Widget Color
   • [Optional] Widget Button Type
   • [Optional[ Logo
   • Enable Emojis
   • Enable Attachments Press Save changes button at the bottom of the page.

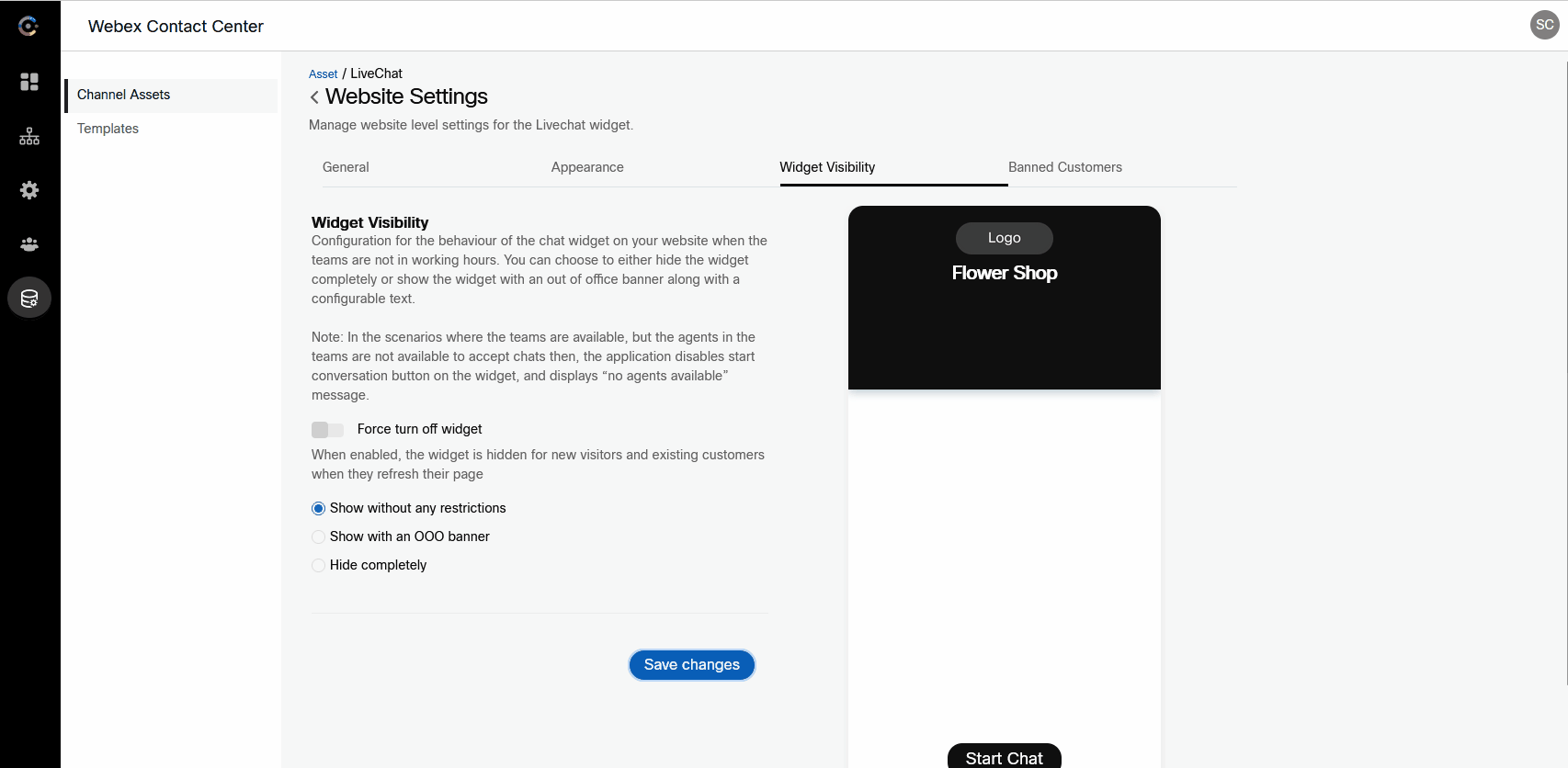

8. Scroll up, select Widget Visibility tab and make sure that Force Turn Off Widget switch is disabled. Then select Widget Visibility as Show without any restrictions and save changes.

9. Now click on < arrow near Website Settings and go-back to edit your chat asset.

10. Select Installation then click on Copy to copy the chat script to clipboard.

Task 6. Paste the script to the test website.

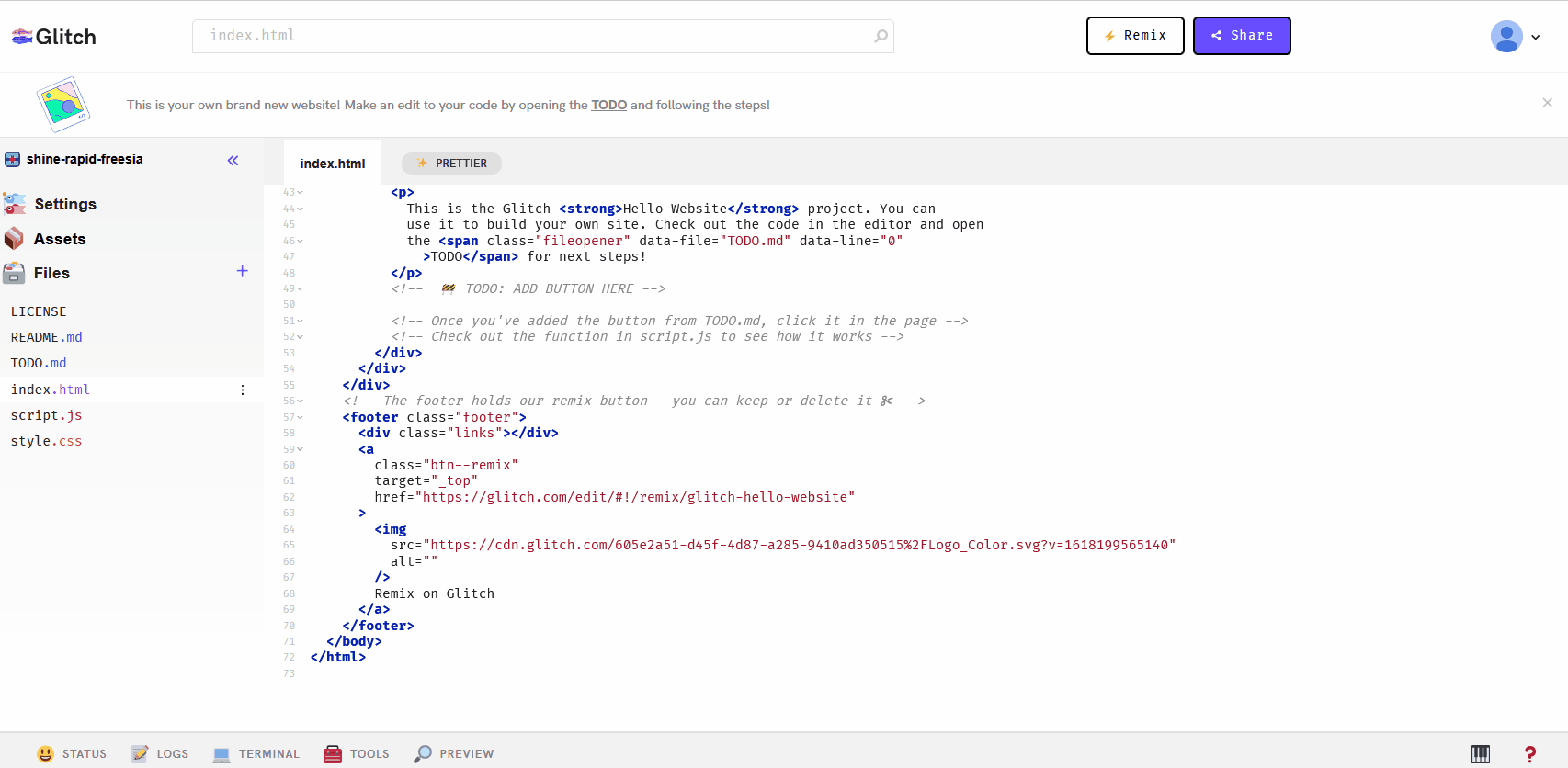

1. In this lab, we are using the glitch.com platform to test our chat functionality on a sample website. Using your personal gmail plesae login to glitch.com and create your own custom website where you can embed the chat widget. Open index.html file to see the structure of the website.

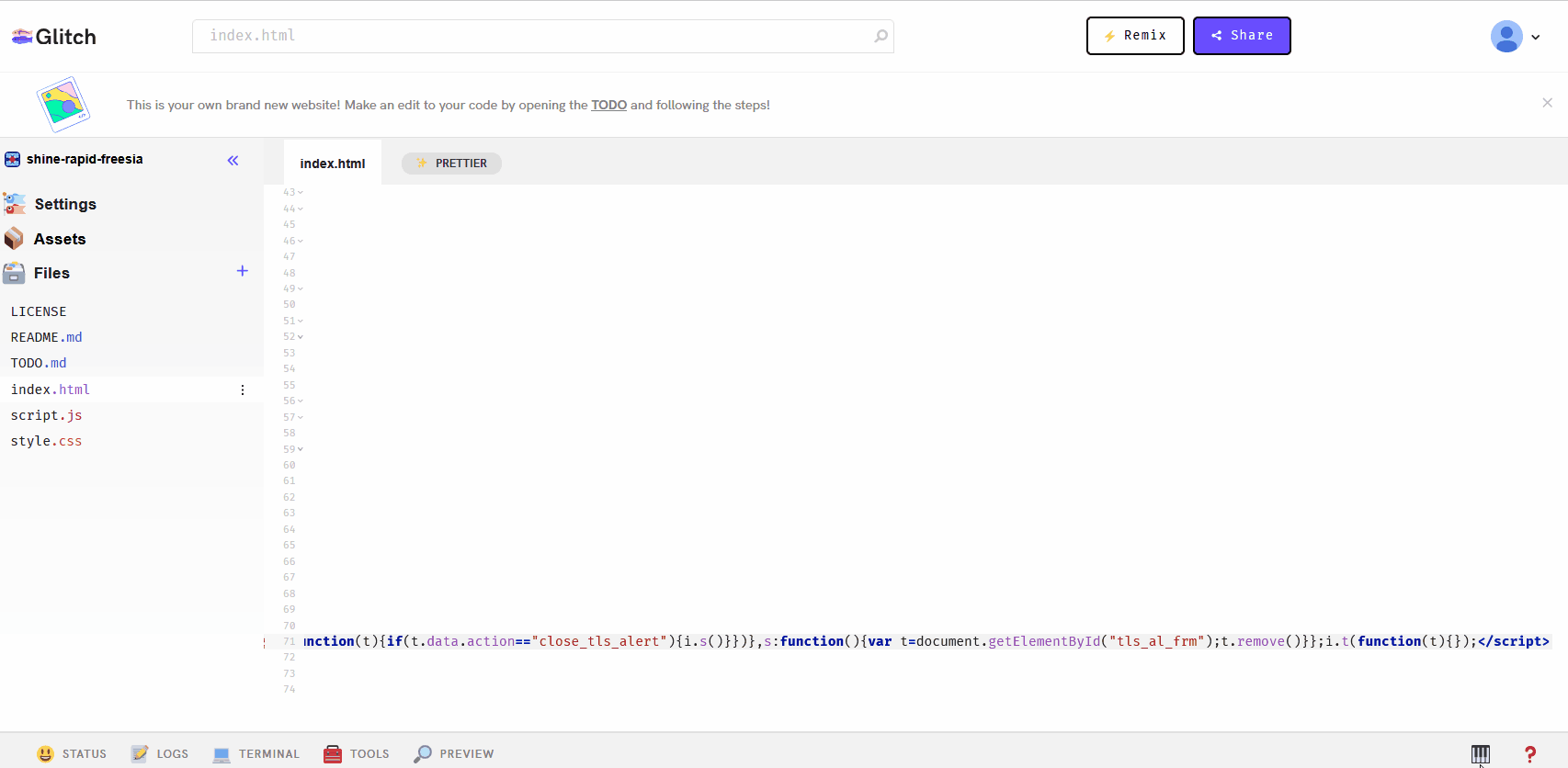

2. While having index.html file open, copy the script that you have save in notepad in the prevouse Task and paste it between footer and body tags.

3. Click on the website preview, and you should see the chat bubble appear in the bottom-right corner.

Congratulations, you have officially completed this mission! 🎉🎉
