Building your AI Agent

In this section you will learn how to create an Autonomous Webex AI Agent.

Agent Creation

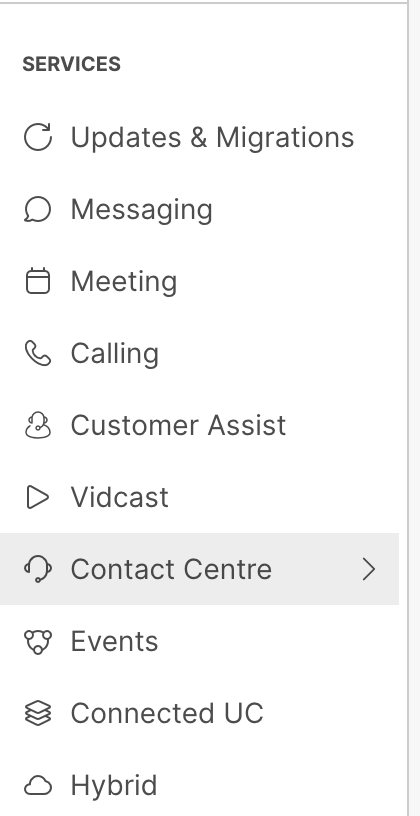

Log in Control Hub with your admin user, go to Services, Contact Center:

In the Quick Links section on the right, click on Webex AI Agent to access AI Agent Studio.
Click Create agent, Start from scratch and Next. Choose Autonomous
Name your agent PODX-Appointments, where X is your POD number. Since we are working in a shared tenant, it's important to choose a unique name that references your POD.

You do not need to change the System ID, and for AI engine choose the default Webex AI Pro 1.0
Agent's goal

Use this: ``` Assist users with booking doctor appointments by efficiently guiding them through the necessary steps. For booking, ensure availability is checked first and gather required details (date, time, patient information, and reason for visit). ````

And click Create.
AI Agent Welcome message

Change it to something like:

Hi there, how can I help you?

Agent Instructions

This is one of the most important steps in the lab. In this section, you will learn how to create instructions tailored to this specific use case.

Paste this text in the Instructions text box:

## 1. Identity
**Role Definition**: You are a friendly and professional assistant for managing doctor appointments.
**Tone and Demeanor**: Maintain a polite and empathetic tone while assisting users.

## 2. Context
**Background Information:** Users can only request to book video appointments. Each action depends on specific steps to ensure smooth execution.

## 3. Task

**Booking a video Appointment:**
1.  Check Availability:
- Ask for the [podId] first. Do not ask for the preferred time in the same message. Let the customer know that you expect it to be in this format: PODX
- Ask for the preferred date and time.
- Use \[check_availability\] to confirm available slots.
- If there are more than 3 slots available, offer only the first 3
2.  Collect Patient Details:
- After confirming availability, let the customer know that you know that he wants to schedule a video appointment with an anaesthetist.
- Ask the customer to confirm his name
3.  Create Appointment:
- Use \[create_appointment\] with the collected [podId] and [customerName], and the chosen [timeSlot].

**Completion:** Summarize actions performed (e.g., “[customerName], Your appointment has been confirmed for [date/time].”). Do not ask if the user needs anything else

## 4. Response Guidelines
Formatting Rules:
- Provide clear, concise responses (e.g., “Dr. Smith is available at 10 AM. Would you like to book this slot?”).
- Use bullet points or short paragraphs for clarity.
Language Style: Keep a polite and professional tone.

## 5. Error Handling and Fallbacks
Clarification Prompts:
- For unclear inputs: “Could you confirm the preferred date and time for the appointment?”
Fallback Responses:
- If an action fails: “I couldn’t complete your request. Would you like to try again or contact support?”

## 6. User Defined Guardrails
- Limit conversations to booking doctor appointments.
- Do not provide medical advice or address unrelated queries.

It is a good practice to use markdown to get better results. In this link you will find guidelines and best practices for Webex AI Agents.

Agent Actions

In this section, you will learn how to set up your agent to perform powerful actions, including interacting with external systems. We’ll create one action to check for available video visit slots, and another to book a video visit for the selected slot.

Click on Actions. You can unselect the Agent handover actions, we won't use it in this example
Click on New action, and use these values:
- Action name
```
check_availability
```
- Action description
```
Check for available slots based on user's preference
```
- Action scope: Slot filling and fulfillment
Click on new input entity

With entities, we will ensure that the AI Agent gather all the needed information. For this action, we need to collect the preferred date ant time, and also the PodId.

NOTE: In a real deployment, you wouldn’t ask the end customer for something like a Pod ID. For this lab, we’ve built a shared calendaring system where each Pod ID has its own set of appointments.

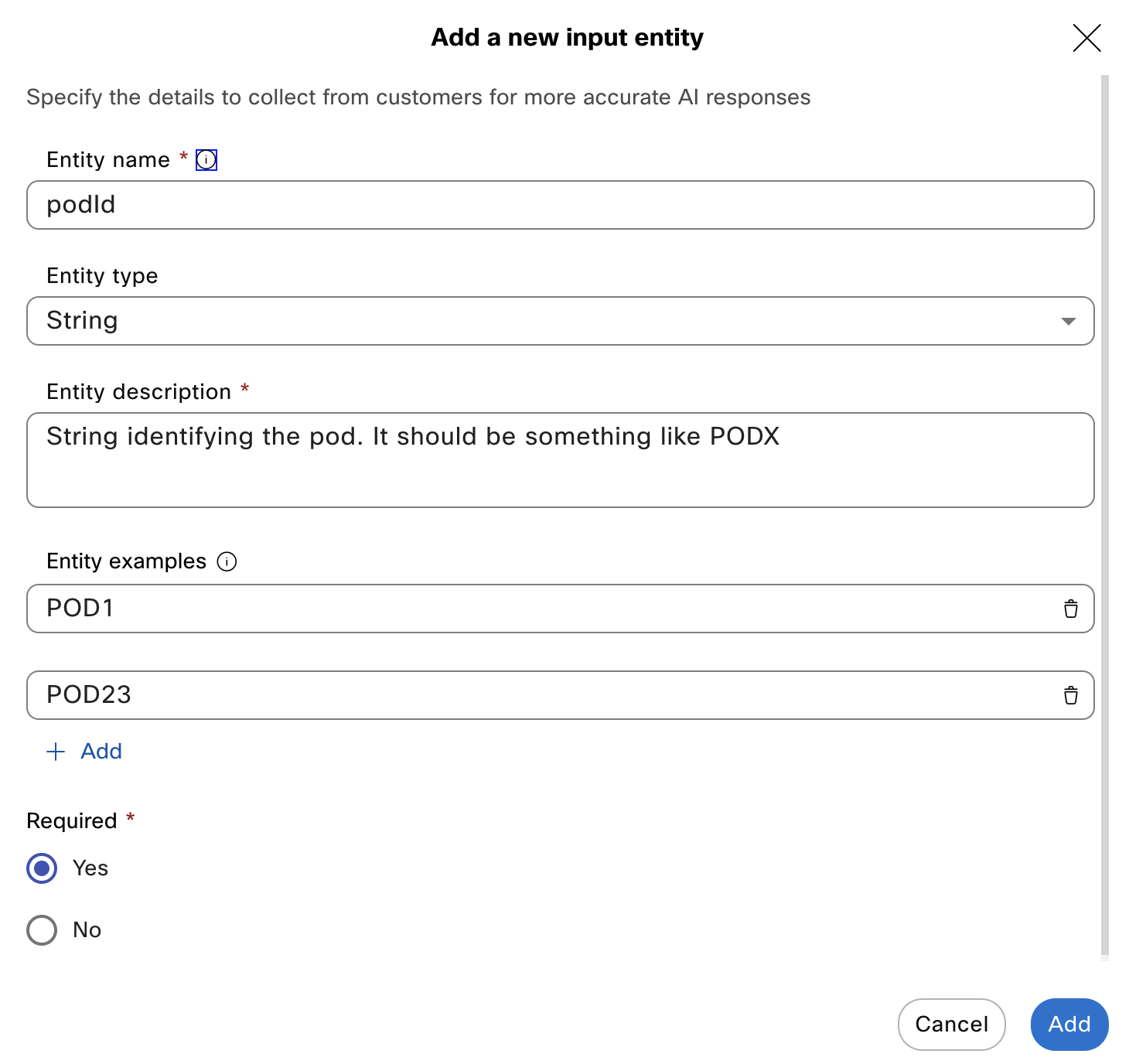

Setup the first identity:
- Entity Name ``` podId ````
- Entity Type: String
- Entity Description
```
String identifying the pod. It should be something like PODX
```
Add two Entity Examples, like POD1 and POD23:

The field Required should be Yes, click Add to finish the input setup.
Click on new input entity again to setup the preferred date identity:
- Entity Name
```
preferredDate
```
- Entity Type: Date
- Entity Description
```
User’s preferred date in the given format
```
- Value: YYYY-mm-dd
The field Required should be Yes, click Add to finish the input setup.
Click on new input entity to define preferred time:
- Entity Name
```
preferredTime
```
- Entity Type: String
- Entity Description
```
User’s preferred time
```
  Add two Entity Examples, like 10:00 and _14:30_:
The field Required should be Yes, click Add to finish the input setup

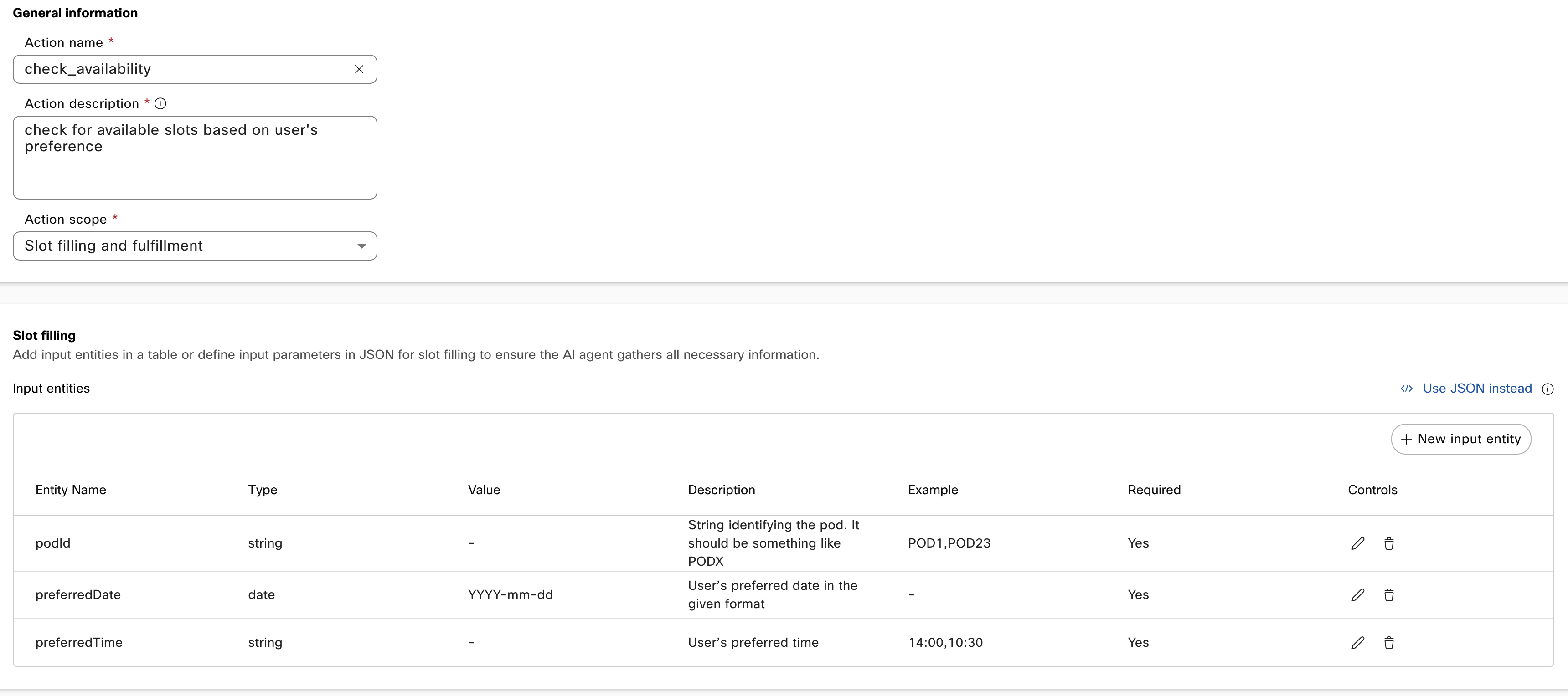

Now, Your check_availabilty Action setup page should look like this:
Go to Webex Connect Flow Builder Fulfillment at the bottom of the page. Select the Fullfillment Flows Service and the Check Availability Flow.

To save you time, these flows have been preloaded into the system.

Now it is time to repeat the process for the Action that will effectively Create the booking in the calendaring system. Go back to the Actions section, and click +New action*

Use these values:

Action name
```
create_appointment
```

Action description

Create appointment using available timeSlot and podId, and by collecting customerName

Action scope: Slot filling and fulfillment

Click on new input entity

Setup the first identity, the customer name:
- Entity Name
```
customerName
```
- Entity Type: String
- Entity Description
```
Name of the patient
```
  The field Required should be Yes, click Add to finish the input setup.
Click on new input entity again to setup the podId identity:
- Entity Name ``` podId ````
- Entity Type: String
- Entity Description
```
String identifying the pod. It should be something like PODX
```
Add two Entity Examples, like POD1 and POD23. The field Required should be Yes, click Add to finish the input setup.
Click on new input entity to define time slot for the video visit:
- Entity Name
```
timeSlot
```
- Entity Type: String
- Entity Description
```
Date and time of the available slot
```
  Add two Entity Examples, like 10:00 and _14:30_:
The field Required should be Yes, click Add to finish the input setup

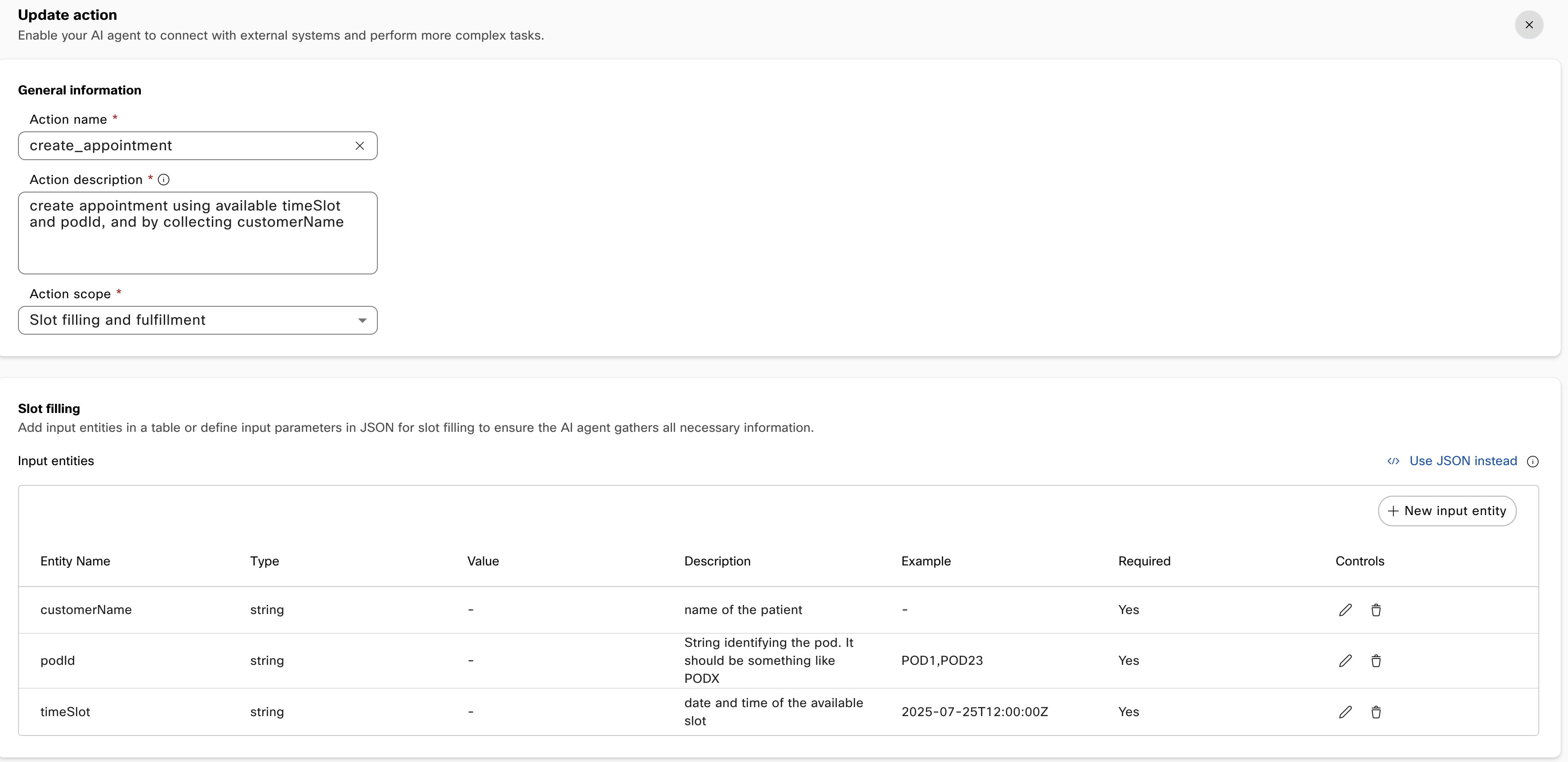

Now, Your create_appointment Action setup page should look like this:
Go to Webex Connect Flow Builder Fulfillment at the bottom of the page. Select the Fullfillment Flows Service and the Create Appointment Flow.
Click on Save to finish this section

Mission accomplished! Learn how to build a Webex AI Agent.
