Adding the Webex AI Agent to the main Flow

In this section you will learn how to add a Webex AI agent into any Connect Flow to serve digital channels. You will do it step by step to understand the process.

AI Agent Node

  1. Create a Custom Variable, name it messageToAgent and choose Hi as the Default Value

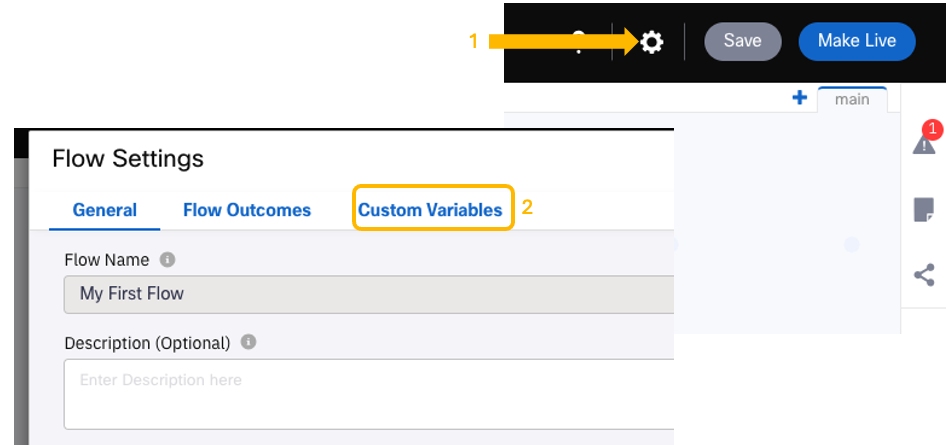

    You can configure your Custom Variables in Settings, on the top-right part of the screen:

    Custom Vars

  2. Go the Node Pallette on the right side of teh screen, select the AI Agent node:

    AI Agent Node

    and add it to the Canvas. Connect it to the Branch Node named 'Yes or No'

  3. Double click on the node to set it up:

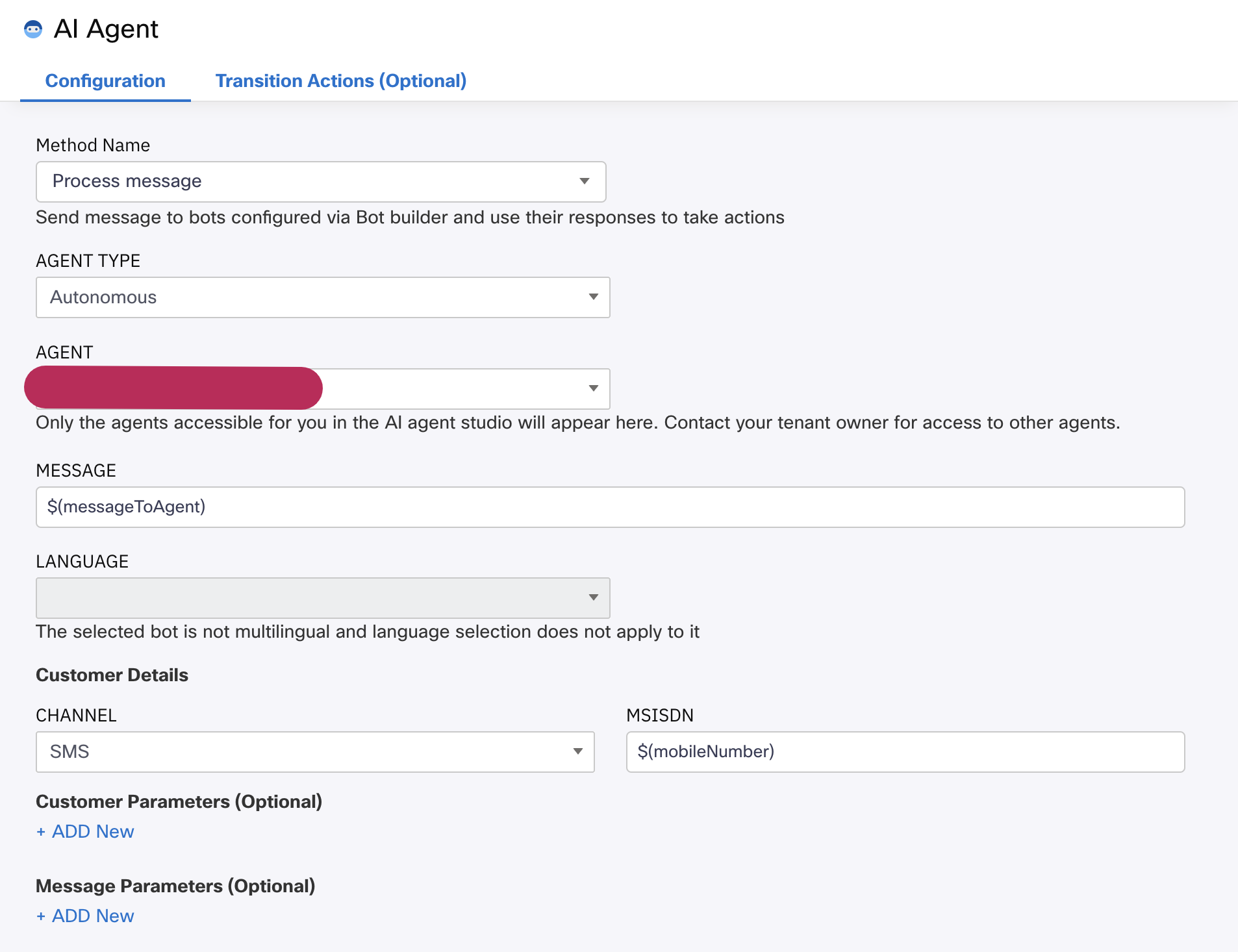

    AI Agent Node setup

    On the AGENT drop-down. menu, choose the AI Agent that you have created. Notice that with the messageToAgent Custom Variable will trigger the Agent.

Working with end customer messages

  1. Now the next step is to send the response generated by the Agent and send it back to the customer.

    • Select any of the SMS Nodes that you already have in the flow, copy and paste it
    • Connect it to the AI Agent Node, choosing the onSuccess Event
    • Double click on this new SMS Node to set it up
    • Rename it to something like Agent Message, and choose these values:

    Sending an SMS with the Agent response

    Depending on the order you followed during the lab, what you see on the screen might be slightly different. Normally, you will see the AI Agent node as the last one in the list of nodes on the right. Remember that you can always check the node numbers by clicking the Debug button

    Debug

  2. Select any of the Receive nodes that you already have in the flow, copy and paste it. Connect it the 'Agent Message' previous SMS Node.

  3. This Receive Node will get the end customer question/message. Now we need to send it back to the Agent. Double click the Receive Node, and add a Transaction Action like this

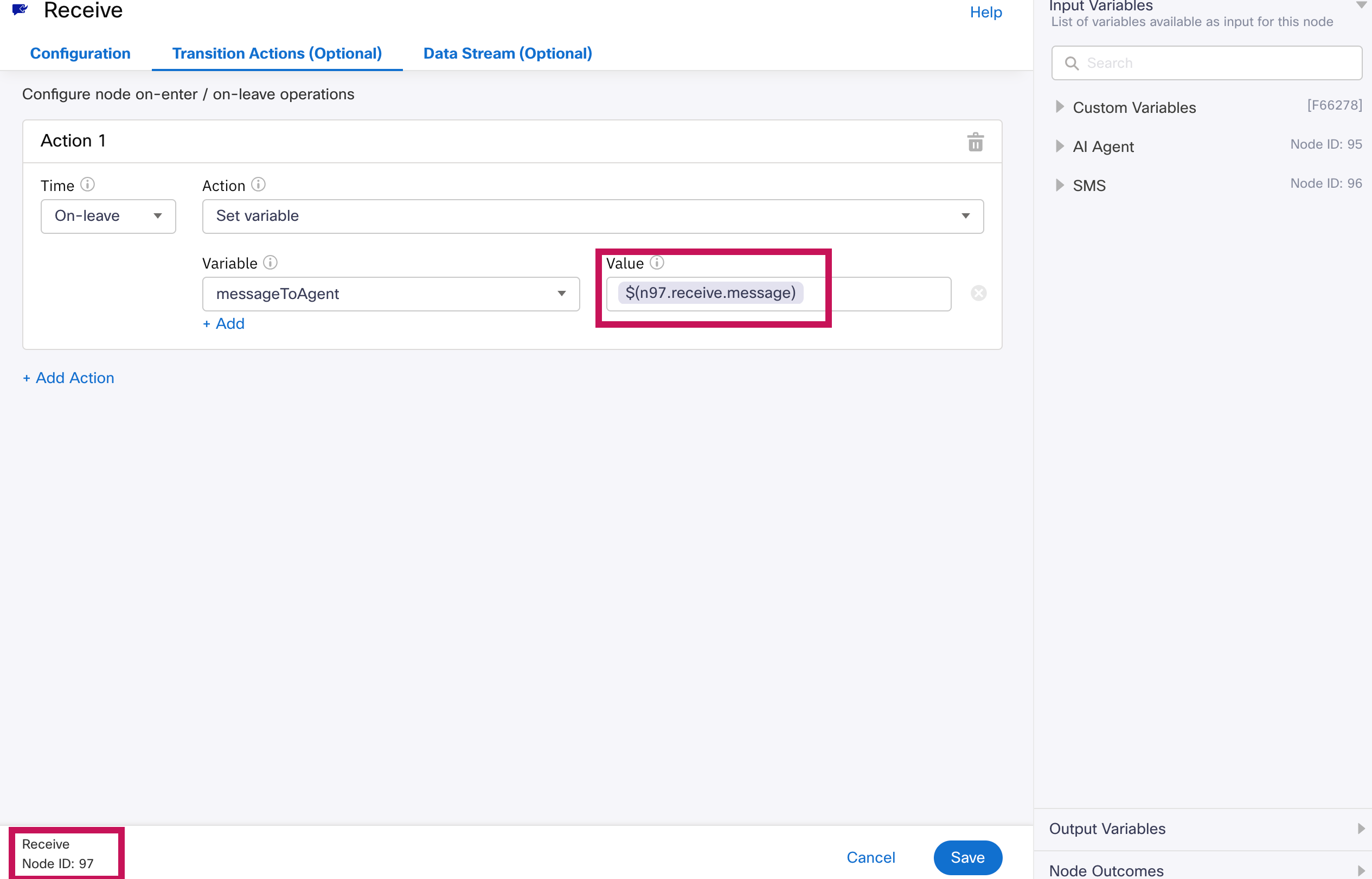

    Transaction Action for the AI Agent message

    Be sure that the variable node number (97 in this example in $(n97.receive.message) ) is the same as the Receive Node number at the bottom left. With this step, you are taking the customer SMS message text and sending it back to the AI Agent

  4. Select the Receive Node Outcome (green circle), and connect it to the AI Agent Node. You should get something like this:

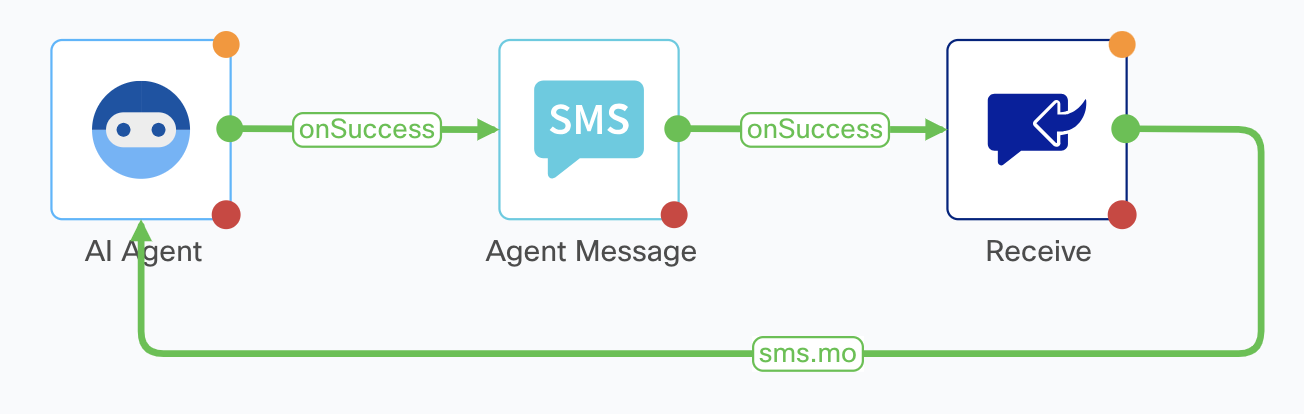

    Partial Flow

    If you tested now the Flow it would work, but the Flow would never go on, we need to add a way to determine that the Video visit was scheduled, and move to the nest step which is sharing a video with the end customer. You will do it now:

Ending the conversation with the AI Agent

  1. Remove the connection between the AI Agent Node, and the 'Agent Message' SMS Node. You do this by selecting the connection and clicking on the Delete button on the bottom of the Flow Editor canvas.

  2. Add a new Branch Node, connect it to the Agent AI Node, and configure it like this:

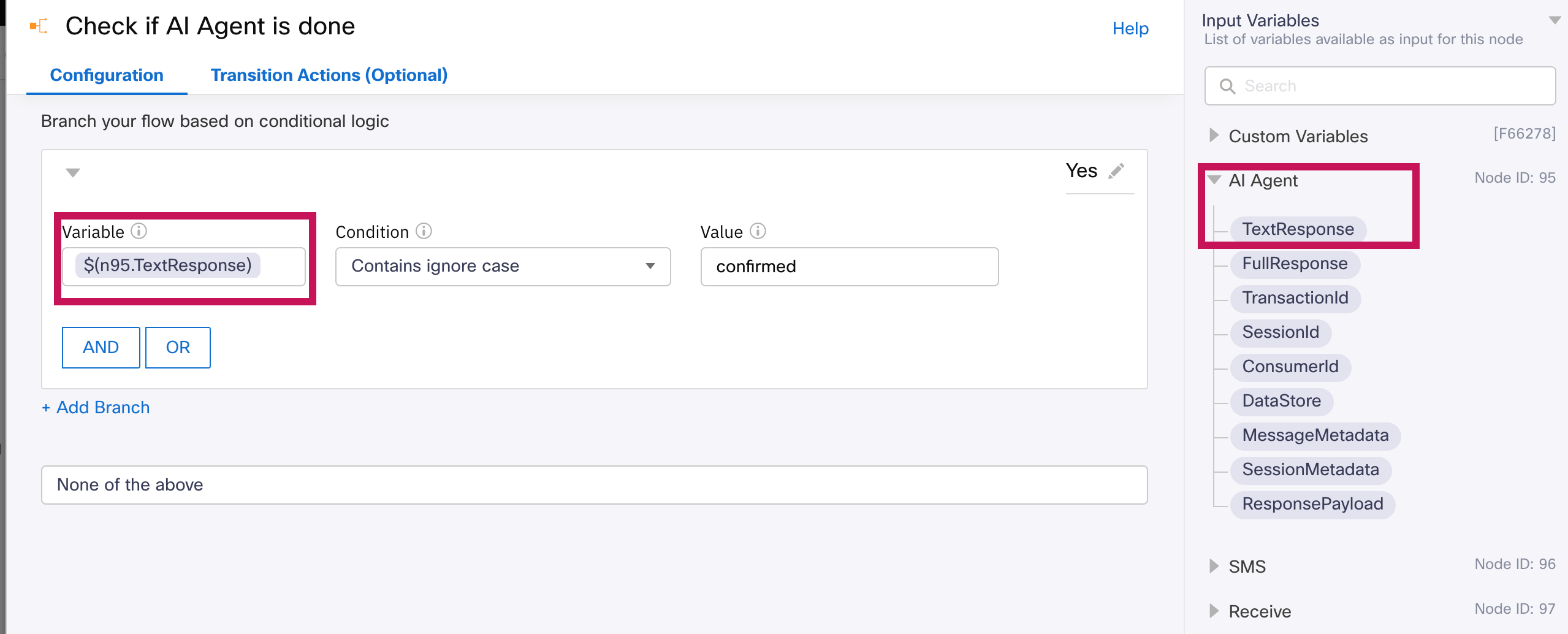

    Branch Node to check if it is the last message

  3. Connect the 'Check if AI Agent is done' Branch Node' to the existing SMS node named 'Thanks'. Choose the Yes Event

  4. Go back to the 'Check if AI Agent is done' Branch Node', and now connect the None of the above Event to the 'Agent Message' SMS Node. Now this section of the Flow should look like something like this:

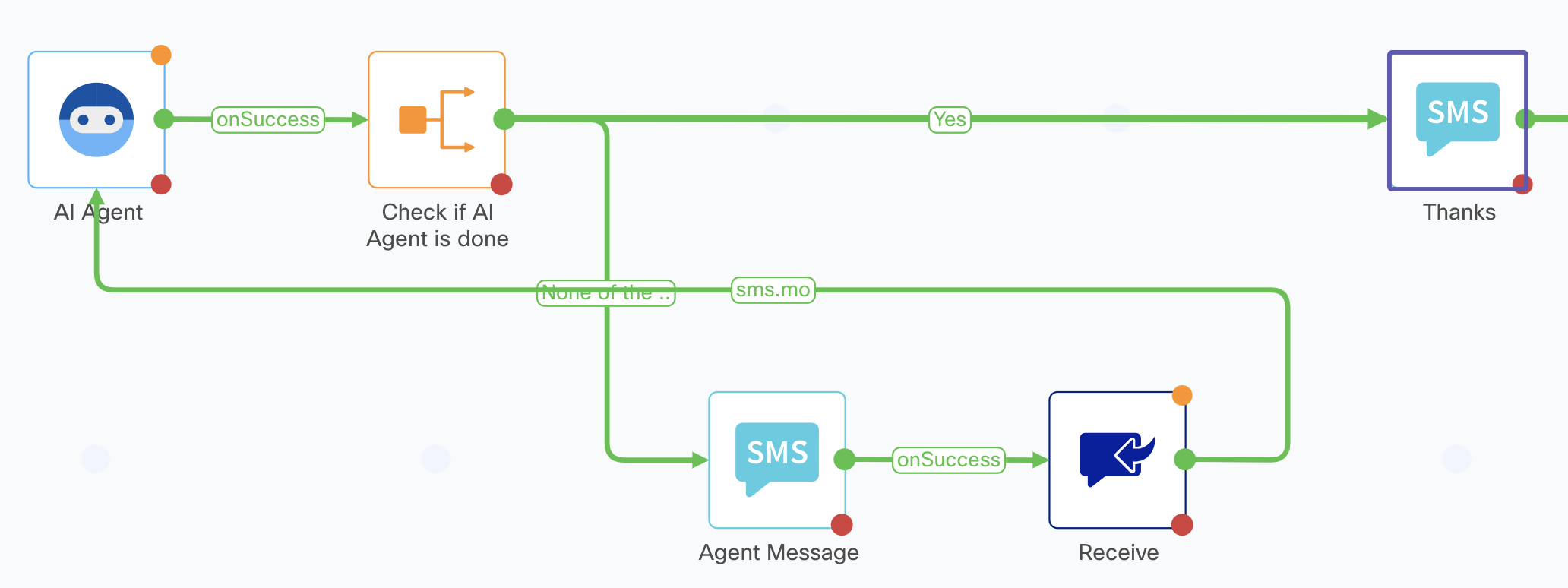

    Partial Flow

    As you can see, we didn’t build this section of the flow in the same order as the nodes appear now, but hopefully this helped you better understand the process.

    Now you only need to add error and time out control, you will do it in the following section:

Controlling response time outs and session errors

  1. Select any of the existing 'Time Out' SMS nodes that you already have in the flow, copy and paste it. Connect it to the Orange output (On Timeout) of the Receive Node you recently added.

  2. Paste one more 'Time Out' SMS node, and connect it to the Orange output (On Timeout) of the AI Agent Node

  3. Add a new AI Agent Node to the Canvas. Connect all the previous AI Agent node Red outputs to this new AI Agent node (onInvalidData, onError, onInvalidChoice, onFailure). Double click on it to set it up:

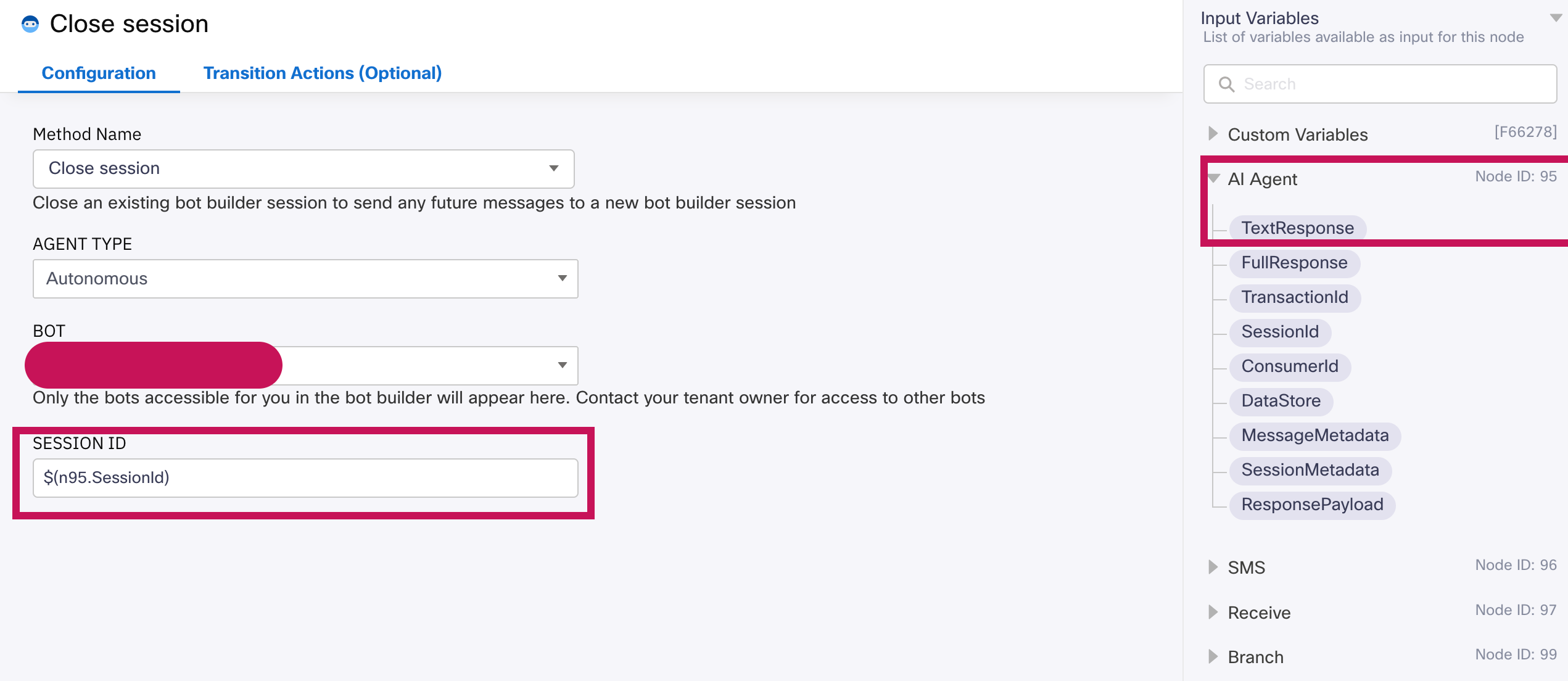

    Closing Session

  4. Connect the last 'Time Out' SMS node that you created to this 'Closing Session' AI Agent Node

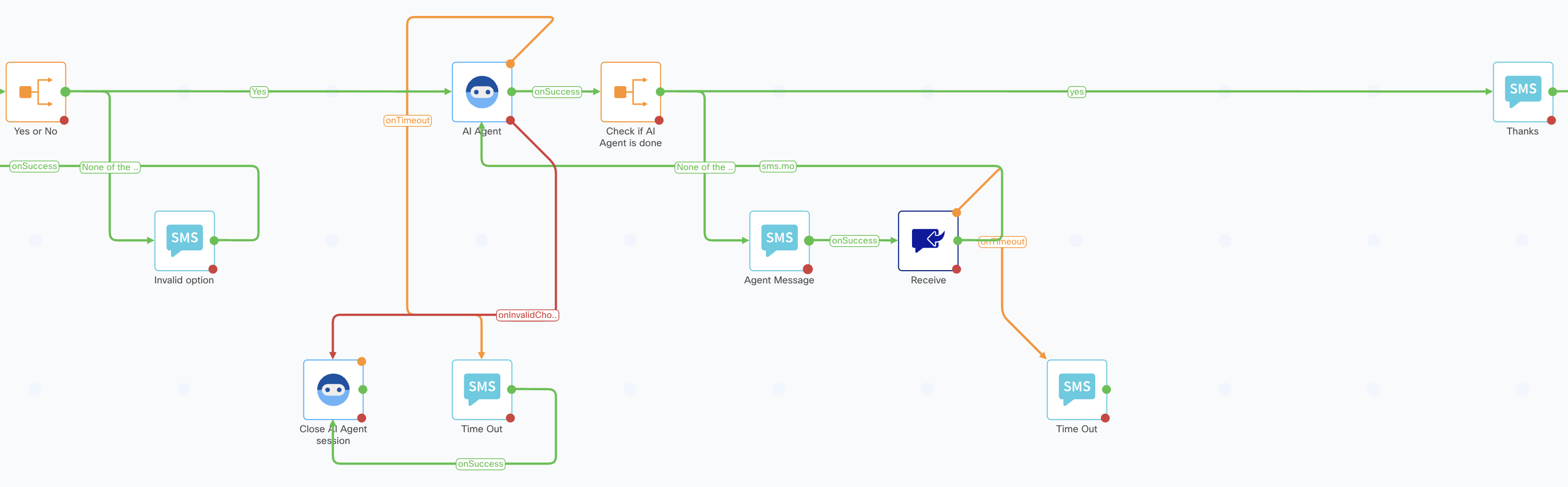

    This section of the flow should look like this:

    Partial Flow

    NOTE: you could use only one 'Time Out' Node if you wanted, we chose to have two to make the flow easier to follow

Mission accomplished! Learn how to add a Webex AI Agent to a digital channel conversation.
