Exploring Web Components

In this lab you will be exploring how web components function and update in a simplified and isolated exercise.

Clone the repository with git

Open Visual Studio Code

Click the Source Control button in the left menu

Click Clone Repository

Enter the repository source: https://github.com/kevsimps/wx1-starter.git

Select or create a new folder to clone the repository into.

When prompted to open the cloned repository, select open.

---

Install the recommended extensions

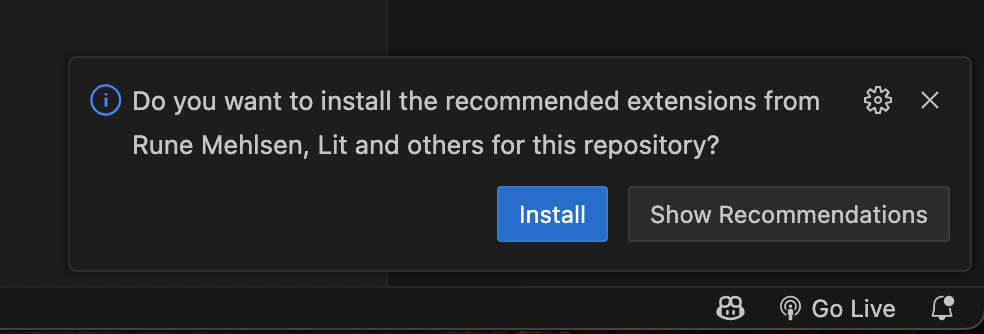

When you see the prompt to install recommended extensions in the lower right corner of VS Code, click install.

---

Build the environment

Drag open the terminal at the bottom of the Visual Studio Code window

Show Me

In your terminal enter the following command:

yarn

---

Your First Web Component

Create and scaffold a new file

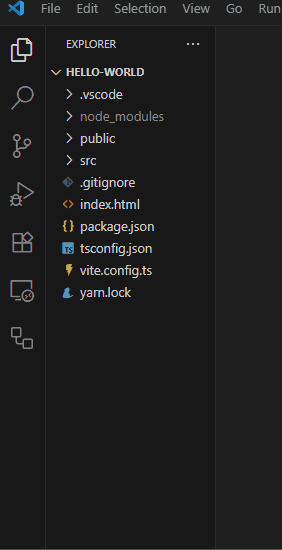

Create a new file in the src directory named hello-world.ts

Show Me

In the new file type (not paste) littemplate

Select the Create LitElement Component With lit-html

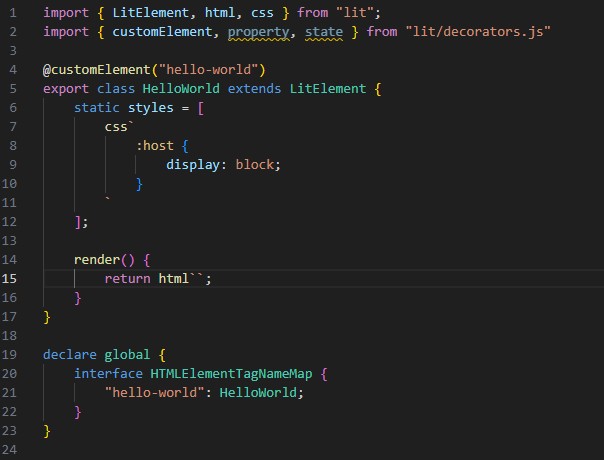

You should have a scaffold to build your new component

---

Add a new property and state

Insert a line above Static Styles (line 6)

Add a new string property above the static styles: @property() myprop: string = "My Property"

Add a new string state the line below the property you just added: @state() mystate: string = "My State"

---

Add some HTML elements to the html template in the render method

In the render() method add a few lines between the back ticks in of the return html`` line

On the line below return html`, add a div tag by typing: <div>

Hit the enter button and add an h1 tag which will contain the value of the myprop property: <h1>${this.myprop}</h1>

Below the h1 tag you just created, add the following code which includes:

An h2 tag with the value of mystate

An input box with the value of myprop which will update the value of the property when the input box is changed

An input box with the value of mystate which will update the value of the state when the input box is changed

    <h2>${this.mystate}</h2>
    <input value=${this.myprop} @change=${(e: any) => this.myprop = e.target.value}>
    <input value=${this.mystate} @change=${(e: any) => this.mystate = e.target.value}>

---

Add some CSS to the static styles

In the css template add these styles below the :host entry closing curly brace:

            div{
                border:solid black 2px;
            }
            h1{
                color:blue;
            }
            h2{
                color:red;
            }

---

Add your new component to the testing page

Click on the index.html file in the explorer tab:

In the head section of the html:

Add a script tag under the existing script tag (if you type it, intellisense will help with the autocomplete options)

<script type="module" src="/src/hello-world.ts"></script>

In the body section add your new custom element tag above the existing my-element custom element tag:

<hello-world></hello-world>

Save the file (ctrl + s or File > Save)

---

Start the development server and test

In the terminal run the command: yarn dev

Open a browser tab to http://localhost:5173/

---

Update values using the input boxes

In the input box which has the value of My Property, change the value to: Prop From Component

In the input box which has the value of My State, change the value to: State From Component

What happens when you change the values in the input boxes?

When you click out of the input box or press enter, the UI updates with the new value.

---

Add property and state declarations in index.html

Inside the opening tag of hello-world add: myprop="set in html" mystate="set in html"

Save the file (ctrl + s or File > Save)

What happens in your component?

The value of the property gets it's value from the parent Dom.
The value of the state does not update.

Why didn't the state update?

state is a private internal variable

---

Add a new method to change the values of myprop and mystate

Above the render method create a new method called change values

changeValues(){}

Inside the curly braces, set the value of myprop and mystate to set by method

    changeValues(){
    this.myprop = "set by method"
    this.mystate = "set by method"
    }

---

Add a button to call the new method when clicked

Inside the html template below the input tags and still inside the div tags add this line:

<button @click=${this.changeValues}>Call Method</button>

Save the file

Click the new Call Method button to test the functionality

---

Edit the changeValues method and Call Method button to pass a value and update the value of myprop

Inside the parentheses of the changeValues method add a string variable named newValue: newValue:string

Change the value you are setting this.myprop to: newValue

In the render method, change the @click listener to: ${this.changeValues.bind(this,"set by button")}

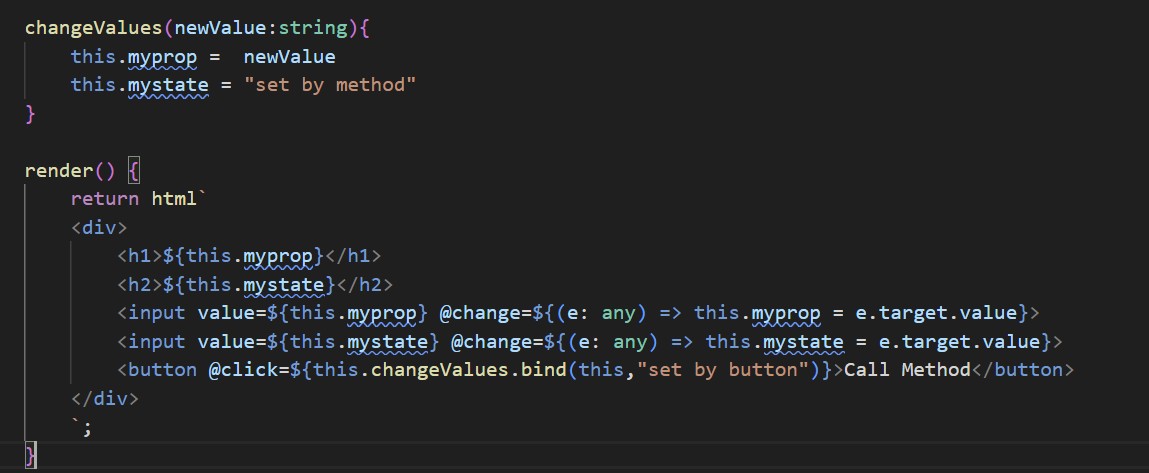

This is how your code should look

-

Save the file

Click the Call Method button

What happened when you pressed the Call Method Button?

The value for myprop changed to "set by button" The value for mystate changes to "set by method"

Why?

The value of "set by button" was passed to the changeValues method as a parameter when the button was clicked and you only changed the value of myprop to use the passed value while mystate was set to the value defined in the method.

---
