Module 1: Webex Identity and Authentication/Authorization with Duo

In this module, you will start by integrating an on-premises Active Directory (AD) with a Duo tenant. From there, you will set up an integration between Duo and Webex for user provisioning via SCIM 2.0. This is designed to simulate a common scenario where an organization needs to migrate away from an on-premises AD deployment to a cloud platform for identity. Once the migration from AD to Duo has been completed, there will be a brief section covering licensing information so you can ensure that you are properly licensing your users. Next, you will configure Single Sign-On (SSO) with Duo using SAML and OpenID Connect (OIDC). During the process you will learn the configuration differences along with some of the advantages and disadvantages of SAML and OIDC. Finally, you will explore enabling built-in Multi-Factor Authentication for Webex.

There are 6 sections in this module:

i. Sync Users from Active Directory to Duo

ii. Sync Users from Duo to Webex

iii. Webex Licensing and Settings Templates

iv. Configuring Duo To Use Active Directory for User Authentication

v. Single Sign-On with Webex and Duo (SAML and OIDC)

vi. Multiple Identity Providers with Webex

vii. Enable Multi-Factor Authentication (MFA) using Duo

Sync Users from Active Directory to Duo

The Duo Authentication Proxy is a tool that allows administrators to connect their on-premises identity infrastructure to Duo. In this section of the lab, you will use Duo Authentication Proxy to add the on-premises AD users to your Duo tenant. Integrating your on-premises directories with Duo reduces friction for users during authentication by providing a common identity for accessing both cloud and on-premises resources.

At the end of this section, you will have synchronized on-premises AD users into Duo.

1. First, you need to access your Duo tenant so you can set up a connection between Duo Authentication Proxy and your AD server.

2. Connect to the Active Directory server (ad1) via Remote Desktop.



3. Open the DUO folder on desktop, then open the Duo-URL.txt document.



4. Copy and paste the URL in this document into the browser.



5. This page will provide you with your Duo admin email address. Note that the password here is a suggestion -- not a requirement. Click Activate Account > Get started to begin setting up your admin account.





6. When prompted for a password, use dCloud12345!

7. Next, you need to add your second factor, so click Continue.



8. You will not be using a Passkey, so click Skip for now.



9. Scan the QR code with your mobile device or raise your hand for a proctor to scan with a lab device and then click Continue.



10. Click Continue to Duo Admin Panel Login.



11. Log in with cholland@cbXXX.dc-YY.com. If you do not see a password prompt, navigate to https://admin-demodemo.duosecurity.com to log in.

12. After authenticating, navigate to Users > Administrators > Admin Login Settings.



13. Disable Always require a Verified Duo Push.



14. Scroll down and set the Absolute Session Length to 10 hours.



15. Next, navigate to Users > External Directories:



16. Click Add External Directory > Active Directory:



17. Select Add new connection > Continue:



18. Minimize the browser and launch the Duo Authentication Proxy Manager from Desktop. Once the application is open, delete all text from the configuration, then can paste the text from the example below into your auth proxy:

    Example

    [cloud]
    ikey=
    skey=
    api_host=api-demodemo.duosecurity.com
    [ad_client]
    host=ad1.dcloud.cisco.com
    service_account_username=administrator
    service_account_password=dCloud123!
    search_dn=DC=dcloud,DC=cisco,DC=com

    Important

    You will need to pull the ikey and skey from your Duo admin portal:



    The [cloud] section of the authproxy.cfg provides a means by which the auth proxy can connect to your Duo tenant.

    The [ad_client] section provides credentials allowing the auth proxy to search and authenticate users from AD.

    In this lab, we are not encrypting the password but in a production environment, it is strongly recommended to do so. Information on how to do that can be found here:

    https://duo.com/docs/adsync#encrypting-passwords.

19. Once you have filled in the config, click Validate in the Duo Authentication Proxy Manager and verify that there are no errors in the Output. If you see additional text in the config, you may not have cleared the text that is entered by default. Please repeat step 16 so that your configuration looks like the below screenshot.



    Tip

    If you see any red or yellow text, verify that there is nothing missing in the configuration.

20. Once your configuration validates successfully, click Save.



21. Finally, click Start Service, wait a few seconds, and verify that the service starts successfully.



22. With the Auth proxy configured and the service running on AD1, go back to the Duo Admin portal. If you were logged out, log back in with your admin account (cholland@cbXXX.dc-YY.com // dCloud12345!) and select Users > External Directories > AD Sync > Edit connection.





23. Once you're on the AD Sync Connection page, click Test Connection (step 5).



24. The Status section should still reflect that the Auth Proxy is Not Connected but you should see a check next to Add Authentication Proxy.



25. Scroll down and fill out the Directory Configuration section with the following information:

    Directory Configuration

    Domain controller Hostname: ad1.dcloud.cisco.com
    Port: 389
    Base DN: DC=dcloud,DC=cisco,DC=com
    Authentication type: Integrated
    Transport type: Clear




26. Click Save and verify that the Status changes to Connected.



27. Click Back to AD Sync at the top of the page and you will now see the AD Connection is Connected to Duo.



28. Add the Lab Users group to the Groups field (scroll down to find the group, list is alphabetical).

29. In the Synced Attributes section make a few changes:

    a. Change Username to userprincipalname
    b. Change Email Adress to userprincipalname
    c. Add Attribute > First Name
    d. Add Attribute > Last Name



30. Click Complete Setup



31. The page will refresh, and you can now configure the sync schedule or select specific users that you want to sync. For now, click Enable high frequency syncing for this directory and click Sync Now.



    You should see 31 users and 1 group synced. If not, investigate this before proceeding.



32. Navigate to Users > Users and verify that you have 31 users listed and that their username and email address match:



At this point, all the demo users have been synced from the on-prem AD into Duo. Next, you will provision these users from Duo to Webex. Some of these users already exist on Webex as they were provisioned through some other process. Integrating Duo with Webex for provisioning will allow future changes for these existing users to be reflected on Webex. Also, any new users added to the Lab Users group will be automatically provisioned to Webex.

Sync Users from Duo to Webex

To facilitate user provisioning to Webex, you will utilize the SCIM 2.0 API endpoints available in Webex. With other connectors, this required pulling an API token with the appropriate scopes. However, Duo has a connector that is much easier to configure.

1. On the Duo Admin portal, navigate to Applications > Applications

2. Click Add application and then click + Add for Cisco Webex (with Control Hub)





3. We will not be configuring Single Sign-On yet, so click the Provisioning tab. Select the Cloud Connection authentication mode, then select Add new connection > Continue.



   A new tab will open requiring you to log into Webex with your administrator account. The URL used for this tab allows Duo to acquire an OAuth access token with the necessary scopes for user provisioning to Webex. A refresh token is also provided so that the integration should never need reauthorization (unless it is paused for an extended period).

4. Authenticate with cholland@cbXXX.dc-YY.com // dCloudZZZZ!



5. After authenticating, you will be advised of the scopes that Duo is requesting.



6. Click Accept and you will be redirected back to Duo with an indication that the connection from Duo to Webex has been established:



   Notice that you can see the org name here (in case you have multiple Webex applications in your Duo org. You are also given the name of the administrator that authorized the connection.

   Finally, notice that there is a Reauthorize button. This would be necessary if Duo's access and refresh tokens expire, which would only happen if the integration were paused for an extended period. If this occurs, clicking Reauthorize would walk you through the same flow you just completed so Duo could acquire new tokens.

7. The default configuration maps the Duo email address to the username in Webex. This is the only required field but not ideal. To add a few commonly used values, click the Edit Mappings button and select:

   displayName
   name.familyName
   name.givenName




8. Click Save Mapping.

9. Next change the Email Address attribute to Username and notice that the default Duo mappings to the newly selected attributes is correct:



10. Finally, to select the users you want to sync, scroll down to the Groups section and select the Lab Users group.



    By default, Duo will sync the members of the Lab Users group and create a Lab Users group on Webex. Any members of this group on Duo will also be members of the newly created Webex group. This is great for automating license and settings assignment on groups of users, however, if you prefer not to sync group objects, you can tick the Exclude group information box.

    For this lab, leave the box unticked so the group object is included in the sync.

11. Click Save and enable and wait about 5-10 seconds, then click the refresh button in the Recent logs section:



    Scroll down and you should see successful user and group provisioning. If you see any errors here, they need to be corrected before proceeding. A common failure point is leaving the Webex username attribute set to Email Address in Duo. This attribute needs to be adjusted so that you are syncing the user's Duo Username to Webex.

12. Once you have validated that there are no provisioning errors, navigate to Control Hub (https://admin.webex.com) and log in with your admin account cholland@cbXXX.dc-YY.com.

13. Select Organization Settings and change Control Hub's idle timeout to No timeout then click Save.



14. Select Groups and you should see your Lab Users group in the Webex groups section.



15. Click Create a group and name the group Messaging and click Next



16. Click Add manually, add the following users, then click Save > Done:

    Anita Perez
    Charles Holland
    Eric Steele
    Kellie Melby
    Ricardo Filice
    Taylor Bard




17. The Members tab for the group should reflect the 6 new members.



You have now configured user/group provisioning from Duo to Webex. Any new users added to the Lab Users group on AD would be automatically provisioned to Webex.

Webex Licensing and Settings Templates

Now that you're synchronizing users and groups into Webex, you can use these groups to manage licensing and settings for your users. Automated license and settings template assignment can be done on a group no matter how it was created (synchronized, locally created in Control Hub, or created via the Groups API or the SCIM 2.0 Groups API endpoint). This automation can be configured before syncing users into Webex, but the more common scenario is an organization where the users are already synced, and the licensing or settings configuration needs to be modified -- that's what you will do in this section.

Webex uses a combination of Organization-based licensing and Group-based licensing:

Organization-based licensing → All users that are synchronized into the organization will be granted these licenses. Typically, this is used to grant all users access to basic features like basic messaging and meetings.

Group-based licensing → Each group can be assigned specific licenses and users who are members of those groups will receive those licenses automatically. Users can be members of multiple groups so each premium feature can be tied to a different group for granular control over license distribution.

When these two features are combined with disabling license preservation, the following will occur:

• All users synced to the org will have access to basic features.

• As users are added to specific groups, they can be assigned licenses for premium features.

• If the user is subsequently removed from a group, any license granted by being a member of that group will be removed.

This is an effective way to automate license management while ensuring that oversubscription does not occur. While this is very powerful, this is not a universal solution. In some scenarios, a subset of users in a specific directory group(s) will need different licenses than other users in those group(s). In these scenarios, license management can be handled by using local Webex groups either manually via Control Hub or programmatically via API.

1. Click Users > Licenses.

2. Click Set up under the Organization-based licenses section.



3. In the Messaging section, you should find that Basic Messaging is already assigned. If it is not, tick the box to select it:



4. Select Calling and ensure that Call on Webex (1:1 call, non-PSTN) is ticked.

5. To ensure that these licenses are assigned to all your users, tick the Existing users box and untick Preserve licenses for existing users. This will ensure that users are only granted licenses for the basic features unless they are granted premium licenses by being a member of specific groups.



6. Take some time to read the prompt so that you understand how disabling Preserve licenses for existing users works. When you are ready, tick the box and click Ok.



7. Click Save. At this point in the lab, users only have access to basic messaging, basic meetings, and Call on Webex. You can verify this by going to the Users page and selecting any user, you should see the following:



   Tip

   It may take a minute to apply to all users so wait a minute and refresh the page if you still see additional licenses. Moving forward, you will assign premium features to users in specific groups.

8. Navigate to Users > Licenses and click Manage in the Group-based licenses section.



9. Select the Messaging group in the Webex groups tab.

10. Click Assignments > Set up.



11. You may be unable to click the Set up button if licenses are still being adjusted from your previous change. If you see this message, you can just wait until the Background tasks running... banner disappears and then refresh the page.



12. Next, you will configure all licenses that should be assigned to members of this group.

    a. Tick Advanced Messaging in the Messaging section.



    b. Select Calling and untick Call on Webex.

    c. Ensure Existing users and Preserve licenses for existing users are both ticked, then click Save at the bottom of the page.



13. You'll automatically return to Messaging > Assignments where you can see your license template assigned to the group.



14. Click Groups in the side panel and click Create a group.

15. Enter Meetings as the group name and click Next.

16. Click Add manually.



17. Type cholland and select cholland@cbXXX.dc-YY.com. Type aperez and select aperez@cbXXX.dc-YY.com:



18. Click Save.

19. Click Assign group resources.

20. Click Set up in the Licenses section.



21. Here you will configure all licenses that should be assigned to members of this group.

    a. Disable all Messaging and Calling licenses and select Webex Meetings Suite in the Meeting section.

    b. Tick Existing users to ensure that these licenses are applied to the two existing members of this group, not just newly added members. Untick Preserve licenses for existing users.



22. Click Save.

23. You'll automatically return to the Meetings > Assignments where you can see your licenses template assigned to the group.



24. To verify that your licenses were successfully applied to Charles Holland and Anita Perez (due to their group membership), click the Members tab and click on cholland@cbXXX.dc-YY.com or aperez@cbXXX.dc-YY.com. On the Summary tab, you should see Advanced Messaging and the Meetings Suite licenses applied due to their membership in the Messaging and Meetings groups. You will also see licensing for the basic Webex features due to the Organization licensing configuration.



25. Lastly, go back to the Users > Licenses page and toggle the Preserve licenses for users joining another group option off. Disabling this option forces Webex to check a user's group membership(s) any time they are added to or removed from any group. Any licenses they should be granted (or no longer have access to) will be adjusted accordingly.

26. Click Remove license preservation to continue.



    Important

    Any license(s) manually applied to a user independent of a group membership change (such as via API or Control Hub) would also be removed when a user's group membership changes.

Here are some of the key takeaways regarding Webex licensing:

• Webex uses a combination of Organization-based licensing and Group-based licensing depending on the organization's configuration.

• If Preserve licenses for users joining another group is enabled, removing a user from a group will not remove the licenses they received when joining that group, so it will not help prevent oversubscription.

• Service licenses are assigned to users regardless of their status. For example, an inactive user still consumes a license. You should remove licenses from any user if they don\'t need the services anymore.

• More information about license management in Control Hub can be found here.

Next, you will explore settings templates.

1. Navigate to Services > Messaging > Templates > Create template.



2. Select Use a predefined template > Teachers > Next.



3. No changes need to be made so set the template name to No Restrictions and click Create template and next.



4. Click the search box and enter Messaging, then select the Messaging group, and click Done.



5. You will be taken back to the Messaging > Templates page for Messaging.

6. Click Create template > Use a predefined template > Students > Next.

7. Leave the template name as Students, disable all of the toggles, and click Create template and next.



8. Search for and select the Meetings group, then click Done.



9. You will be taken back to the settings template page for Messaging. Notice that there are now two templates and the rank for these templates can be modified by clicking Rank.

   Settings templates allow you to configure settings for a large group of users very quickly. These templates allow application of pre-defined settings to users and they can must be given a rank.

   If a user is a member of two groups and both groups have different settings templates for the same product (Messaging, Meetings, or Calling), then the template with the higher rank is applied to the user. For reference, the highest rank is 1.



10. Select Groups > Messaging > Assignments and notice that the No Restrictions settings template has been applied to the group.



11. Select Users > Charles Holland and notice that he is a member of three groups -- two of which have a messaging settings template applied.



12. Click the Messaging tab and notice that Charles' messaging settings are coming from the No Restrictions template with all toggles enabled. Because the No Restrictions template has a higher rank than the Students template, it was applied to Charles Holland.


    Using groups to automatically apply settings and licenses to users when they are provisioned is a powerful feature that greatly reduces administrative overhead in large environments.

Configuring Duo to Use Active Directory for User Authentication

To summarize your progress thus far:

• You've synced your on-prem AD users and groups to Duo.

• Any changes made to these users and groups on AD will sync to Duo.

• The Duo catalog application is provisioning the selected users and groups to Webex via SCIM 2.

• You've learned the basics of license and settings templates to help minimize administrative overhead after provisioning users.

As Duo is configured right now, it will attempt to authenticate users locally. This will not work as none of the users have credentials in Duo. To work around this, you will configure Duo to authenticate users via the Duo Authentication Proxy. This allows AD to be leveraged for authentication so all users can log in with their existing credentials.

1. Open your tab to the Duo admin portal or navigate to https://admin-demodemo.duosecurity.com and log in with your admin account, cholland@cbXXX.dc-YY.com

2. Click Applications > SSO Settings



3. Select External Authentication Sources > Add Source.



4. Click Add Active Directory, tick the box regarding the privacy statement, then click Configure Active Directory.



5. Click Add Authentication Proxy



6. Scroll down and ensure that you have Windows selected and copy the [sso] section in Step 1.2



7. Step 1.1 in Duo provides the location of the authproxy.cfg file where this section needs to be added, however, the Duo Authentication Proxy Manager should still be running and in your taskbar so open the window and paste the [sso] section at the end of your config.



8. Once you have added this section to your config, click the Windows button, enter cmd and launch Command Prompt.



9. Back in the Duo admin portal, copy the text in step 2.



10. Paste this text into the command prompt and ensure that the proxy service is restarted successfully.



11. Your auth proxy is now connected to the cloud. Open the Duo Authentication Proxy Manager window.

12. Click Validate, ensure there are no errors, and then click Save.

    Important

    Note: If you attempt to do the Validate/Save before running the command above, you will see this error:

13. Finally, as the program instructs -- click Restart Service.



14. Back in the Duo Admin panel, click the Run test button and verify that the status changes to Connected to Duo.



15. Scroll back to the top of this page and click Active Directory Configuration.



16. Scroll down and update the Active Directory server configuration section:

    Domain controller(s): ad1.dcloud.cisco.com
    Port: 389
    Base DNs: DC=dcloud,DC=cisco,DC=com
    Authentication type: Integrated
    Transport Type: Clear - unencrypted



17. Set the Email and Duo username attribute to userprincipalname and set Username normalization to None



18. Scroll down and click Save and enable.



19. After saving, you will be taken back to the External Authentication Sources tab where the Active Directory source you just configured will be Enabled. You will also see a notification that you must configure a permitted domain to allow for authentication via AD.

    Tip

    To provide some clarity on the current state of the environment -- previously you configured the Duo Authentication Proxy to sync users from the on-prem AD server to Duo. You have now configured the proxy to receive authentication requests from Duo when users attempt to log in, validate their credentials with AD, and send the result back to Duo.

    At this stage, Duo will not leverage the proxy for authentication because it authenticates users locally, by default. Before you can use the proxy, you must verify your dCloud domain in Duo so that you can route authentication to the proxy.

20. To proceed, click Add permitted domains.



21. Scroll down and click Add email domain in the Permitted Domains section.



22. Enter your pod domain on this page (cbXXX.dc-YY.com) and click Add.



23. After adding the domain, note the Status column. If the status is Verified, skip to step 28. If the status is Unverified, you will need to verify it manually, so click Copy next to the verification code.



24. Next, open the home page in your browser and select Identity and Misc. Links > DNS Verification.



25. Click Load session.xml and navigate to C:\dcloud to find the session.xml file, then click Open.



26. Notice that the boxes will be filled in from the XML file. Paste the verification code copied in previous step into the Value field Click Submit.



27. Back on the Duo Admin panel, click Verify.



    If you receive an Unable to verify error, the TXT record is not present on the DNS server yet -- wait another minute and try again.

    Do not proceed until the domain is Verified.



28. After verifying the domain, scroll up and click the Routing Rules tab and change the Default rule to the Active Directory authentication source then click Save.



Now, any user that Duo attempts to log in to an application protected by Duo will be authenticated in the background by Active Directory via the authentication proxy. Administrators can configure SSO routing rules in Duo to authenticate users via different sources based on specific criteria:

• Duo application being accessed

• Domain of user's email address

• User's network (individual address, address range, or CIDR block)

Routing rules are not needed for this lab.

Single Sign-On with Webex and Duo (SAML and OIDC)

The next section walks you through enabling SSO and explains some of the differences between SAML and OpenID Connect. Duo supports both SAML and OIDC, so that will allow you to configure two separate IdPs on Webex using the same Duo tenant. Webex supports the use of multiple IdPs which allows you to route users to a specific identity provider based on the domain of their email address or their group membership in Webex. You will configure two separate applications in Duo (one SAML, and one OIDC) both authenticating users for the same Webex org to simulate two different identity providers.

The next section will require multiple logins to test various aspects of SSO on Webex. If you receive an error at any point during your testing, try using a new browser or closing ALL private/incognito windows to ensure you're using a fresh session with no cached logins.

Duo SSO Setup (SAML)

In this section, you will learn how to configure SSO for Webex using Duo as the Identity Provider (IdP). This integration will utilize SAML.

At this point in the lab guide, you have configured the Duo Authentication Proxy to synchronize users from AD to Duo and to authenticate user credentials for Duo. Now you can proceed with configuring SSO on Webex.

1. Log in to Control Hub (https://admin.webex.com) using cholland@cbXXX.dc-YY.com

2. Navigate to Security & Privacy and select the Authentication tab then click Activate SSO.



3. Select SAML and click Next.



4. Select the Self-signed by Cisco certificate option and click Download metadata and click Next.

   a. Leave this tab open on Step 3: Configure IdP metadata -- you will come back to this page after performing some changes in Duo.



5. Next, open your Duo Admin panel tab or navigate to https://admin-demodemo.duosecurity.com and log in with your admin account, cholland@cbXXX.dc-YY.com

6. Navigate to Applications > Applications and select Cisco Webex (with Control Hub) - Single Sign-On.



7. On the Single Sign-On tab:

   a. Rename the application Cisco Webex (with Control Hub) -- SAML+SCIM.

   b. In the User access section, select Enable for all users.

   c. Click Download XML to get a copy of the Duo metadata.

   d. In the Service Provider section, click browse and select the idb-meta-...-SP.xml file that you downloaded from Webex in step 4.

   e. Tick the Custom Attribute box and enter userprincipalname to ensure the correct value is returned from AD to Duo.



8. Scroll to the bottom of the page and click Save.

9. After you save the changes, scroll down and select Edit Global Policy.

10. Click **Dismiss if you receive the popup regarding the new policy editor.



11. Click Authenication policy and select Skip MFA then click Save.



12. Go back to your Control Hub tab and on Step 3: Configure IdP metadata:

    a. Select Upload your IdP's metadata

    b. Select Less secure

    c. Click Browse and select the metadata file you downloaded from Duo.



13. Click Next.

    Tip

    Note that you have the option to enable Just-In-Time (JIT) provisioning at this point to allow Webex to create users if they have a valid assertion from your IdP, but they do not exist in Webex. You will not be configuring Just-In-Time user provisioning in this lab but feel free to click Show optional attributes to see which attributes are available, then click Next.



14. Click Copy URL to clipboard and open a new incognito tab in Chrome (Ctrl+Shift+N) or Firefox (Ctrl+Shift+P).



15. Paste the URL in the private window and you will be prompted to sign in to Duo. You can use cholland@cbXXX.dc-YY.com.

16. When prompted for the password, you will need to use the password stored in AD (dCloud123!).

17. You should see a Single Sign-on succeeded message.



18. At this point, you can close the private window and go back to SSO test page. Click Next and select Successful test, then click Activate.



You now have a working SSO configuration with Duo using SAML. The next step is creating a second SSO integration with Duo that uses OpenID Connect so that you can see the configuration differences.

Duo SSO Setup (OIDC)

OIDC is an identity layer that is added to the OAuth 2.0 protocol. One of the advantages of OIDC compared to SAML is that certificates are no longer needed to establish a trust relationship between the client and IdP. OIDC utilizes a client ID and client secret generated during setup to establish trust between the two entities. This translates into less administrative overhead from an initial configuration perspective (no metadata file exchange) along with lower risk of user impact (such as logins failing because the SP or IdP certificate was renewed or expired, and metadata was not properly re-exchanged).

1. Start by navigating to https://admin-demodemo.duosecurity.com.

2. Navigate to Applications > Application Catalog and search for Generic OIDC Relying Party then click Add.

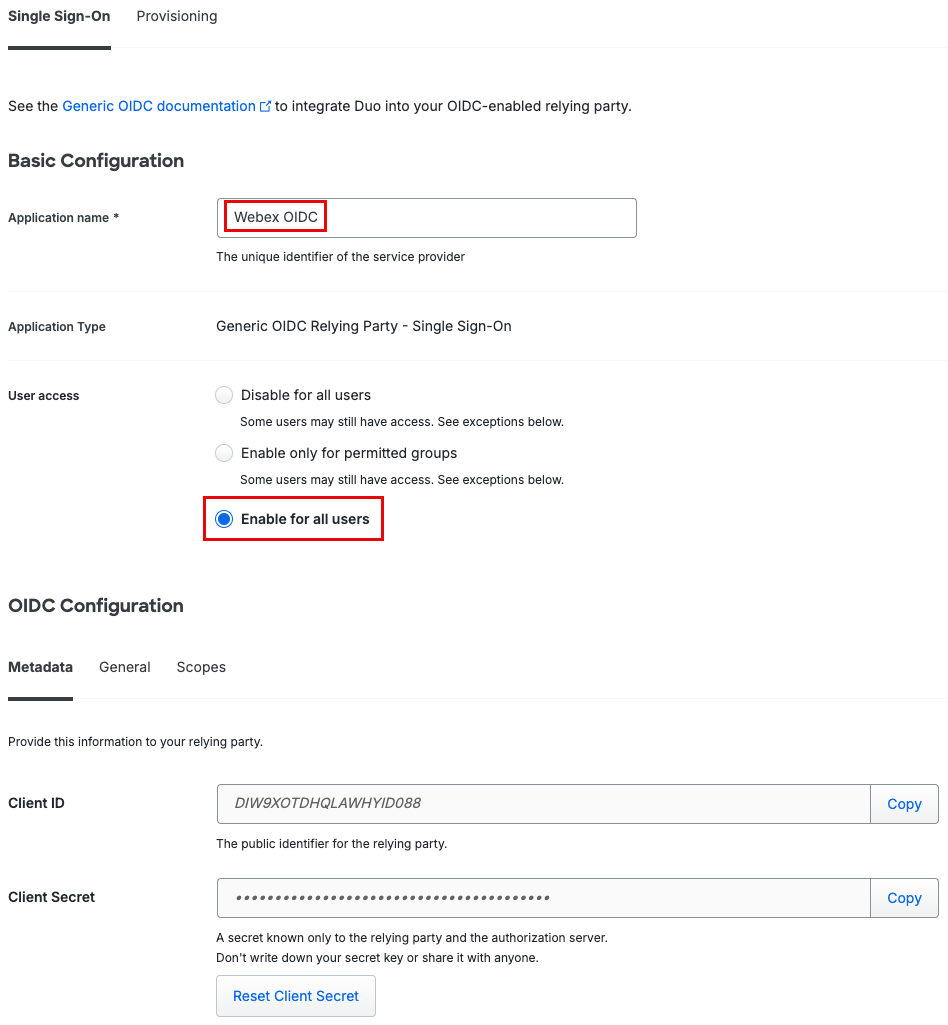

3. Update the configuration:

   Name: Webex OIDC
   User Access: Enable for all users

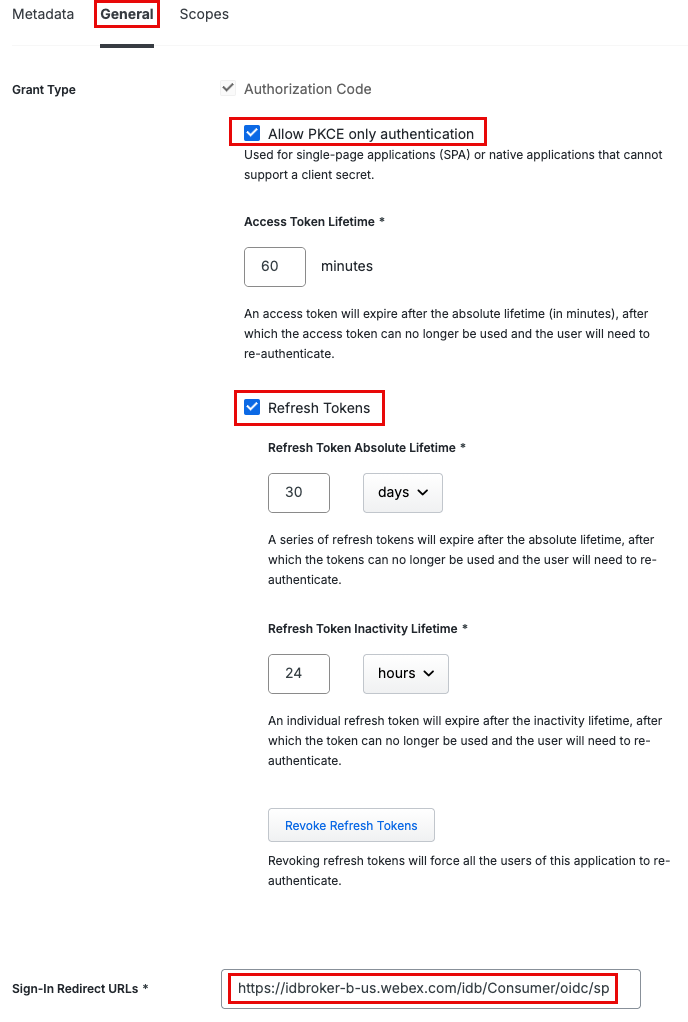

   Allow PKCE only authentication: Enabled
   Refresh Tokens: Enabled
   Sign-In Redirect URLs: https://idbroker-b-us.webex.com/idb/Consumer/oidc/sp

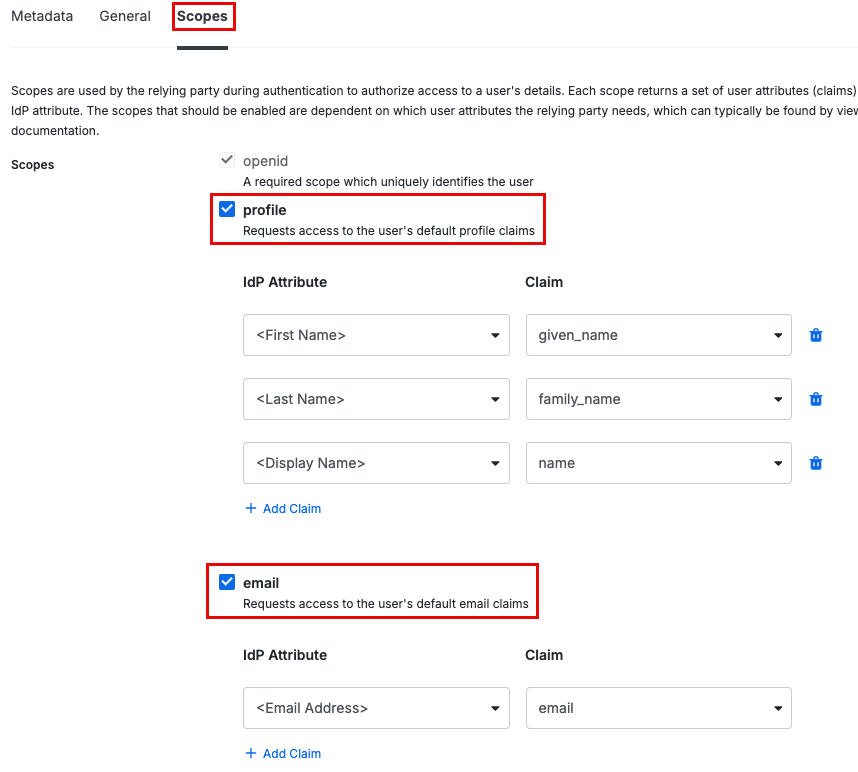

   Scopes: Enable profile and email



4. Since you have already modified the global policy to disable the 2FA requirement, scroll to the bottom of the page and click Save.

5. Leave this tab open and switch to your https://admin.webex.com tab and log back in if needed.

6. Navigate to Security > Authentication > Add an IdP.



7. Select OpenID Connect and click Next.



8. You will need to fill in a few required boxes:

   a. Name → Duo_OIDC

   b. Client ID and Client Secret → You can find these in the Metadata section in Duo - Click the Copy buttons and paste this information into Webex.



   When pasting the Client ID and secret into Webex, notice that the Webex redirect URL is provided here. This is the same for all Webex orgs and matches what you pasted into Duo in step 3.

   c. Scopes

   • This lets you define what optional information the Relying party can request. The email scope is required since that's how users are identified in Webex and openid is required because it indicates that Webex will request an OIDC ID token.

   • Disable address, phone, and profile as you do not need them for this lab.

   d. Allow Proof Key for Code Exchange (PKCE) Configuration

   • Toggle this on to improve the security of your authentication process. More detail will be provided about how PKCE works and its purpose after you've finished configuring the OIDC IdP.

   e. Discovery URL

   • This allows the relying party to request the capabilities and endpoint URLs from the OpenID Provider (IdP).

   • This will be specific to your Duo tenant and can be found on your Webex OIDC application page in Duo. Copy and paste this value into Webex.



9. Verify that you have filled in all the information before proceeding:



   Notice that you can enable JIT provisioning/update with OpenID Connect as you could with SAML. You will not be using it in this lab, but it is an option for your production environment.

10. Once you have provided the required information, click Next. You need to perform another SSO test to verify that your configuration is correct. Click Copy URL to clipboard and open a new incognito tab in Chrome (Ctrl+Shift+N) or Firefox (Ctrl+Shift+P).



11. Paste the URL in the private window and you will be prompted to sign in to Duo. You can use cholland@cbXXX.dc-YY.com // dCloud123!.

12. Once you see Single Sign-on succeeded, you can close the incognito tab and click Next.

    a. If you receive Single Sign On Failed when performing your SSO test, a configuration error has occurred. A common issue is pasting a URL, client ID, or client secret with a space appended to the end. Be sure to check all your values to make sure there is no trailing space.



13. Since this is your second IdP, you will be prompted to configure a routing rule. This allows Webex to have criteria that dictate to which IdP a user will be routed during authentication.

14. On the Set up a routing rule page, enter a rule name of GroupRule, select a routing type of groups, and search for and select the Meetings group, then click Add.



    Tip

    You have the option of allowing MFA in Webex for any user authenticating through this IdP. This can be a great option to increase security for Webex logins without needing to make changes on the IdP. For now, leave the option on Keep the current MFA status which will use the global config in Organization Settings.

15. Back on the Single sign-on & multiple identity providers page, you'll see your SAML IdP and your new OIDC IdP. In this lab, both are using the same Duo tenant, however, that is just for demonstration purposes. You can have different Duo tenants, or completely different identity platforms configured for SSO.



    Important

    If at any point you become locked out of your org, you can access https://admin.webex.com/manage-sso using cholland@cbXXX.dc-YY.com to disable SSO. You will need to open Outlook on WKST1 to retrieve a code that will be emailed to cholland.

OpenID Connect -- Proof Key for Code Exchange (PKCE)

When enabling SSO with OIDC, you enabled the option to allow PKCE:

Unlike SAML, OIDC has different login flows which make it very flexible and suitable for many deployment types. The most common OAuth flows are listed below, in order of least secure to most secure:

1. Implicit Flow (deprecated in OAuth 2.1 -- included here for awareness)

2. Device Authorization Flow

3. Authorization Code Flow

4. Authorization Code Flow with PKCE

By default, the Webex application uses Authorization Code Flow when authenticating users. In this model, the user never directly sees access or refresh tokens. Instead, the Identity Provider (IdP) issues a short-lived authorization code, which the Webex application forwards to the Webex cloud. Webex then exchanges that code for access, refresh, and ID tokens over a secure backchannel using its client credentials. This ensures that tokens are never exposed in the browser or during redirects, reducing the risk of interception.

Authorization Code Flow with PKCE is an enhancement designed for public clients like the Webex desktop and mobile apps, which cannot safely store a client secret. Instead of a static secret, the app generates a one-time code verifier and sends a hashed version of it (the code challenge) during the initial request. When redeeming the authorization code, the app must present the original verifier. If an attacker were to intercept the authorization code, they would not be able to exchange it for tokens without also having the verifier.

This is why PKCE is recommended for any deployment where the client is not a secure backend server that can be trusted to store sensitive secrets --- such as the Webex application. Refer to the diagram below for a visualization of the login process when PKCE is enabled.

For more technical information, refer to the RFC for Auth Code Flow w/ PKCE: https://datatracker.ietf.org/doc/html/rfc7636

Multiple Identity Providers with Webex

Multiple IdPs is a powerful tool that allows administrators to route users to a different IdP depending on either their group or their domain. This feature also allows you to use Webex Common Identity (CI) as an IdP which means users will use local Webex authentication rather than being routed to a third-party IdP. Some common use-cases for this feature include:

• Mergers and acquisitions

• Education or government institutions

• Partners using Webex as a consumer service

• Global enterprises with separate IT organizations

While powerful, this feature should only be used as a last resort. A rogue administrator could configure Webex to route users to an IdP that may not be monitored by an organization's security admins. If this IdP looked identical to the one with which users were accustomed to authenticating, users may not be aware that they are giving their credentials to a bad actor. In a different scenario, an IdP could be configured with a less strict password policy than is required by the security team.

Due to the inherent risk of a feature like this, new alerts have been created to notify administrators when key changes are made. These alerts can be found at Security & Privacy > Audit > Admin activities:

• When IdP is added to Webex, an alert is generated.

• When an IdP is deleted, an alert is generated.

• When a routing rule is created, an alert is generated.

• When the routing rule order is modified, an alert is generated.

These alerts provide notice if an administrator makes changes to the SSO configuration. In addition, you can also enable logging of authentication events by navigating to Security > Audit > Authentication Activities > Generate Access and enable Allow user authentication data. Refer to the screenshot below for sample data with this toggle enabled.

If there is an issue with SSO at any point, a full administrator can use https://admin.webex.com/manage-sso to disable SSO or update the IdP metadata.

At this point in the lab, you have already configured two IdPs, Duo (SAML) and Duo (OIDC). Since you configured the SAML integration first, it is configured as your default IdP. This means that any users not matching the GroupRule routing rule you created will be sent to your SAML integration. Note that in this lab, we're using the same Duo tenant for both IdPs but in a production environment, these can be separate Duo tenants, or separate providers such as Entra ID, PingFederate, AD FS, ForgeRock, Shibboleth, etc.

In the next section, you will configure local Webex authentication for a group of users and set up appropriate routing rules so that users are authenticated locally with Webex rather than routed to an external IdP.

1. Return to Control Hub and navigate to the Groups page in the Management section of the side panel.

2. In the Webex groups section, click the Create a group button:



3. Enter WxLocalAuth as the group name and click Next.

4. Select Add manually, then search for chall and tbard and select both users to add them to the group.



5. Click Save then Done.

6. Navigate to Security & Privacy > Authentication > Identity Provider > Add an IdP

7. Select Webex, then click Next.



8. Take a minute to read the disclaimer providing more information about utilizing local Webex authentication.

9. Tick the box for I've read and understood how Webex IdP works. And click Next.

10. On the Set up a routing rule page, add the following rule:

    a. Rule Name: WxLocalAuthRule

    b. Routing Type: groups

    c. Selected groups: WxLocalAuth



11. Click Add and you will be sent back to the Identity Provider tab with a new Webex entry:

12. Click the Routing Rules tab and move the WxLocalAuthRule to the top of the list by clicking the handle on the left side of the box and dragging the rule up.



13. A few key notes about routing rules:

    a. Any time a user logs in to an account in this organization, Webex will check their uid (email address) against these rules. These rules are checked in order of priority and the user will be routed based on the first rule they match.

    b. Due to this logic, rules should be placed in a most specific > least specific order.

    c. Domain rules require that the domain(s) be verified or claimed, or you will not be able to add them to the rule.

    d. Domain rules can consist of multiple domains.

    e. Group rules can specify either locally created Webex groups or synchronized groups.

    f. Groups rules can consist of multiple groups.

    g. In this scenario, the two users that you added to the WxLocalAuth group (chall and tbard) will match Rule #1 and they will route to the Webex Identity Broker for authentication. No other users will match that rule, so they would then be checked against Rule #2. If they don't match that rule, they would match the Default Rule, so they would be redirected to Duo for authentication via the SAML application.

    h. The default rule does not have a filter so it will match all users. It is likely that some users will match multiple rules (for example, they may match two different group rules or a group and domain rule). Remember, however, that Webex checks the user against rules in order and the user will be routed as soon as they match a rule -- they will not be checked against lower priority rules.

14. Open a new incognito or private window in your browser and navigate to https://web.webex.com. Click Sign in and enter tbard@cbXXX.dc-YY.com. and click next. You should be routed to Webex rather than Duo for authentication. This means that your rule is working as expected -- no need to log in.



15. Next, close your private/incognito window to clear any cached information, then open a new private/incognito window.

16. Navigate to https://web.webex.com and enter aperez@cbXXX.dc-YY.com (ensuring that you update the XXX and YY with your session #s).

    a. This user's group membership will be checked to see if she matches the criteria for the WxLocalAuthRule. Since Anita Perez is not in the WxLocalAuth group, she will not match the rule.

    b. Next, her group membership will be checked against GroupRule. She is in the selected group, so you should be routed to Duo_OIDC for authentication.

    c. In a few steps, you will check the Authentication log in Duo to verify that users are being routed to the SAML and OIDC integrations as expected so be sure to complete a successful login with aperez@cbXXX.dc-YY.com.

17. Finally, close your private/incognito window to clear any cached information, then open a new private/incognito window.

18. Navigate to https://web.webex.com and log in with jdock@cbXXX.dc-YY.com.

19. Now that you've successfully authenticated to both the OIDC application (aperez) and SAML application (jdock), open the Duo admin portal (https://admin-demodemo.duosecurity.com).

20. Navigate to Reports > Authentication Log.



21. Verify that jdock and aperez authenticated to the correct applications:



It is very common to attempt this test in a browser that has a cached login for a different user (such as jdock or aperez). If you receive an error during testing, try using a new browser or try to close ALL private/incognito windows to ensure you're using a fresh session with no cached logins.

You now have a working multiple IdP configuration. This configuration can be much more complex -- this scenario was designed to provide a high-level introduction and overview of the feature.

Enable Multi-Factor Authentication (MFA) using Duo

NOTE: Enabling MFA on Webex through Control Hub requires Duo Authenticator. This can only be installed on Android or iOS. If you want to proceed with this section but you do not want to install the Authenticator on your mobile device, please raise your hand and let a proctor know and we can use one of our lab devices for you. If you'd rather not go through this section, feel free to skip to the next module as the rest of the guide is not contingent on this feature.

Webex has native support for MFA using the Duo Authenticator. Administrators are given 3 different options when enabling this feature in Control Hub:

• Allow MFA per user (users in the org have the option to enable MFA)

• Mandatory MFA when accessing Control Hub

• Mandatory MFA for the organization (MFA required when accessing any Webex service).

For this lab, you will enable MFA for anyone accessing Control Hub.

1. Navigate to https://admin.webex.com and log in with cholland@cbXXX.dc-YY.com.

2. Select Organization Settings and search for Multi-factor Authentication.

3. Select Allow Multi-Factor Authentication > Require mandatory MFA for selected applications > Allow MFA.



4. Click Save.

5. Next, open an incognito or private window in your browser. Ensure that there are no other incognito windows open because any Webex sessions from those window(s) can cause issues.

6. Navigate to https://admin.webex.com and log in with cholland@cbXXX.dc-YY.com.

7. You will go through the SSO login flow with Duo but since you are now forcing MFA on Webex, you will be prompted to set up Duo Authenticator after you authenticate:



8. Click Next.

9. You will be presented with a QR code. Launch the Duo Authenticator on your mobile device and tap Add (or raise your hand and request to use a proctor's device).

10. Once the code has been scanned into the Duo Authenticator app, click Next.

11. You will be asked to enter the 6-digit Time-based One-Time Password (TOTP) after which you will be redirected to Control Hub.



12. After the code is successfully confirmed, close the incognito/private window and you should still be logged into Control Hub in your other browser session.

13. Toggle Allow Multi-Factor Authentication off and click Save.



This section demonstrates that even when SSO is enabled, the collaboration administrator can still force an increased level of security for Webex. This may seem unnecessary if the IdP already requires MFA, but some organizations don't force MFA and collaboration administrators can still choose to utilize this feature to increase security on the Webex platform.

This concludes the module on Webex Identity. Before proceeding to the next module, close your remote session to AD1 since modules 2 and 3 both require usage of Workstations 1-3.

END of MODULE 1

Continue with either Module 2 or Module 3:

• Module 1: Webex Identity (current)
• Module 2: Zero Trust Encryption
• Module 3: Webex Compliance
• Conclusion
